4‘x8‘ double sided outdoor LED sign (model UP-PH6.35-BDXL4) with 6.35mm pixel pitch, 10,000+ nits sunlight-readable brightness, IP66 waterproofing, ETL & FCC certified, US patent design. Complete 4x8 EMC digital billboard with 4G controller — perfect for churches, schools, shopfronts, business signage, municipal and park displays. Factory-direct DDP pricing, 5-year warranty.
Product details

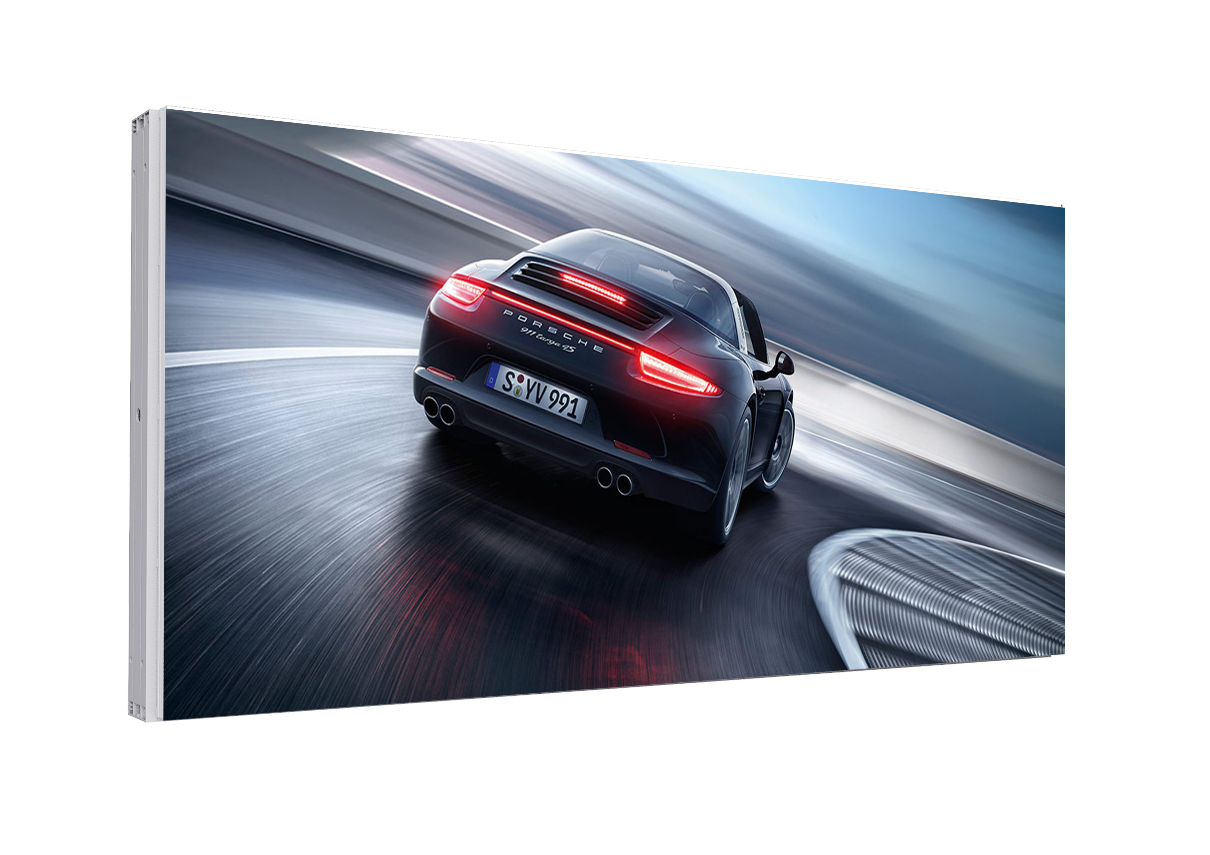

4'x8' Double Sided Outdoor LED Sign — 6.35mm EMC Digital Billboard
Sunlight-readable 10,000+ nits · IP66 all-weather · ETL & FCC certified · US patent design · 4G controller included

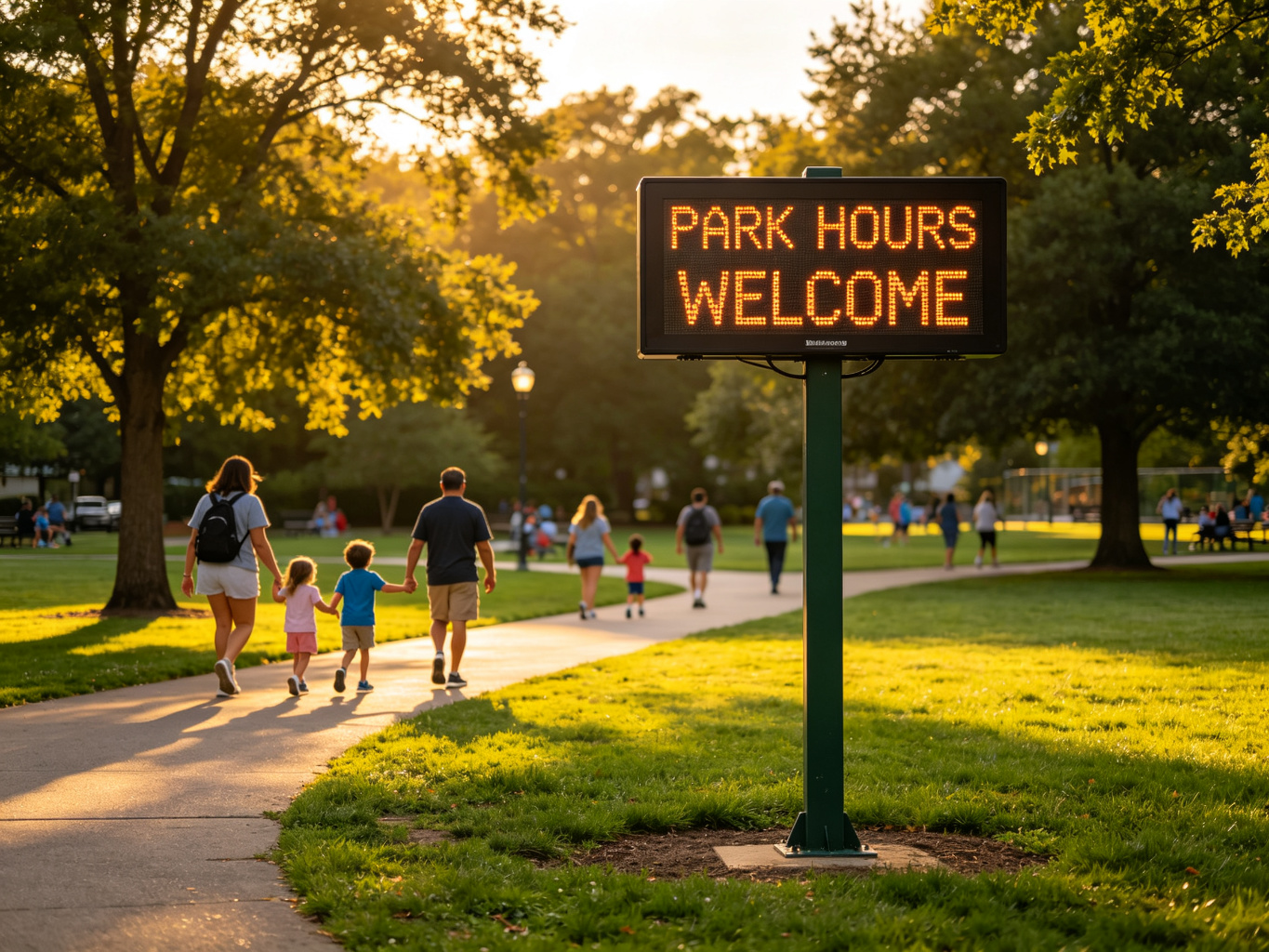

The 4'x8' double-sided outdoor LED sign (model UP-PH6.35-BDXL4) is a complete electronic message center (EMC) and outdoor digital billboard built on ONLY LED’s patented 1′×2′ imperial modular grid. With a fine 6.35mm pixel pitch, 10,000+ nits of sunlight-readable brightness, IP66 front-and-back waterproofing and a 4G cloud controller, it is engineered for churches, schools, retail shopfronts, business signage, municipal agencies, parks and DOOH operators across North America.
4'x8' Outdoor LED Sign — At a Glance
Why This 4x8 Outdoor LED Sign Beats the Alternatives
Most US-market 4′x8′ double-sided LED signs ship with 12mm or 6mm pixels. The 6.35mm pixel pitch of the UP-PH6.35-BDXL4 delivers 24,800 pixels per square meter — roughly 3.6× the pixel density of a 12mm EMC sign and a visible jump in sharpness over 6mm panels — while keeping content crisp from typical viewing distances of 20–25 ft. Combined with ≥10,000 nits (brighter than most 9,000-nit competitors), IP66 dust/rain protection and a ≥3,000Hz flicker-free refresh rate, this 4x8 outdoor LED sign is built to win roadside attention in direct sunlight.
Complete Electronic Message Center (EMC) — Hardware Included
This is a ready-to-run LED message center, not just panels. The package ships with an OLB-N30 4G LED controller (Novastar TB-30 based) featuring Wi-Fi, LAN, USB and 4G-LTE connectivity, plus a built-in light sensor for automatic brightness adjustment. Schedule content, switch campaigns and monitor your sign remotely — the same cloud-first workflow used by leading EMC providers, with no extra subscription locked in.
Front Service Design
Tool-less front access keeps maintenance fast and low-cost, even on double-sided installations.
Common-Cathode, Up to 30% Less Power
Energy-saving driver architecture cuts operating bills and keeps the cabinet cooler.
ETL, FCC, CE & RoHS Certified
North American safety and EMC compliance for simplified AHJ permitting and insurance.
US Patent US-11871528-B1
Patented modular design protects your investment against copycats.
All-Aluminum Cabinets
Even heat dissipation, uniform color and a longer service life in outdoor climates.
Zero Conversion Math
True imperial 2′×4′ cabinets on a 1′×2′ grid — installers work in feet, not millimeters.
Full Product Specification — UP-PH6.35-BDXL4
Display & Panel Specifications
| Parameter | Specification |
|---|---|
| Model Number | UP-PH6.35-BDXL4 (U-PRO-L Series) |
| Display Size | 4′H × 8′W (64 sq ft), double sided |
| Panel Size | 2′ × 4′ (609.6 × 1219.2 mm) |
| Panel Quantity | 8 panels (2 × 2 × 2 faces) |
| Pixel Pitch | 6.35 mm |
| LED Type | SMD2727 (3-in-1 SMD) |
| Pixel Density | 24,800 pixels/m² |
| Resolution / Panel | 96 × 192 pixels (18,432) |
| Total Resolution / Face | 192 × 384 pixels (73,728) |
| Brightness | ≥ 10,000 nits |
| Refresh Rate | ≥ 3,000 Hz |
| Grey Scale | 65,536 levels (16-bit) |
| Contrast Ratio | ≥ 5,000:1 |
| View Angle H / V | 110° / 90° |
| Frame Rate | ≥ 60 Hz |
| Display Colors | 16.7 Million (True Color) |
| Driving Method | 1/4 Scan Constant Current |
| Brightness Adjustment | Manual 256 levels / Auto 8 grades |
| Panel Weight | 51 lbs (23.5 kg) incl. frame |
Electrical & Environmental
| Parameter | Specification |
|---|---|
| Input Voltage | 100–240V AC, 50/60Hz |
| Max Power Consumption | 4,000 W (total) / 500 W per panel |
| Avg Power Consumption | 1,440 W (total) / 180 W per panel |
| Max Current Draw | 36.4 A (110V AC) |
| Avg Current Draw | 13.1 A (110V AC) |
| Waterproof Rating | IP66 (Front & Back) |
| Working Environment | Outdoor, -30°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| MTBF | ≥ 10,000 hours |
| LED Lifespan | ≥ 100,000 hours |
| Failure Rate | < 0.0001 |
| Control System | Novastar / Colorlight |
| Certifications | ETL, FCC, CE, RoHS, EMC; US Patent US-11871528-B1 |

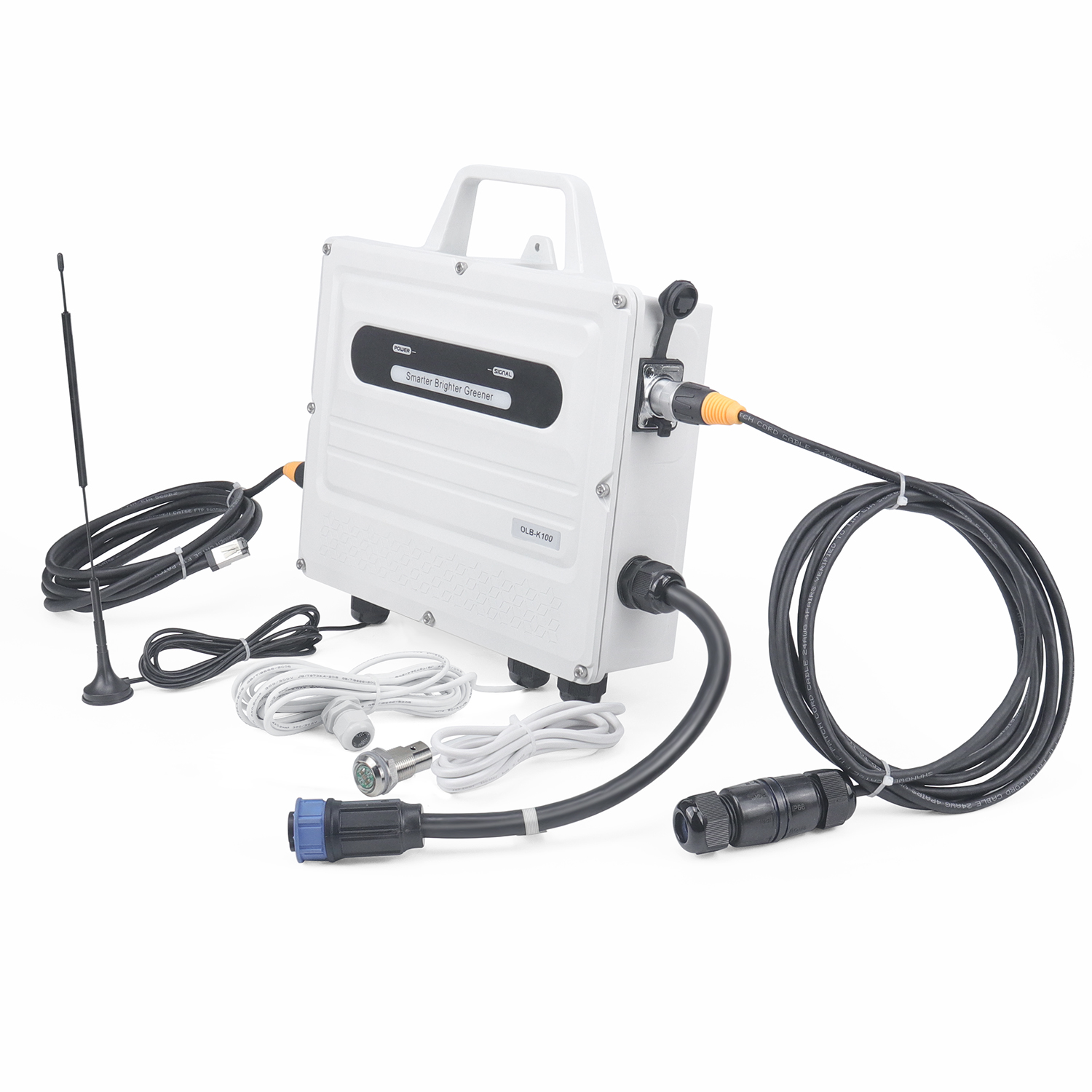

4G LED Controller Included (OLB-N30)
Every 4x8 outdoor LED sign ships with the OLB-N30 controller: 0.65M-pixel load, Novastar TB-30 core with backup, Wi-Fi / LAN / USB / 4G-LTE connectivity and a built-in light sensor for automatic day/night brightness. Manage your LED message center from anywhere.
Certified for North America
Certified by independent labs and ready for US and Canadian installation: ETL Listed (Intertek), FCC, CE, RoHS and EMC certified, plus US Patent US-11871528-B1.
Factory-Direct DDP Pricing
The $12,385 DDP USA complete-system price includes: 8 LED panels (4′×8′ double-sided), the OLB-N30 4G controller, 2 spare 1′×2′ modules, plywood export packaging, and ocean freight from Shenzhen to your US door — duties, customs clearance and local tax included. 40% deposit to confirm, 60% before shipment; 40-day lead time; 5-year manufacturer warranty and lifetime online technical support.
Get Pricing for Your 4'x8' Outdoor LED Sign
Wholesale pricing, sample orders and free technical consultation for sign shops, distributors and integrators.
