1x2ft Aluminium LED screen panel pixel pitch 3.8mm for DOOH
  • 2000
  • 2000

MODEL NUMBERUP-PH3.81-CDS (Common cathode LEDs)Working EnvironmentOutdoorWaterproofIP66InstallationPermanent InstallationPixel pitch3.81mmLED Panel size 1‘*2‘ (12"x24")Body material

Product details

ONLYLED skyline series outdoor 3.81mm pixel pitch super brightness display.IP66 waterproof rating. 1x2ft LED panel dimension is a perfect size for American market. It comes with modular mounting frames for fast assemble and quick services.1x2ft LED panels support front and rear access installations.Wish we can be your trusted supplier in china.

1.Product introduction

. 1' by 2ft, The Perfect size for american market(12inches by 24inches).

. Patent design LED panel, including global patents.

. Suitable for retrofitting conventional back-lite signs into digital signs.

. LED panel made of aluminium materials, good cooling effect, working temperature -40℃ to 60℃.

. No fan panel design, all electronics fully sealed in the LED panel, entire product IP66 rating.

. 1x2ft mounting frames are available for customers choicescustomer can assemble a 4x8ft sign in 30min.

. Support front access and back access installation of LED signs.

. LED panels can be installed in both vertical and horizontal orientations.

. ETL listed LED sign modules by intertek Laboratory. FCC approved.

. Common cathode LED screens, 30% energy saving than common anode LED screens.

. Max brightness 8000cd/m2.

2.Product feature and application

. High definition LED panels widely used for outdoor commercial advertising screens,video-walls and billboards.

. Retrofitting conventional back-lite signs in north-america to digitl signs,size 1x2ft perfectly fit.

Multi- mounting ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.

. Fully sealed LED cabinet,without fans, Ingress protection 67.

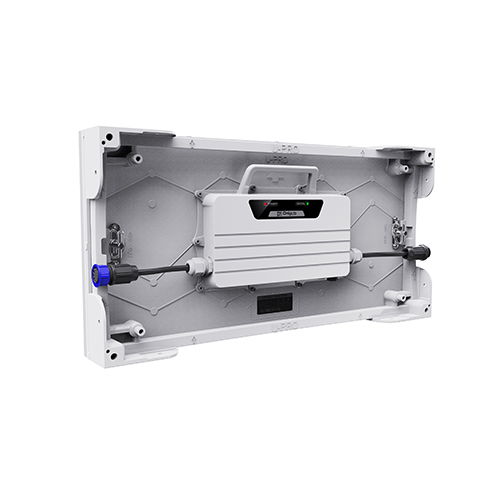

Power and data integrated into one cable and one connector increases functional stability.

Minimal running gears,reduced cables and connector, all parts highly integrated. Ensure our product have high reliability.

. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.

. Support front and back maintenance,Support landscape and portrait installation

.Good heat dissipation, Driving IC stick to aluminium plate,Aluminium LED panel body has really good heat discharging.ensure the entire led panel have uniform temperature thus has uniform brightness,this perfectly solve the color-splotches.

.We provide modular mounting frames for customers choices.Frame made of aluminium and cut by CNC machine, high accuracy ensures seamless splicing.Customer can assemble a led displays with minimal labor and time.

. One uniform size led panel has many pixel pitches for customers choice 3.8mm 6.3mm 7.6mm and 9.5mm.

. Support remote control and monitoring. Push content from cloud server via WIFI internet or 4G.

. Common cathode LEDs, saving up to 30% electricity than conventional LED screens.

3.Product paramters:

MODEL NUMBERUP-PH3.81-CDS (Common cathode   LEDs)
Working   EnvironmentOutdoor
InstallationPermanent Installation
Pixel  pitch3.81mm
LED   Panel size1'*2' (12"x24")
Body   materialDie-casting Aluminum
LED   DiodeSMD1921 3in1 Common cathode LEDs
Density   of pixel68889pixel/
Resolution/panel80pixel*160 pixels
Average power/panel45W
Max power/panel150W
Driving Method1/8  Scan
Panel   weight (kgs)6.5kgs/14.3lbs
Installation   AccessFront Access /Back access
Refresh rate≥3000HZ
viewing angle/horizontal110°
Viewing angle/Vertical90°
Grey scale/display color65536/display 16.7M
frame frequency≥60HZ
Brightness adjustmentManual R.G.B each color   256,automatic 8 grades are adjustable
Control systemColorlight and Novastar
System   Operation PlatformWindows
Malfunction do rate0.0001
AC Input VoltageV   FrequencyHz90~240 VAC  50/60 hz
Earth leakage current0.01mA
working   / Storage temperatureworking -30℃~60    storage -40℃~85
Operating Humidity and Storage HumidityRH10~95
CertificationsETL ,CE ,EMC-A, FCC
Warranty6 years
