SHENZHEN, CHINA — ONLY LED, the 20-year veteran LED display manufacturer, has announced the availability of its 6 x 12 outdoor LED sign (model UP-PH6.35-BDXL6) — a large-format electronic message center (EMC) and outdoor digital signage solution purpose-built for the North American market. Combining 10,000+ nits sunlight-readable brightness, true imperial 6′H × 12′W sizing, and a rugged IP66-rated all-aluminum build, the display targets retail storefronts, DOOH billboards, schools, churches, and sports venues.

Why the 6.35mm Pixel Pitch Wins for Outdoor LED Signs

The 6mm outdoor LED sign category has become the sweet spot for roadside and storefront advertising. At 6.35mm pixel pitch, the display delivers 24,800 pixels per square meter — crisp enough for viewing distances starting around 20–25 ft, while keeping per-sign costs and power demands far below fine-pitch alternatives. With a total resolution of 288 × 576 pixels (165,888 pixels), the 6×12 ft screen renders logos, promotions, and full-motion video with true 16.7-million-color fidelity.

Finding your perfect pixel pitch is easy: ONLY LED’s U-PRO family spans 6.35mm, 7.62mm and 9.52mm outdoor pixel pitches, so sign shops can match resolution, viewing distance and budget. For this 6×12 EMC, 6.35mm delivers the crispest image at typical 20–25 ft viewing distances.

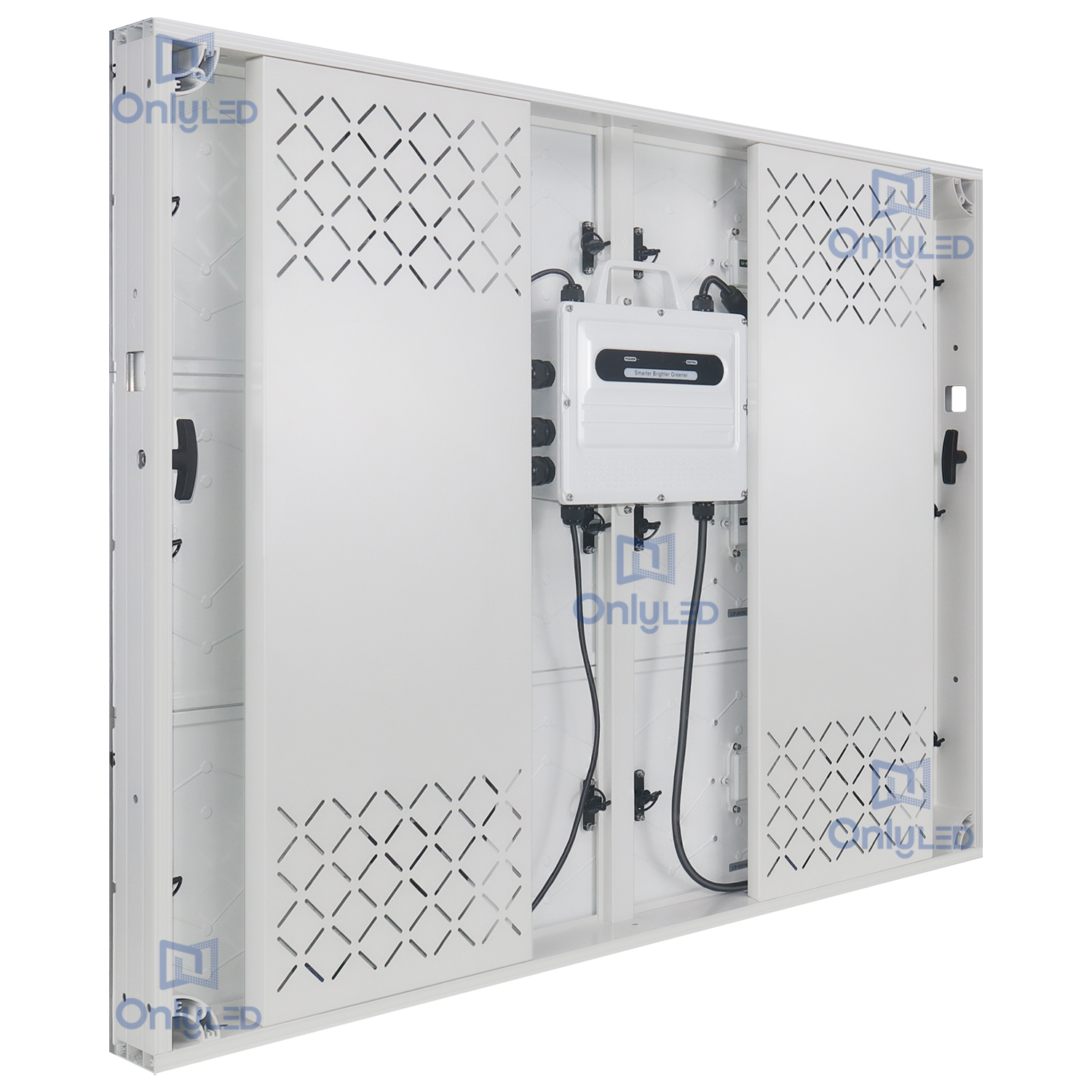

For sign shops upgrading from static billboards, the 6 x 12 outdoor LED sign is built on ONLY LED’s patented 1′×2′ modular grid — the de facto imperial standard for US signage. The 3′×4′ die-cast aluminum cabinets assemble into exact 6′×12′ dimensions with zero metric conversion math, so installers work in familiar feet and inches.

Sunlight-Readable: 10,000+ Nits That Beat Direct Sun

Brightness is the #1 spec for outdoor readability, and the UP-PH6.35-BDXL6 does not compromise: ≥10,000 nits ensures content stays vivid even under midday glare. A ≥3,000Hz refresh rate eliminates flicker in video and camera captures, while 16-bit grayscale (65,536 levels) preserves smooth gradients. Common-cathode driver architecture cuts power consumption by up to 30% compared with conventional common-anode designs — smaller power supplies, lower operating bills, and a 20°C cooler running temperature that extends LED lifespan beyond 100,000 hours.

Built for North America: ETL, FCC & a US Patent

Compliance is a major purchase driver for commercial signage, and this 6x12 outdoor LED display arrives fully certified for the US and Canadian markets:

• ✓ ETL Listed — meets North American safety standards, simplifying AHJ permitting and insurance
• ✓ FCC Certified — electromagnetic compliance for devices sold in the USA
• ✓ CE, RoHS & EMC certified — TÜV-lab tested for global export
• ✓ US Patent US-11871528-B1 — patented design, protected against copycats
• ✓ IP66 front & back — dust-tight, heavy-rain protected, -30°C to +60°C operation

Full Product Specification Sheet — UP-PH6.35-BDXL6

Complete technical specifications for the 6mm 6 x 12 outdoor LED sign:

Display & Panel Specifications

Electrical & Environmental

Who It’s For: 6 x 12 Outdoor LED Sign Applications

• Retail storefronts & auto dealerships — drive foot traffic with dynamic, bright content
• DOOH billboards & commercial advertising — high-visibility roadside impact

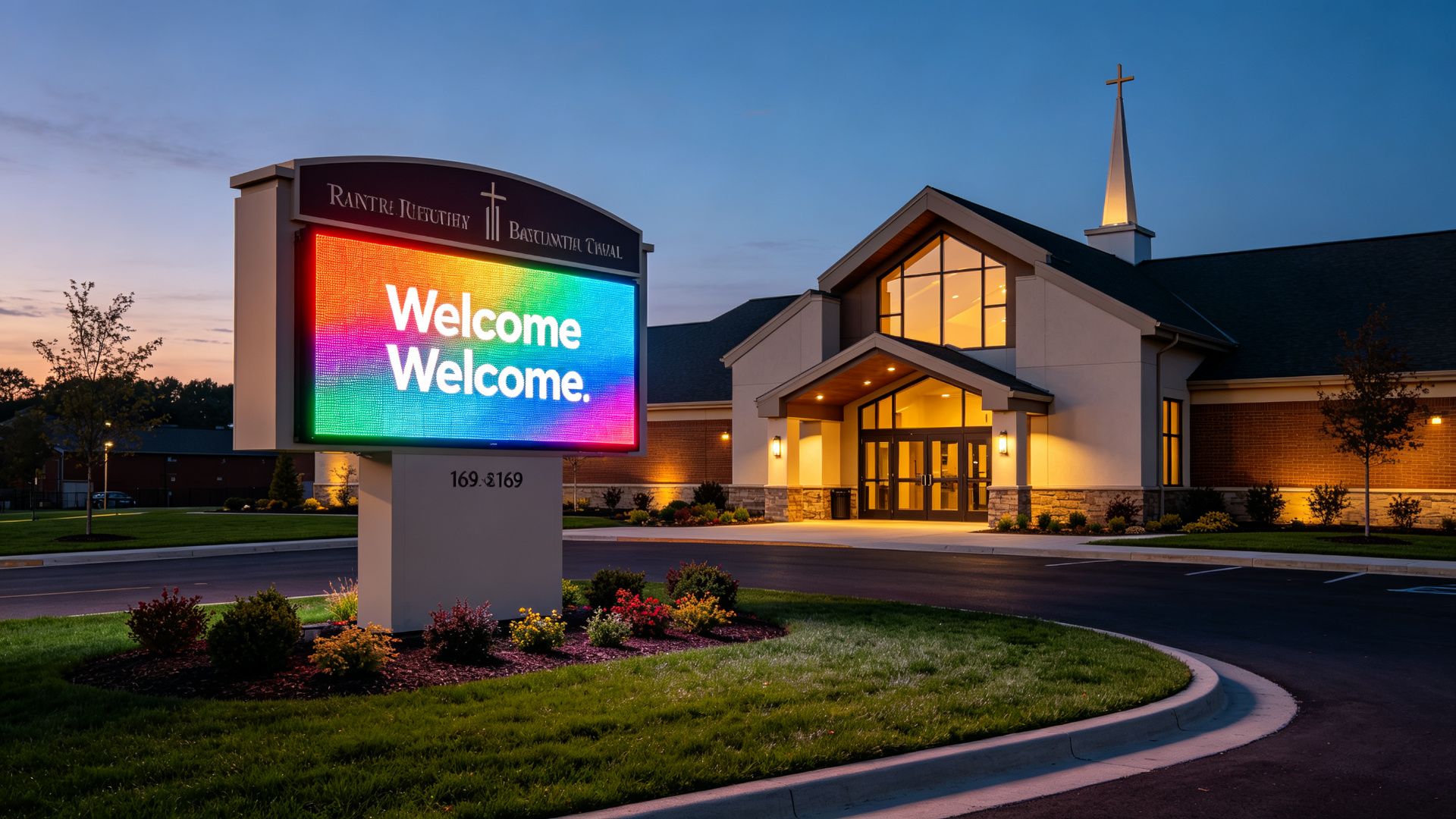

• Schools & churches — permit-ready, low-maintenance messaging
• Sports venues & event venues — scoreboards and sponsor displays
• Transportation hubs — airports and train stations
• Hotels, pharmacies & healthcare — wayfinding and promotions

Backed by 20 Years of LED Manufacturing

Every 6mm 6 x 12 outdoor LED sign ships from ONLY LED’s 8,000+ m² Shenzhen facility after 100% QC testing and a 72-hour continuous burn-in. The package includes a 5-year comprehensive warranty, lifetime online technical support, and a dual-mode Novastar player box with light-sensor auto-brightness. A 10-year spare-parts availability guarantee keeps every installation serviceable long after the warranty period.
