• Double sided 6x12ft Outdoor Digital LED Sign | High-Brightness EMC | ONLY LED DISPLAY
  • Double sided 6x12ft Outdoor Digital LED Sign | High-Brightness EMC | ONLY LED DISPLAY
  • Double sided 6x12ft Outdoor Digital LED Sign | High-Brightness EMC | ONLY LED DISPLAY
  • Double sided 6x12ft Outdoor Digital LED Sign | High-Brightness EMC | ONLY LED DISPLAY
  • Double sided 6x12ft Outdoor Digital LED Sign | High-Brightness EMC | ONLY LED DISPLAY
  • Double sided 6x12ft Outdoor Digital LED Sign | High-Brightness EMC | ONLY LED DISPLAY
Double sided 6x12ft Outdoor Digital LED Sign | High-Brightness EMC | ONLY LED DISPLAY
  • ONLY LED DISPLAY
  • CHINA
  • 1000pcs /month
  • 1000pcs

Buy a 6x12ft outdoor digital LED sign with 10,000 nits brightness, cloud control, and U-PRO-S panels. Ideal for schools, churches, and businesses. ETL & FCC certified.

Product details

6'x12' Double-Sided LED Electronic Message Center (EMC) Sign (Model: UP-PH6.35-CDL6)

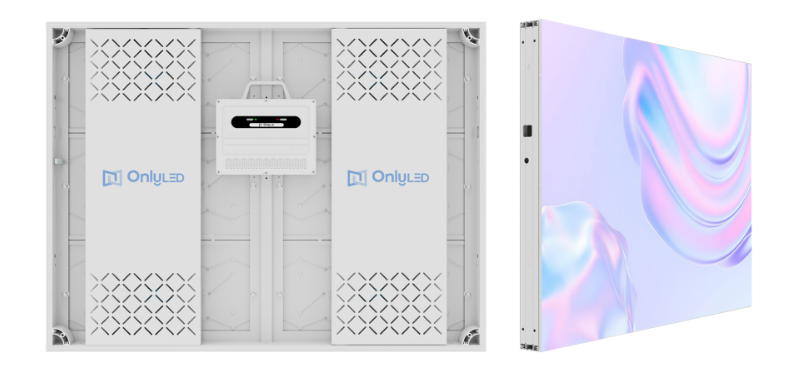

U-RPO-L 2X4FT CABINET.png


Key Features
FeatureDescription
Modular Display Panels & Mounting FramesDesigned for easy assembly and scalable installations
Front Serviceable DesignAllows quick and convenient maintenance from the front
Die-Cast Aluminum HousingStrong, corrosion-resistant, with excellent heat dissipation
Lightweight and SlimIdeal for double-sided and wall-mounted LED displays
Common Cathode Power SupplyTrue energy-saving solution with reduced heat generation
High Brightness & High ContrastExcellent visibility even in direct sunlight
Warranty Period6 Years – backed by ONLY LED's factory support


LED Display Size Specifications
ItemSpecification
LED Panel Size3 ft × 4 ft
Actual Display Area144 sq ft (total for both sides)
Display Physical Resolution288 × 576 pixels
Electrical Requirements
ItemSpecification
Working Voltage120V – 220V AC
Max Power Draw80 Amps @ 120V AC
Average Power Draw30 Amps @ 120V AC



6x12ft Outdoor Digital LED Sign | High-Brightness EMC for Schools, Churches & Businesses

ONLY LED DISPLAY’s 6x12ft outdoor digital LED sign (Model: UP-PH6.35-CDL6) is a premium, large-format Electronic Message Center (EMC) engineered for maximum roadside visibility and all-weather outdoor performance. Featuring a 6.35mm pixel pitch, 10,000-nits brightness, and cloud-based content control, this 6×12-foot outdoor LED sign delivers vivid, full-color messages that attract attention day and night.

Whether you need a 6x12ft LED sign for schools, a 6x12ft LED sign for churches, a 6x12ft business LED sign, or a 6x12ft programmable LED marquee, this display is built for long-term reliability, energy efficiency, and high-impact communication.

The UP-PH6.35-CDL6 sign can be configured as a monument LED sign, pole-mounted LED display, or wall-mounted EMC, making it ideal for high-traffic roads, large campuses, retail plazas, worship centers, and government facilities.


What You Can Display on a 6x12ft Outdoor LED Sign

The 6x12ft outdoor LED EMC sign supports full multimedia playback and cloud-based scheduling using Colorlight Cloud or NovaStar Vnnox. Users can instantly update content from anywhere—no on-site adjustments needed.

You can showcase:

  • Advertisements, promotions, and limited-time special offers

  • Store hours, service schedules, class times, and event reminders

  • Logos, branding animations, and product videos

  • Weather info, live time & temperature

  • Social media feeds, scrolling text, RSS tickers, and emergency alerts

The intuitive cloud software makes content creation simple for beginners while offering advanced customization for technical users.

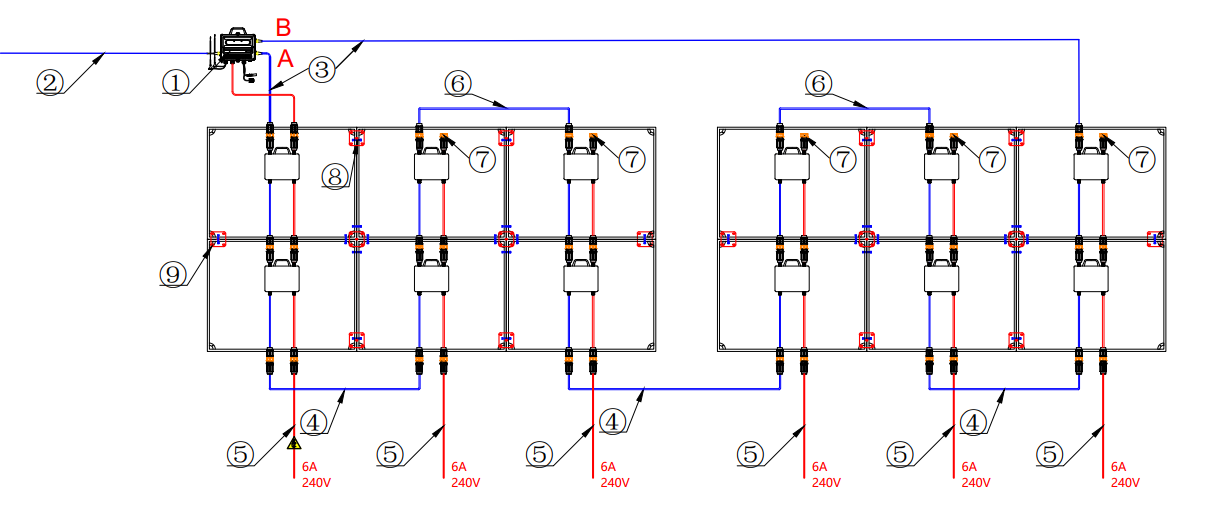

6X12FT OUTDOOR LED SIGN LAYOUT.png

SKYLINE U-PRO-S Panels – The Power Behind the 6x12ft LED Sign

ONLY LED DISPLAY builds every 6x12ft outdoor digital sign using our high-performance SKYLINE U-PRO-S / U-PRO-L aluminum LED panels. These panels are engineered for 24/7 outdoor operation, extreme durability, and ultra-high brightness—making them the preferred choice for American schools, churches, and commercial signage companies.

Key advantages of U-PRO-S panels:

  • Designed for long-distance viewing and roadside visibility

  • Run 24/7 with stable performance

  • Up to 10,000 nits for clear daytime viewing

  • Energy-efficient common cathode power design

  • Slim, lightweight, and easy to maintain

From church service announcements to business promotions, U-PRO-S panels allow the 6x12ft LED sign to deliver maximum audience engagement.


Popular Outdoor LED Sign Sizes – With the 6x12ft Format Leading the Market

ONLY LED creates custom-size LED signs using modular 1×2 ft panels. Among all configurations, the 6x12ft outdoor digital LED sign is one of the most powerful options for large properties and high-visibility applications.

Popular outdoor LED sign sizes include:

  • 2×6 ft LED sign – compact storefront option

  • 2×8 ft LED sign – slim roadside display

  • 3×6 ft LED sign – great for small schools or churches

  • 3×8 ft LED sign – retail advertising and events

  • 4×8 ft LED sign – bestselling double-sided EMC format

  • 4×10 ft LED sign – ideal for city or business fronts

  • 5×10 ft LED sign – wide-format for highway views

  • 6×12 ft LED sign – large-format, high-visibility solution

All formats—including the 6x12ft sign—can be single-sided or double-sided, and are compatible with monument, pole, and wall-mounted structures.


Core Features of the 6x12ft Outdoor Digital LED Sign (UP-PH6.35-CDL6)

ONLY LED’s SKYLINE U-PRO-S panels give the 6x12ft sign industry-leading specifications:

✔ 10,000 Nits Ultra-High Brightness

Ensures your sign stays visible in direct sunlight.

✔ Lightweight Aluminum Cabinet

Up to 70% lighter than steel, reducing structure costs and installation labor.

✔ Common Cathode Technology

Lower power usage, reduced heat, and extended lifespan.

✔ Front & Rear Serviceability

Easy maintenance and fast troubleshooting.

✔ Multi-Certification Quality

CE EMC, LVD, FCC, ETL, and RoHS approved
U.S. Patent: US11871528B1

✔ 6-Year Warranty + Lifetime Support

Factory-direct warranty for long-term reliability.


ONLY LED’s Technical Support for 6x12ft LED Sign Installations

ONLY LED DISPLAY provides complete engineering and technical support for all 6x12ft LED sign projects:

  • Structural drawings for permitting

  • Engineering review & installation consulting

  • Cloud software setup (Colorlight Cloud & Vnnox)

  • Remote diagnostics & technical assistance

  • Lifetime factory support for every customer

From planning to installation, we ensure your 6x12ft LED sign operates flawlessly.


About ONLY LED DISPLAY

With over 19 years of LED manufacturing experience, ONLY LED DISPLAY specializes in outdoor LED signs, EMCs, digital billboards, and custom 6x12ft LED signage solutions. Our mission is:

Smarter. Brighter. Greener.
High-brightness, high-efficiency LED displays engineered for the U.S. market.


Contact ONLY LED DISPLAY

Ready to order your 6x12ft outdoor digital LED sign?

Email: info@onlyled.com
Website: onlyled.com


ONLY LED DISPLAY – Your direct manufacturer for modular LED signs, digital EMCs, and 6x12ft outdoor LED display systems.
