4'x8' Double-Sided LED Electronic Message Center (EMC) Sign (Model: UP-PH9.52-CDS)ONLY LED DISPLAY’s 4'x8' double-sided LED electronic message center sign is engineered to make your bu
Product details

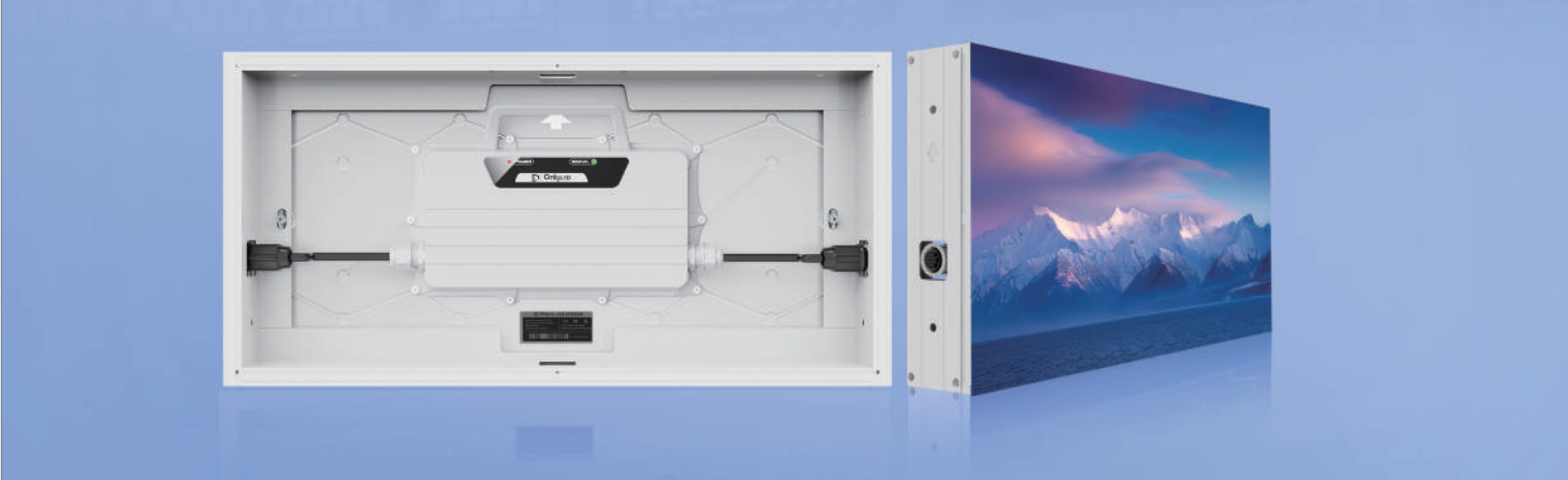

4'x8' Double-Sided LED Electronic Message Center (EMC) Sign (Model: UP-PH9.52-CDS)
ONLY LED DISPLAY’s 4'x8' double-sided LED electronic message center sign is engineered to make your business stand out. Designed for high-visibility, high-impact outdoor digital advertising, this dynamic, full-color LED sign delivers real-time messages, promotions, and multimedia content that grabs attention day and night.
Whether you're a school, church, retail store, or city facility, our 4 foot by 8 foot digital sign is the ideal solution to attract more foot traffic and build your brand presence with brilliant clarity and unmatched durability.
What Can You Display on the 4'x8' LED Sign?
This programmable 4x8 outdoor LED sign offers full multimedia support and cloud-based scheduling:
Advertisements and promotions
Business hours, events, and announcements
Videos, images, logos, and branding
Time, temperature, weather updates
Social media feeds, RSS, stock info, and alerts

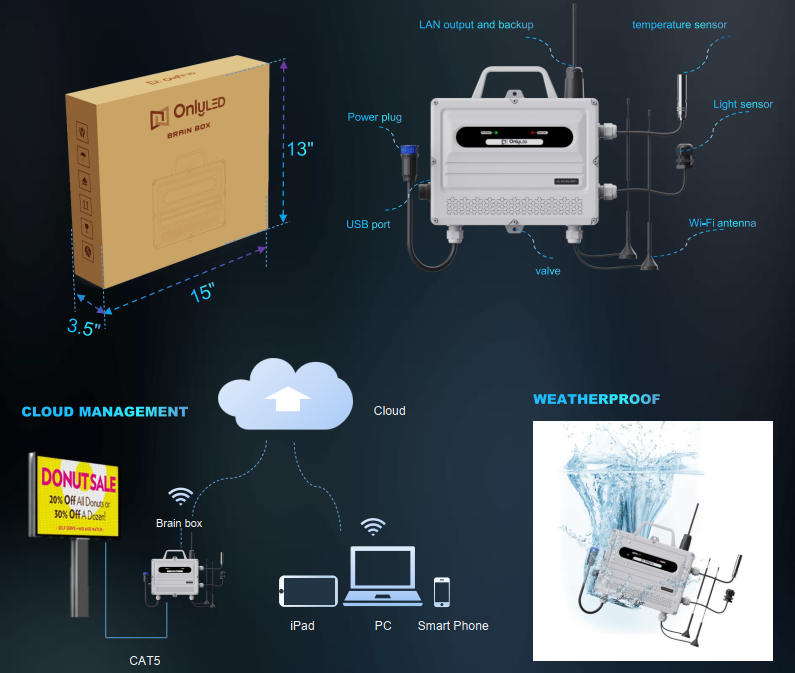

Easily manage your sign using Colorlight Cloud or NovaStar Vnnox software — beginner-friendly yet powerful enough for advanced users. Create content, schedule playlists, and monitor performance all from one platform.
| Key Features | |
| Feature | Description |
| Modular Display Panels & Mounting Frames | Designed for easy assembly and scalable installations |
| Front Serviceable Design | Allows quick and convenient maintenance from the front |
| Die-Cast Aluminum Housing | Strong, corrosion-resistant, with excellent heat dissipation |
| Lightweight and Slim | Ideal for double-sided and wall-mounted LED displays |
| Common Cathode Power Supply | True energy-saving solution with reduced heat generation |
| High Brightness & High Contrast | Excellent visibility even in direct sunlight |
| Warranty Period | 6 Years – backed by ONLY LED's factory support |
| LED Display Size Specifications | |
| Item | Specification |
| LED Panel Size | 1 ft × 2 ft |
| LED Panel Quantity | 4 (H) × 4 (W) × 2 Faces = 32 pcs |
| Required Display Size | 4 ft (H) × 8 ft (W) × 2 Faces |
| Actual Display Area | 64 sq ft (total for both sides) |
| Pixels per Panel | 32 × 64 = 2,048 pixels |
| Display Physical Resolution | 128 × 256 = 32,768 pixels |
| Electrical Requirements | |
| Item | Specification |
| Working Voltage | 120V – 220V AC |
| Max Power Draw | 32 Amps @ 120V AC |
| Average Power Draw | 12 Amps @ 120V AC |
| LED Panel Main Specifications | |

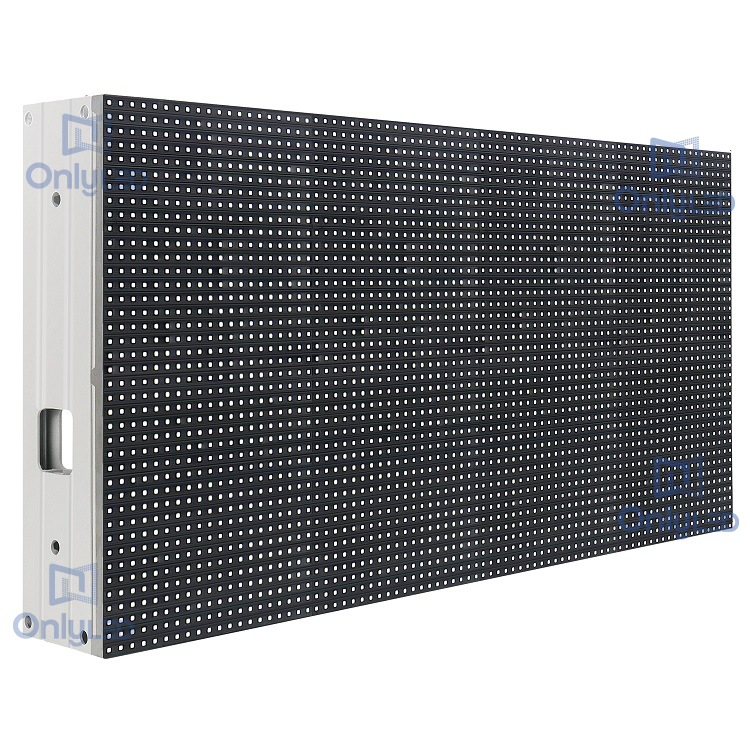

| MODEL NUMBER | UP-PH9.52-CDS |
| LED Panel Size | 1'x 2' |
| Pixel Pitch | 9.5mm |
| LEDs | SMD2727 |

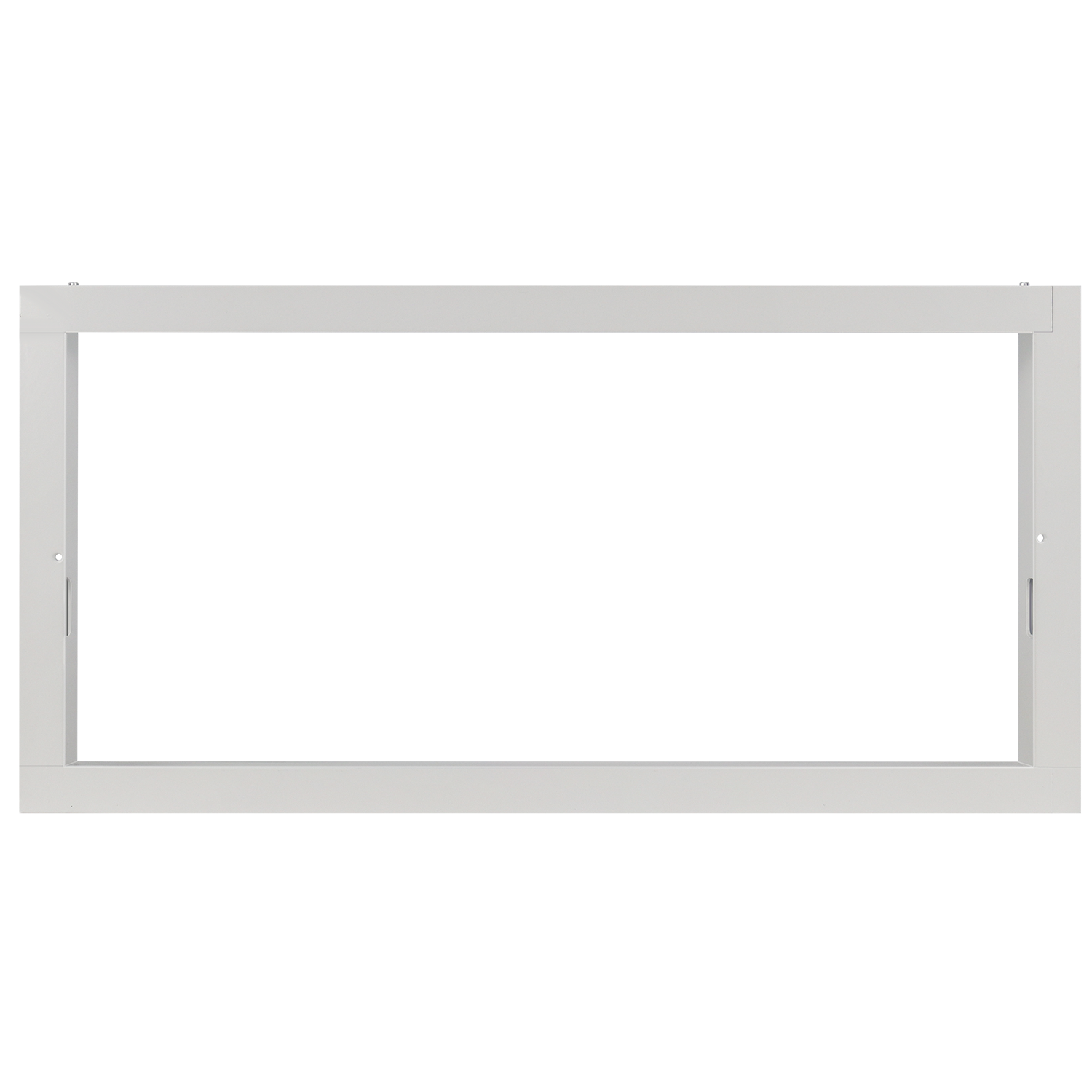

| Weight | 13.5Lbs (Including 1'x2' mounting frame) |
| Density of pixel | 11022pixel/㎡ |
| Resolution/Panel | 32pixel*64pixel |
| viewing angle/horizontal | 110° |
| Viewing angle/Vertical | 90° |
| Average power/Panel (W) | 45 |
| Max power/Panel (W) | 120 |
| Driving Method | 1/4 Scan |
| Refresh rate | ≥3840HZ |
| Brightness | ≥10,000cds/㎡ |
| Working environment | Outdoor |
| Waterproof | IP66 |
| Grey scale/display color | 65536/display 16.7M |
| frame frequency | ≥60HZ |
| Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable |
| Control system | Colorlight and Novastar |
| System Operation Platform | Windows |
| Average no Failure time | ≥10000hrs |
| Lifetime of Led | ≥100000hrs |
| Malfunction do rate | ＜0.0001 |
| Working Voltage | 120V to 220V AC |
| Earth leakage current | ＜0.01mA |
| working / Storage temperature | working -30℃～60℃ storage -40℃～85℃ |
Why Choose ONLY LED’s SKYLINE Series (Model: U-PRO-S) LED Panels?
ONLY LED’s SKYLINE Series U-PRO-S panels are high-performance, energy-efficient solutions built for outdoor digital signage applications. Designed with durability, visibility, and serviceability in mind, these LED display panels are ideal for electronic message centers (EMCs), programmable LED signs, and custom digital billboards.
Trusted by schools, churches, municipalities, and retail businesses across the U.S., ONLY LED provides a reliable and long-lasting digital display platform that stands out in any environment.

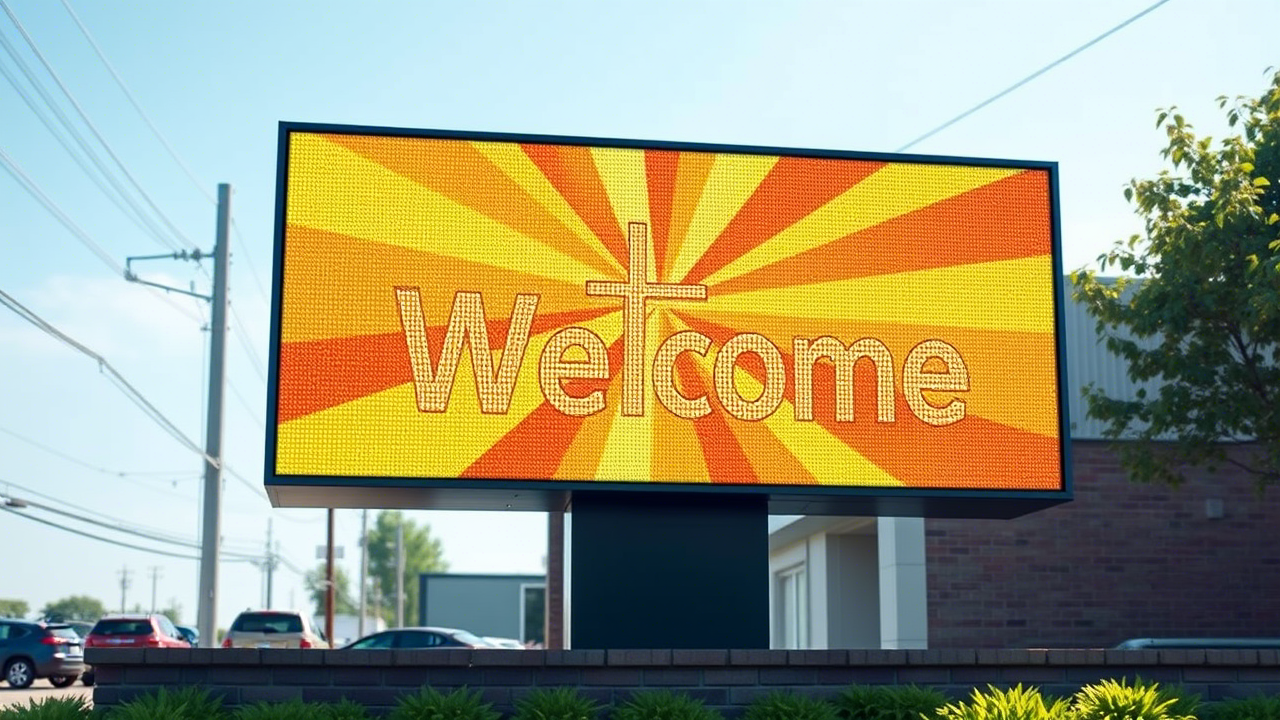

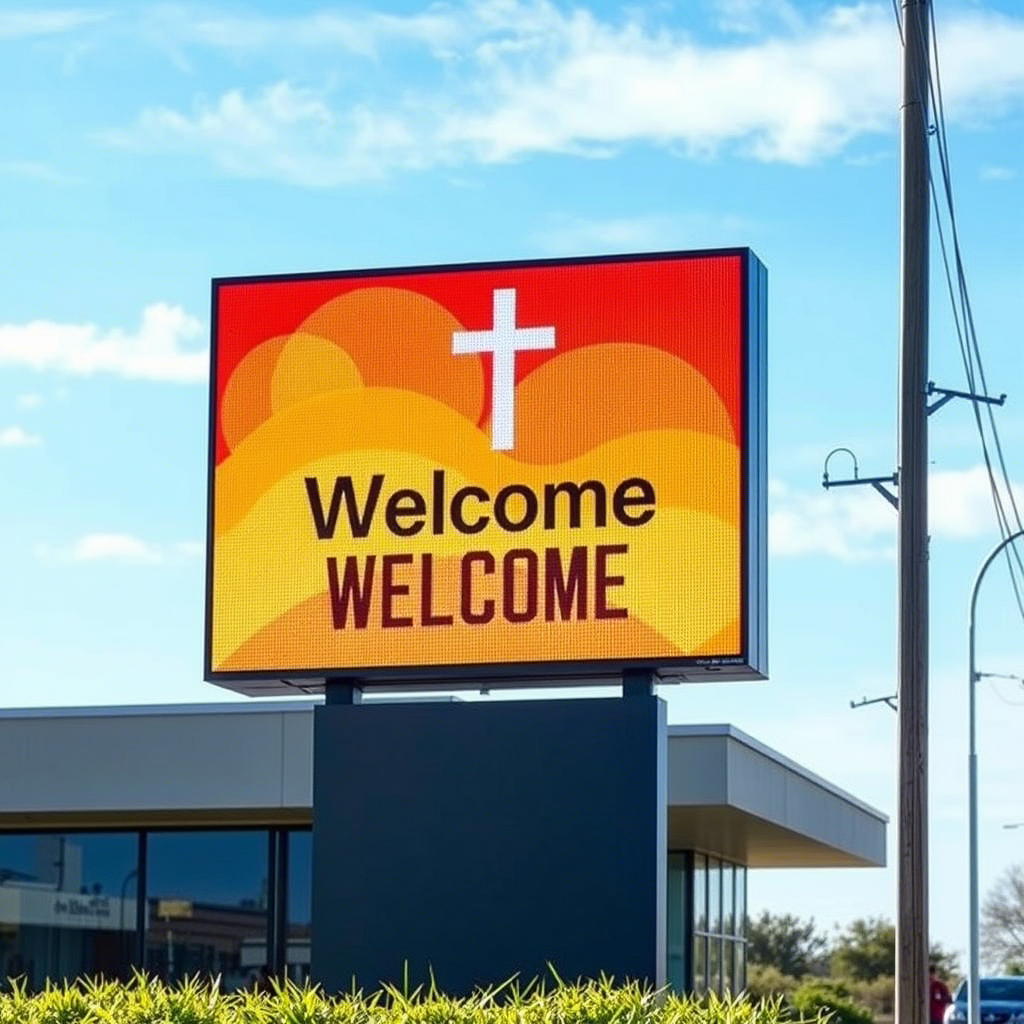

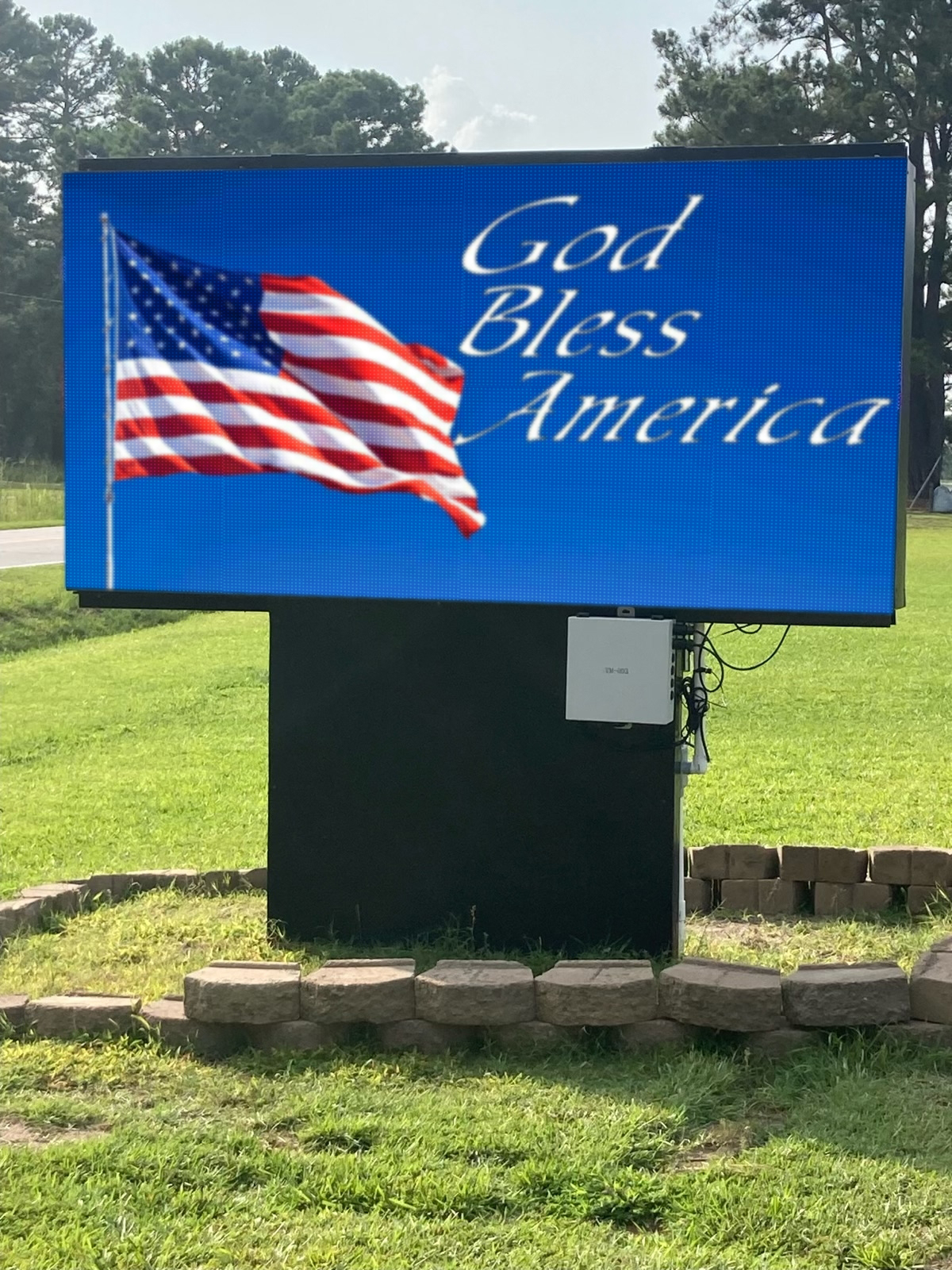

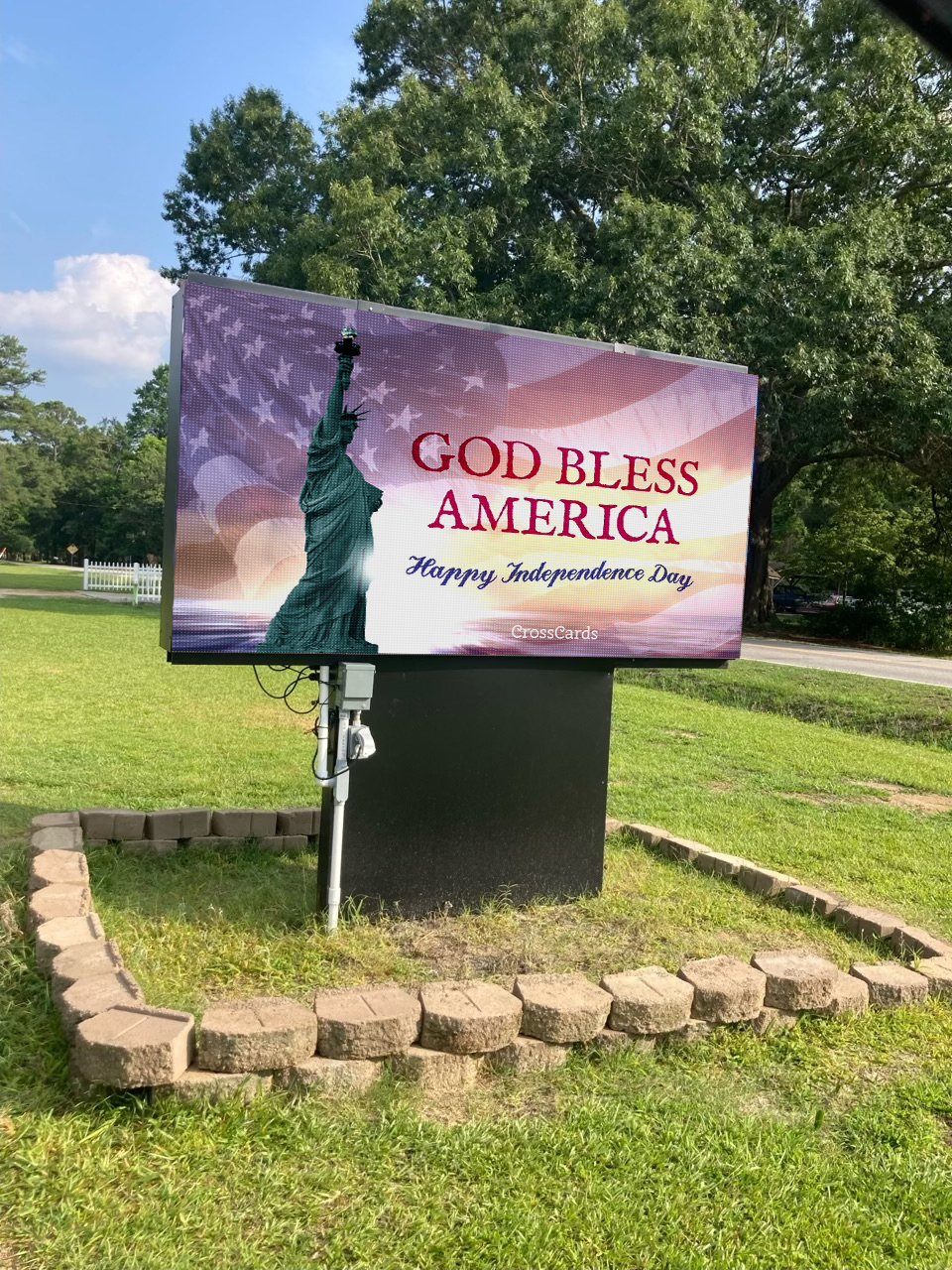

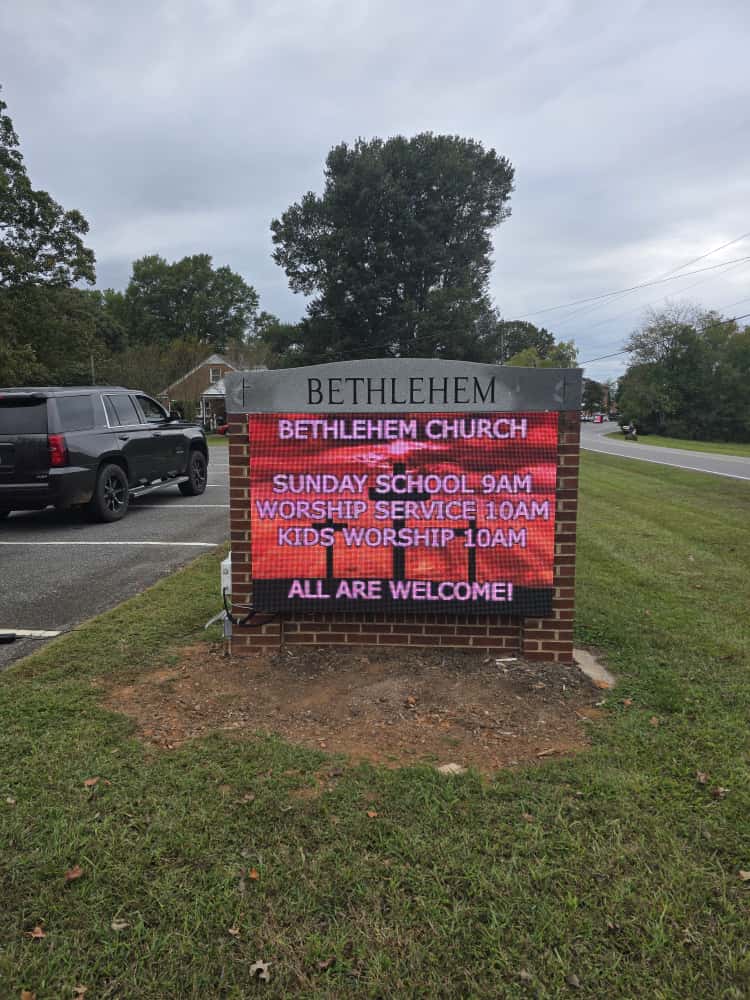

Perfect for School Signs, Church LED Displays & City Billboards
The U-PRO-S series is engineered to deliver your message 24/7 with brilliant clarity and zero compromise. Whether you're promoting school events, church service times, or city announcements, ONLY LED signs provide outstanding outdoor performance with up to 10,000 nits of ultra-high brightness — ensuring full visibility even in direct sunlight.
Popular LED Sign Sizes for Outdoor Advertising

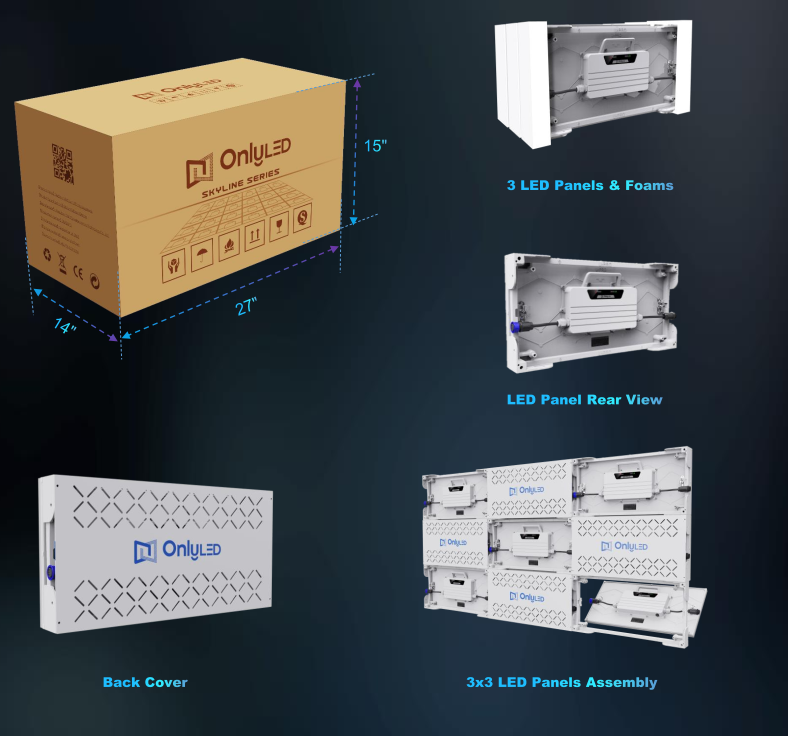

Our LED cabinets are built on modular 1'x2' LED panel technology, allowing for fast assembly and scalable configurations. Available sign sizes include:
2 ft × 6 ft LED Sign – Ideal for tight spaces and budget-conscious installations
2 ft × 8 ft LED Sign – Slim and effective for roadside visibility
3 ft × 6 ft LED Sign – Mid-size digital sign for church or school front yards
3 ft × 8 ft LED Sign – Best-selling format for local business advertising
4 ft × 8 ft LED Sign – Most popular option for programmable double-sided EMCs
4 ft × 10 ft LED Sign – Offers wide-format exposure for retail or government use
5 ft × 10 ft LED Sign – Large-format digital billboard for highways and high-traffic areas
All options available as single- or double-sided LED signs, ready for pole-mount or wall-mount installations.

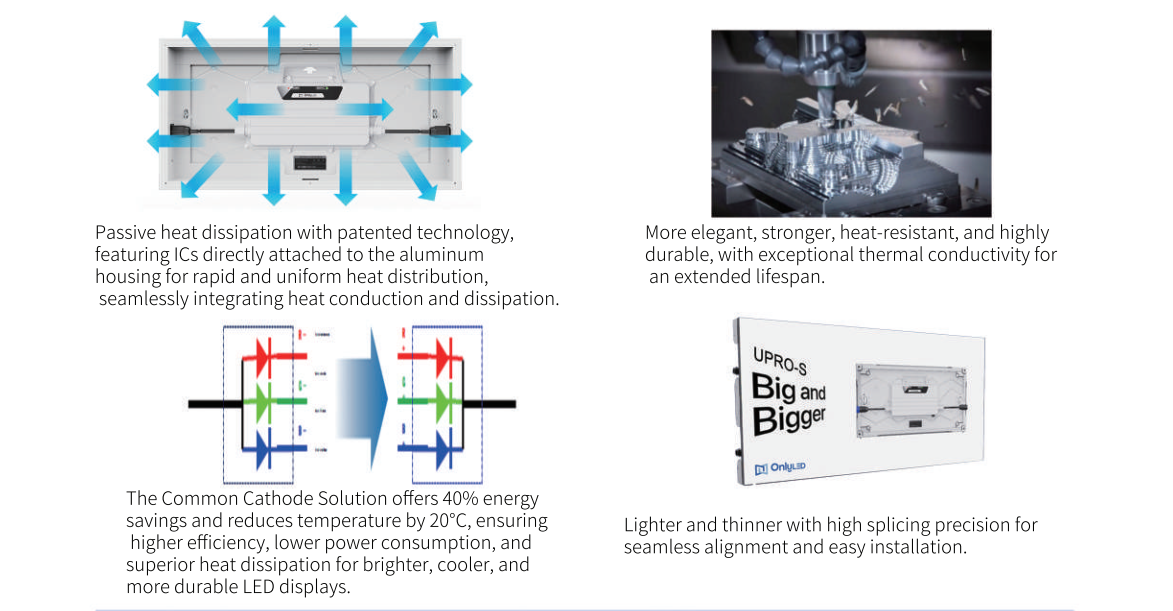

Core Advantages of ONLY LED SKYLINE U-PRO-S Panels
10,000 Nits Brightness
Perfect for outdoor use with direct sunlight. High contrast, crisp resolution, and full-color LED brilliance.

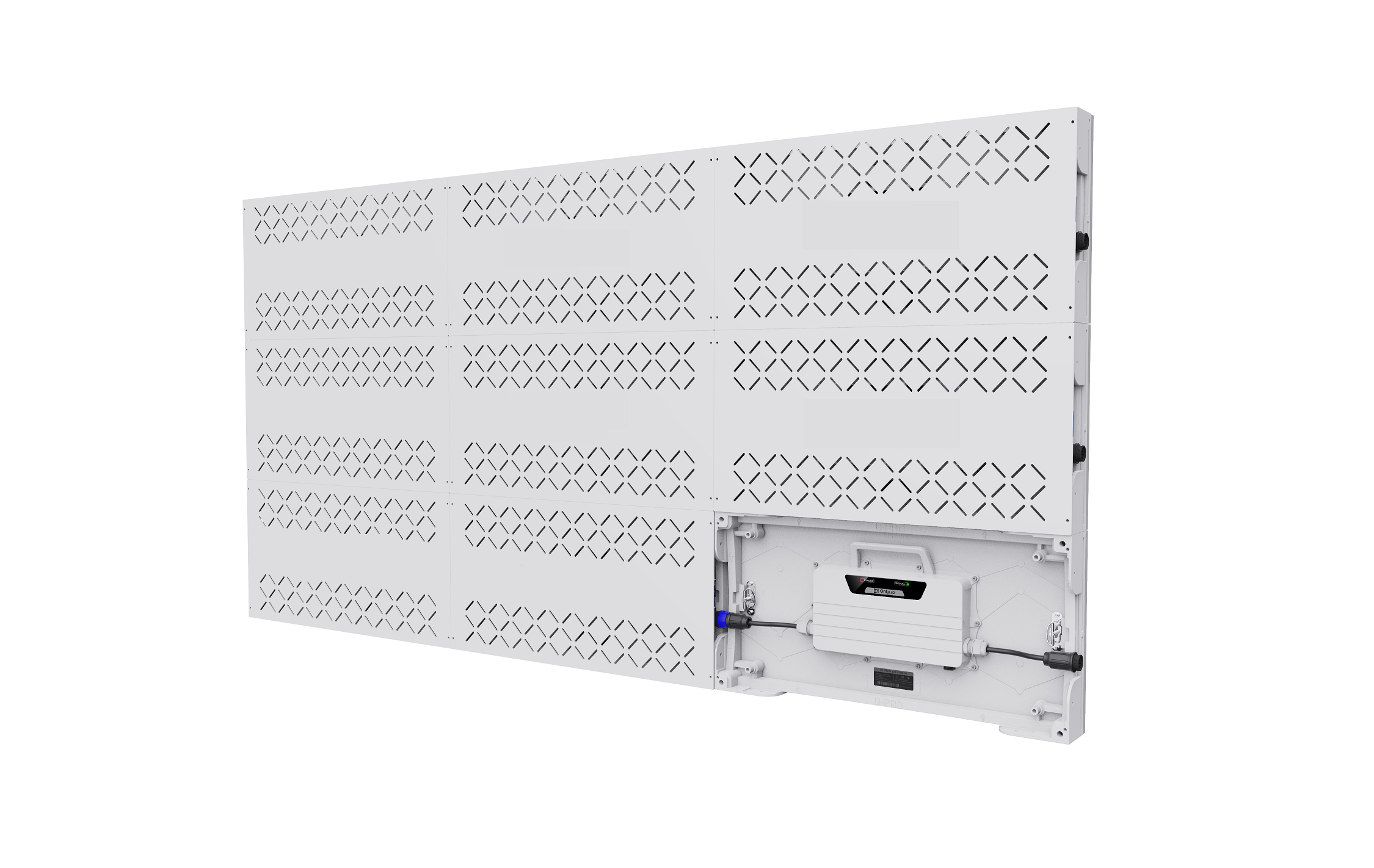

Lightweight Aluminum Cabinets
Up to 70% lighter than standard LED cabinets, reducing transport and installation costs.
Energy-Saving Common Cathode Power
Minimizes power consumption and heat output — for greener, longer-lasting digital signs.

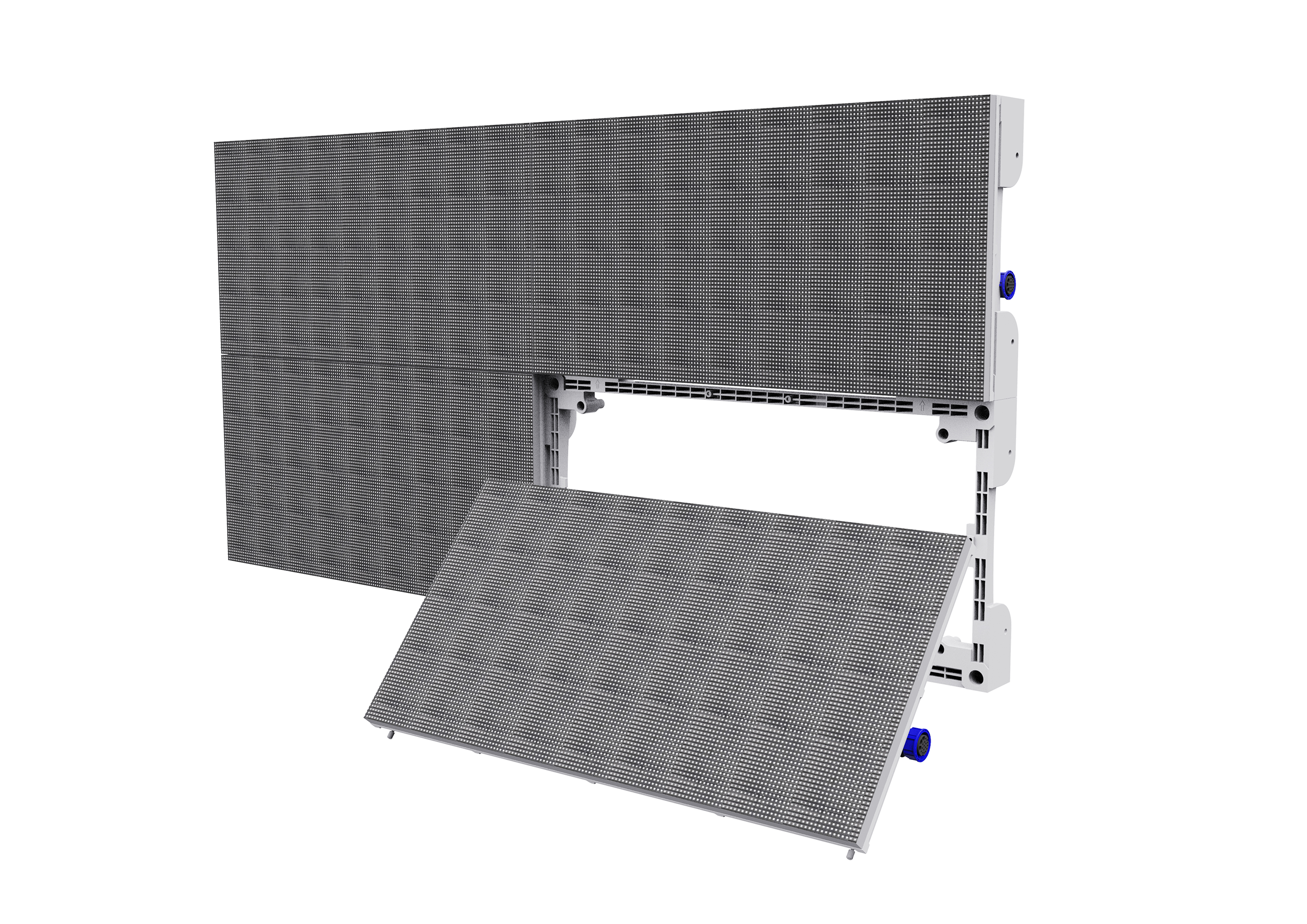

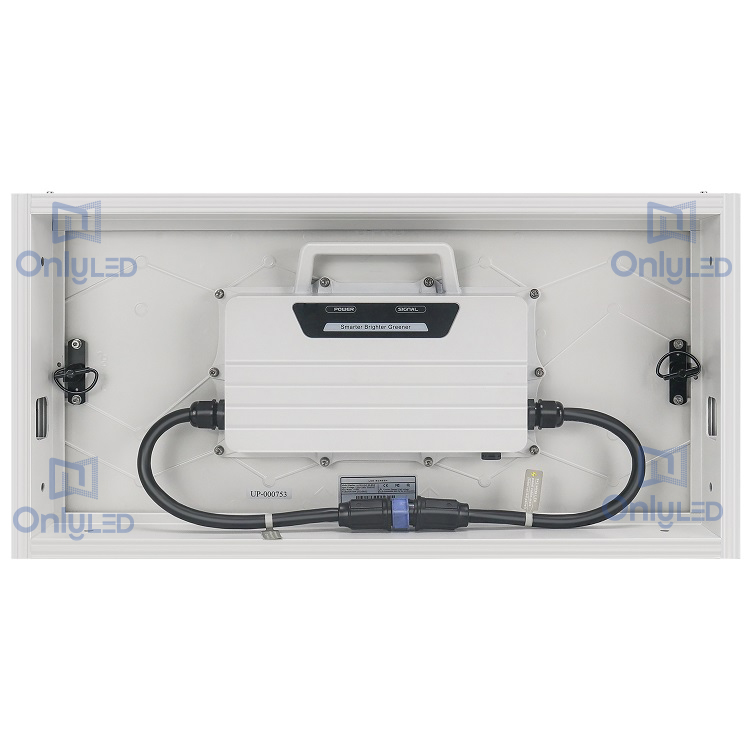

Modular, Serviceable Design
Supports front and rear access for simple maintenance — especially important for double-sided EMC signs.
Certified for Safety and Performance
Meets global standards: CE EMC, LVD, FCC, ETL, RoHS. Protected under U.S. Patent No. US11871528B1.
6-Year Warranty + Lifetime Support
Factory-backed reliability with direct engineering support and no middlemen involved.
ONLY LED Technical Services & Support
ONLY LED is a true LED sign manufacturer, not a trading company. We offer complete technical support before, during, and after your LED sign installation:
CAD structural drawings for city permit approvals
Software setup & training (Colorlight Cloud / NovaStar Vnnox)
Installation consultation and on-site engineering support
Remote monitoring & diagnostics
Lifetime customer care directly from our factory team
About ONLY LED DISPLAY
ONLY LED DISPLAY has over 18 years of experience in LED display design and manufacturing. We specialize in outdoor LED billboard cabinets, programmable EMCs, digital pole signs, and custom modular LED signage solutions.
All of our LED sign products are designed for:
Smarter control – easy cloud scheduling and diagnostics
Brighter visuals – full-color high-resolution displays up to 10,000 nits
Greener operation – common cathode power, lightweight aluminum design
Trusted LED Display Supplier for the U.S. Market
Whether you’re a school principal, church leader, city manager, or business owner, ONLY LED can deliver a customized, cost-effective, and high-quality outdoor LED sign solution to fit your exact needs.
