500x1000mm LED display cabinet P10
  • ONLYLED
  • CHINA
  • 1000pcs /month
  • 1000pcs

Outdoor aluminium LED Cabinet for LED Billboard 10,000nits brightness. Adopt 1R1G1B DIP led diodes to make one pixel . Contrast ratio 4000:1. Working temperature from -40 Celsius degree to 60 Celsius

Product details

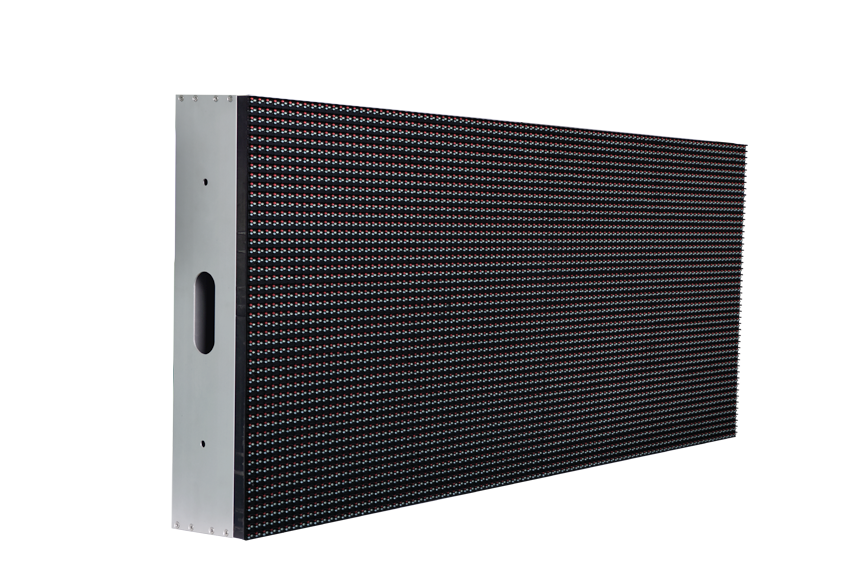

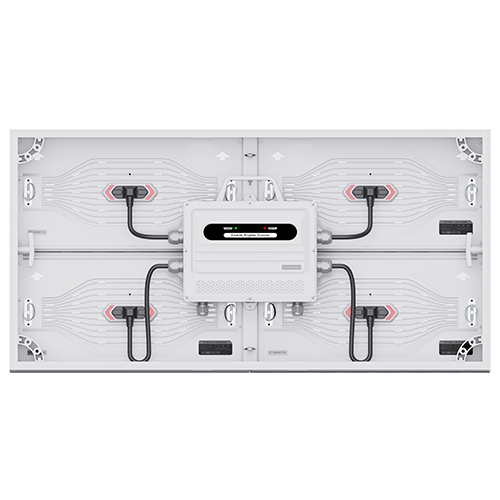

Outdoor aluminium LED Cabinet for LED Billboard 10,000nits brightness. Adopt 1R1G1B DIP led diodes to make one pixel . Contrast ratio 4000:1. Working temperature from -40 Celsius degree to 60 Celsius degree. 4 modules 250x500mm to make up one 0.5x1meter cabinet, fully support front access install/ maintenance and back access install/ maintenance.IP66 ingress protection rating led modules, durable and reliable under all kinds of working conditions.Support color-light cand Nova-star brands controllers.


1.Product introduction


. The most liked 10mm pitch for outdoor DOOH /digital LED displays.

. Aluminium LED tile,solid state control unit and without fans.

. Quiet,no noise at all.

. Aluminium LED cabinet 500x1000 mm.

. High brightness 10,000nits, contrast ratio is 4000:1.

. Using the ultra-brite LED lamps, slow degradation of brightness.

. 24/7 support and English speaking techs.

. Best selling LED cabinet to north American high-end market.

. OEM and ODM accepted.

. Common cathode LEDs.


2.Product feature and application


. Metric size led cabinet 0.5 meter high by 1meter wide, suitable for any size LED displays.

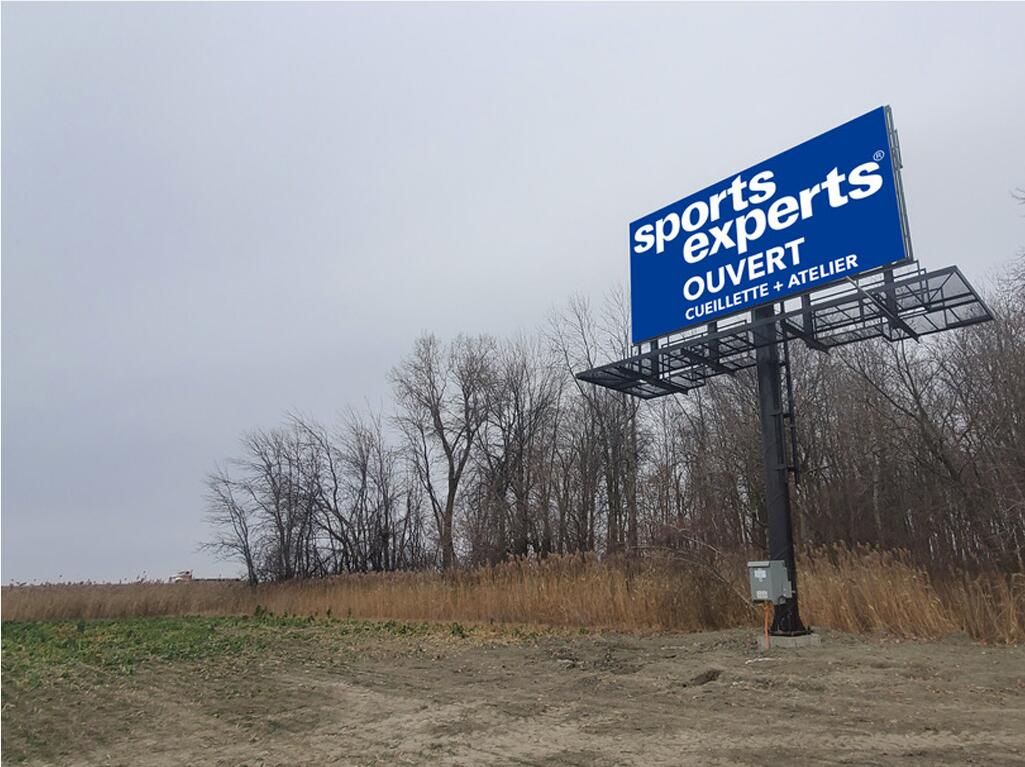

. Multi-installation ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.

. Fully sealed LED module and power supply box,without fans, Ingress protection 66.

. Power and data integrated into one cable and one connector increases functional stability.

. Minimal running gears,reduced cables and connector, all parts highly integrated. Ensure our product have high reliability.

. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.

. Support front and back services.

. Support remote control and monitoring. Publish contents from cloud server via WIFI internet or 4G.

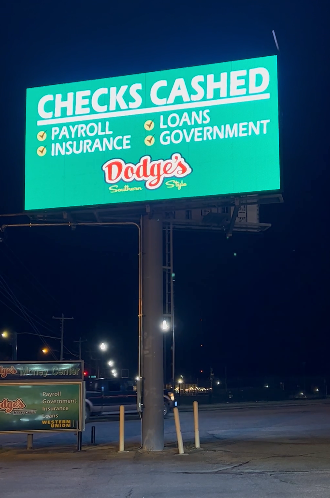

. Suitable for putting up giant LED billboard,low service costs.

. Common cathode LEDs, the truly energy saving solution.


3.Product parameters


MODEL NUMBERXTP-PH10.4-DBD-L4 (Common   cathode LEDs)
Working   EnvironmentOutdoor Installation
LED   Cabinet size500 X 1000MM
Ingress   protection ratingIP66
Cabinet   installation typePermanent install
Pixel   pitch10.4 mm
Cabinet   materialExtruded Aluminum
LED lamp1R1G1B DIP Common cathode LEDs
Density   of pixel9216 pixels/
Resolution/cabinet48 pixel*96 pixels
Average power/cabinet78W
Max power/cabinet230w
Driving Method1/4 Scan
Brightness≥10,000cds/
Cabinet   weight (kgs)16kgs
Installation   AccessFront Access /Back access
Refresh rate≥3000HZ
viewing angle/horizontal90°
Viewing angle/Vertical55°
Grey scale/display color65536/display 16.7M
frame frequency≥60HZ
Brightness adjustmentManual R.G.B each color   256,automatic 8 grades are adjustable
Input signalRFS-VideoRGBRGBHVYUVYCCOMPOSITONS
Control systemColorlight and Novastar
System   Operation PlatformWindows
Malfunction do rate0.0001
AC Input VoltageV   FrequencyHz90~240 VAC  50/60 hz
Earth leakage current0.01mA
working   / Storage temperatureworking -30℃~60    storage -40℃~85
Operating Humidity and Storage HumidityRH10~95
CertificationsETL ,CE ,EMC-A, FCC
WarrantyFIVE years
