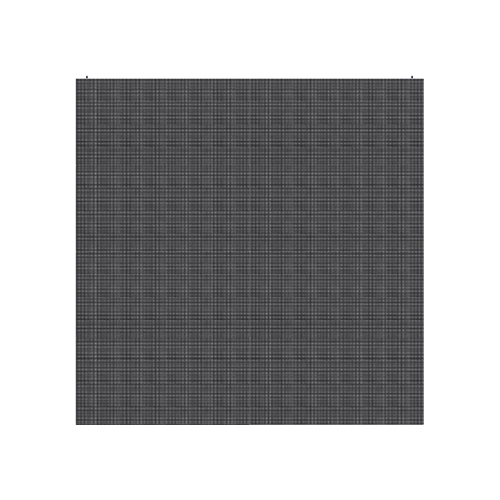

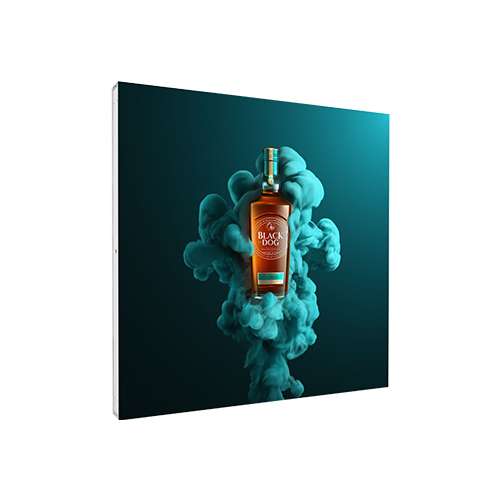

Outdoor Pixel pitch 3.91mm LED Cabinets for outdoor digital displays.Extruded aluminium LED cabinet 1000x1000mm. High contrast 4000:1 ,large viewing angle 110 degree, good visual effect, suitable for
Product details
Outdoor Pixel pitch 3.91mm LED Cabinets for outdoor digital displays.Extruded aluminium LED cabinet 1000x1000mm. High contrast 4000:1 ,large viewing angle 110 degree, good visual effect, suitable for videoscreens, sports broadcast, outdoor advertising LED screens,(DOOH) digital signages. Modular design, fast installation,easy maintenance,support front and rear access installation. ONLY LED privide 5 years warranty on this product.
Product introduction
. High resolution pixel pitch 3.91mm,wide viewing angle 110 degree.
. metric size 500*1000mm,ideal size for most display applications, Suitable for building big size led board.
. Good brightness 6500nits, high contrast, vivid display effect.
. Excellent heat dissipation effect can protect the LED components, ensure high stability and prolong lifespan.
. 0.5x1 meter cabinet structure available,too.
. Support front access(wall mount and double faced LED signs) and back access(pole signs) installation
. common cathode LEDs and truly engery saving design, saving 30% electricity than a conventinal LED screen.
. OEM and ODM service provided.
. Factory warranty period 60 months.
2.Product feature and application
. Metric size led cabinet 1meter high by 1meter wide, suitable for any size LED displays.
. Multi- mounting ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.
. Fully sealed LED module and power supply box,without fans, Ingress protection 66.
Power and data integrated into one cable and one connector increases functional stability.
. Minimal running gears,reduced cables and connector, all parts highly integrated. Ensure our product have high reliability.
. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.
. Support front and back maintenance
. Support remote control and monitoring. Push content from cloud server via WIFI internet or 4G.
. Suitable for putting up giant LED billboard,low service costs.
. Common cathode LEDs, the truly energy saving solution.
3.Product parameters
| MODEL NUMBER | XTP-PH3.91-SBD-L8 (Common cathode LEDs) |
| Working Environment | Outdoor Installation |
| LED Cabinet size | 1000 X 1000MM |
| Ingress protection rating | IP66 |
| Cabinet installation type | Permanent install |
| Pixel pitch | 3.91mm |
| Cabinet material | Extruded Aluminum |
| LED lamp | SMD1921 3in1 Common cathode LEDs |
| Density of pixel | 65536 pixels/㎡ |
| Resolution/cabinet | 256pixel*256 pixels |
| Average power/cabinet | 198W |
| Max power/cabinet | 596w |
| Driving Method | 1/8 Scan |
| Brightness | ≥6,500cds/㎡ |
| Cabinet weight (kgs) | 28kgs |
| Installation Access | Front Access /Back access |
| Refresh rate | ≥3000HZ |
| viewing angle/horizontal | 110° |
| Viewing angle/Vertical | 110° |
| Grey scale/display color | 65536/display 16.7M |
| frame frequency | ≥60HZ |
| Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable |
| Input signal | RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITONS |
| Control system | Colorlight and Novastar |
| System Operation Platform | Windows |
| Malfunction do rate | ＜0.0001 |
| AC Input Voltage（V） Frequency（Hz） | 90~240 VAC 50/60 hz |
| Earth leakage current | ＜0.01mA |
| working / Storage temperature | working -30℃～60℃ storage -40℃～85℃ |
| Operating Humidity and Storage Humidity（RH） | 10﹪~95﹪ |
| Certifications | ETL ,CE ,EMC-A, FCC |
| Warranty | FIVE years |
