D48 48 sheet outdoor advertising LED billboard (3x6m/10x20ft). P3.91, 7000 nits, front-service, single or double-sided. Factory direct, CE, 5-year warranty.
Product details
The D48 is our 48 sheet outdoor advertising LED billboard. It uses a 3 × 6 m SMD1921 LED panel with P3.91 mm pixel pitch, 7,000 nits brightness and a 3,840 Hz refresh rate. The cabinet is die-cast aluminium at 24 kg/m² and 60 mm depth, available as a single panel or double-sided on one pole. Built in our Shenzhen factory, exported to 60+ countries, CE certified.
Product Overview
This digital billboard D48 replaces a standard printed 48 sheet face with a fixed LED screen. You keep the existing steel frame and pole, and run multiple advertisers through one face. The P3.91 pitch is the smallest in our outdoor range — suitable for viewing distances of 15 m and above, which covers most roadside and forecourt positions.
The common cathode driving scheme cuts power draw by roughly 25% versus conventional constant-drive cabinets, and keeps junction temperature lower. At 7,000 nits the screen stays readable in direct European summer daylight. The 3,840 Hz refresh means no moiré when passersby film the screen on their phones.
How the D48 Compares to a Printed 48 Sheet
| Printed 48 Sheet | D48 Digital Billboard | |
|---|---|---|
| Content changes | Print run + labour each time | Upload from anywhere, same day |
| Advertisers per face | 1 at a time | Rotate 6–10 advertisers per day |
| Night visibility | Backlit poster frame | 7,000 nits self-lit |
| Service interval | 4 weeks per poster | Remote 24/7 monitoring |
| Annual print cost | ~ €1,500–2,500 / face | Zero |

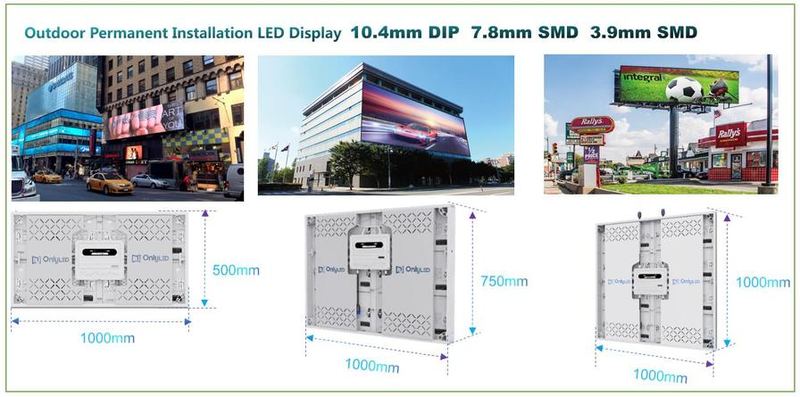

Outdoor cabinet range: 10.4 mm DIP, 7.8 mm SMD and 3.9 mm SMD in 500×1000, 750×1000 and 1000×1000 mm frames.
Key Features
Front-service modules
Modules and receiving cards lift out from the front with a standard tool. No rear platform required.
Single or double-sided
Supplied as one face or two back-to-back on the same pole. Both share the same cabinet and spares.
Common cathode design
Lower forward voltage per LED — about 25% less power than older cabinets, longer LED life.
24 kg/m², 60 mm depth
Die-cast aluminium. Most existing 48 sheet poles and foundations take the conversion without structural work.
Safety rope on every module
Each LED module is tethered. Roadside service drop hazard is eliminated.
5-year warranty
5-year hardware and parts cover including pixel warranty. CE, FCC, RoHS certified.

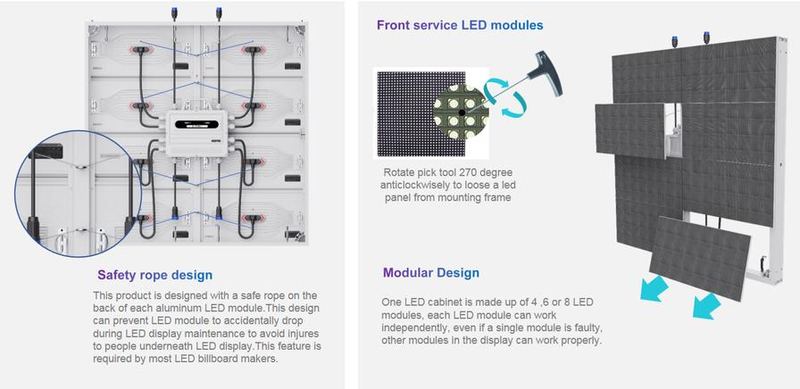

Front-access tool and module safety rope. Modules unclip without disconnecting the cabinet.
Technical Specifications
| Parameter | D48 (XTP-PH3.91-SCUL8-48) |
|---|---|
| Display area | 3 m × 6 m (48 sheet / 10 × 20 ft) |
| Pixel pitch | 3.91 mm (SMD1921) |
| Pixel density | 65,536 pixels/m² |
| Brightness | ≥ 7,000 nits |
| Refresh rate | ≥ 3,840 Hz |
| Grey scale | 14-bit |
| Viewing angle | 140° H / 140° V |
| Cabinet weight | 24 kg/m² |
| Cabinet depth | 60 mm |
| Power supply | 100–240 V AC, 50/60 Hz |
| Avg. power consumption | 180–260 W/m² |
| Max. power consumption | ≤ 800 W/m² |
| Operating temperature | −30 °C to +60 °C |
| Storage temperature | −40 °C to +85 °C |
| Earth leakage | < 0.01 mA |
| Control system | Novastar or Colorlight |
| Configuration | Single-sided or double-sided |
| Certification | CE / FCC / RoHS / CCC |
| Warranty | 5 years |
Rear Layout

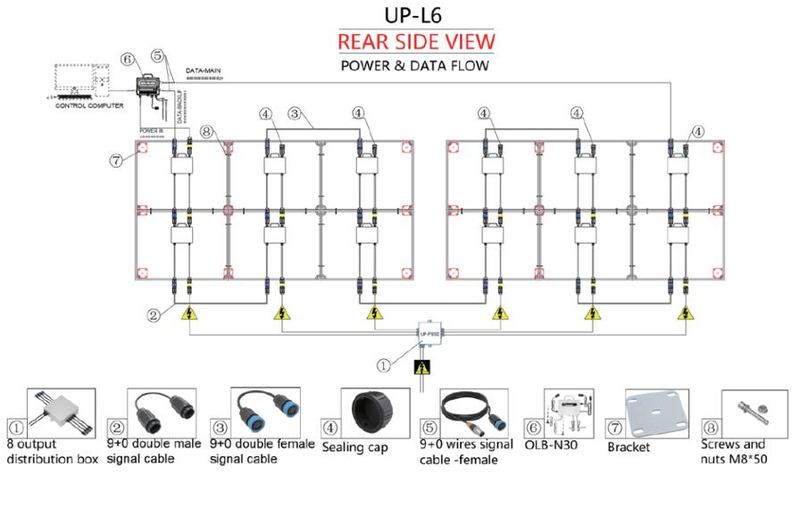

Rear-side power and data flow on the UP-L6 frame. Signal daisy-chained, power distributed from bottom.
Applications

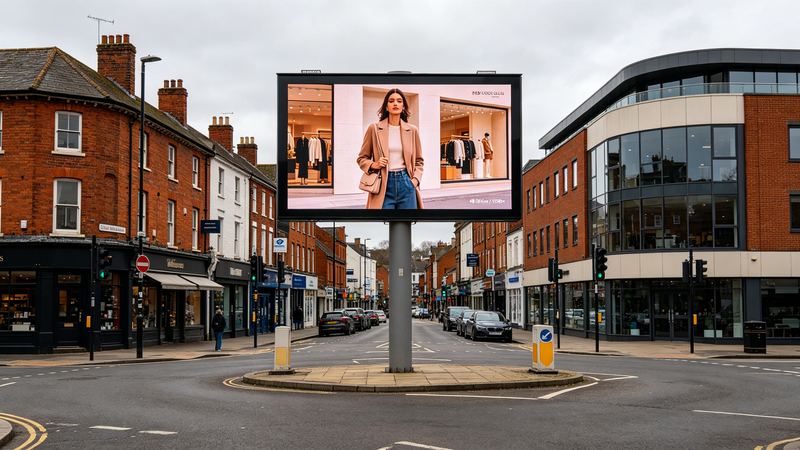

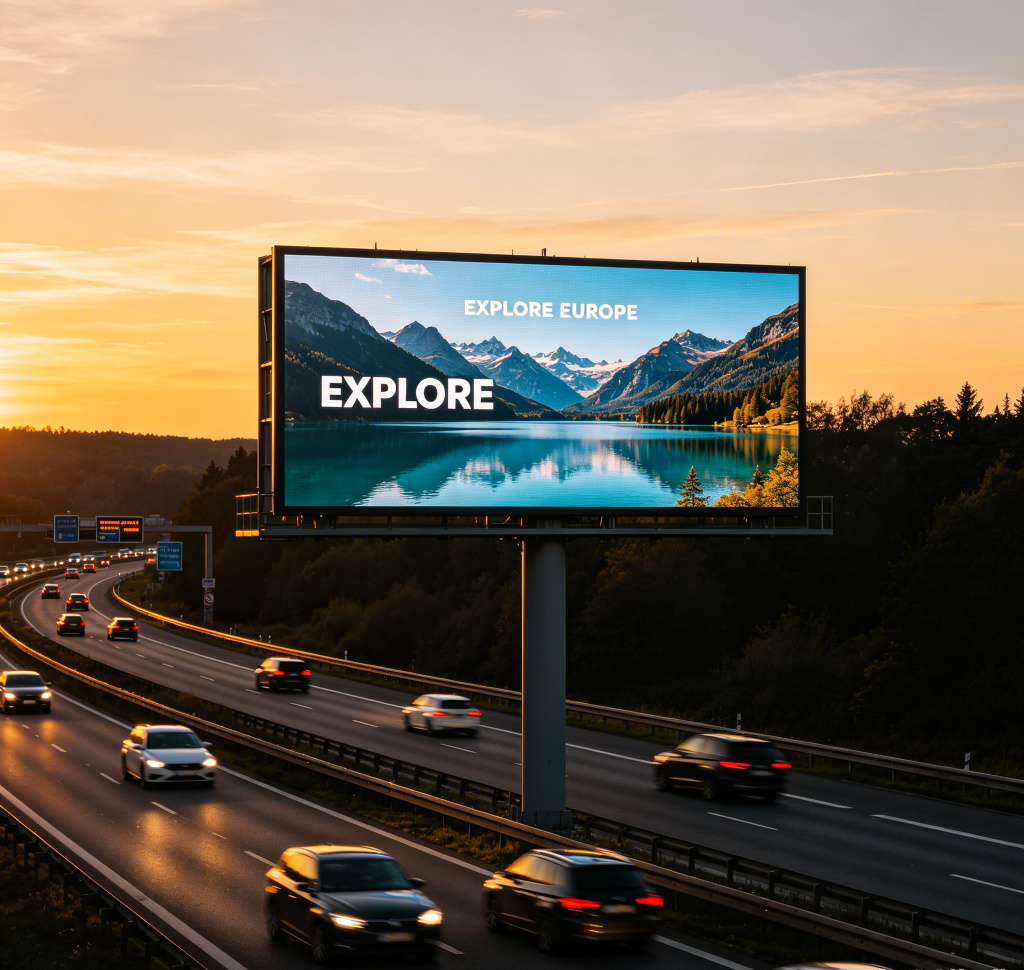

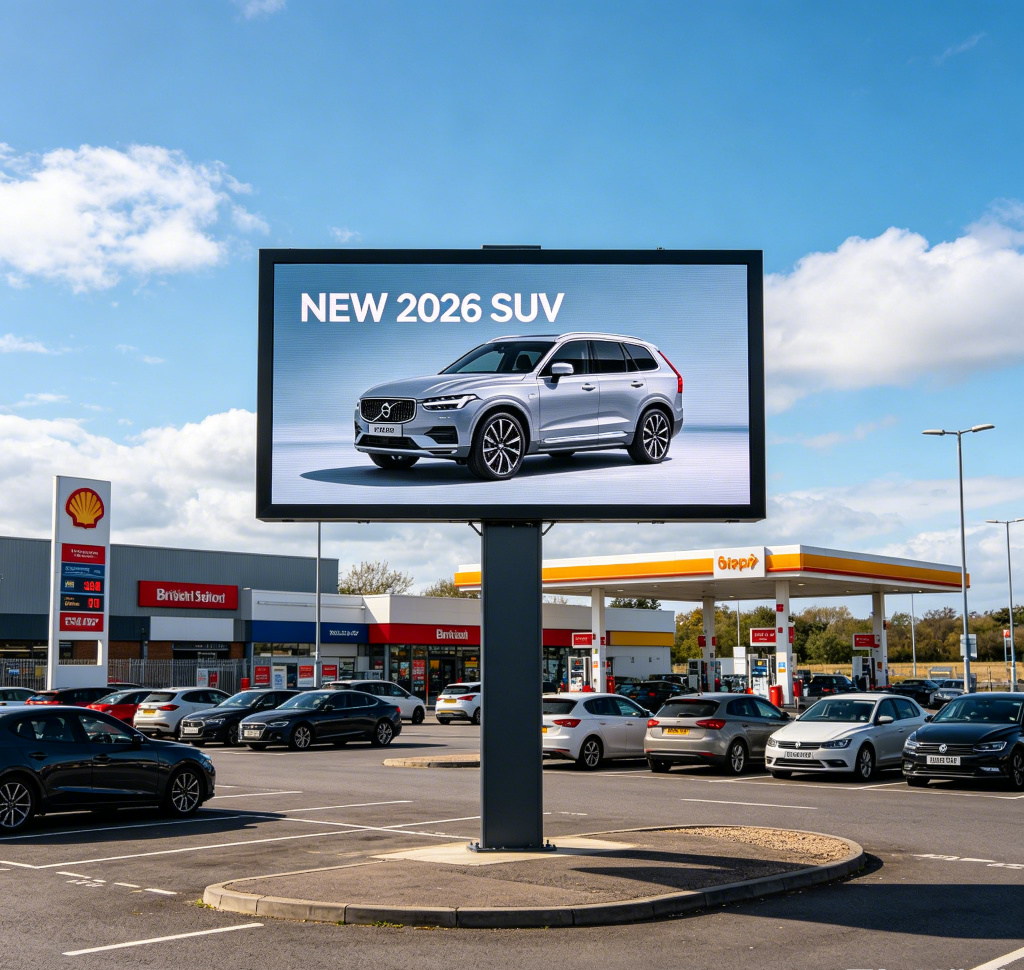

The D48 is deployed as outdoor advertising billboards at town-centre roundabouts, retail park forecourts, transport interchanges, petrol station forecourts and high-street retail locations. It is the standard choice for UK and European sign contractors converting printed 48 sheet faces to digital DOOH.
Why Buy from the Factory
Direct FOB pricing
No distributor margin. You buy the same cabinet European brands private-label, at factory price.
OEM / ODM
Your logo on the cabinet, custom front cover, custom pixel pitch. Engineering done in-house.
1,000 m² / month stock
Standard configurations ship in 7–10 working days after deposit. Large projects quoted separately.
Export documentation
CE, FCC, RoHS, ISO 9001. Packing list, commercial invoice, BL. FOB Shenzhen, CIF or DDU terms.
FAQ
What size is a 48 sheet digital billboard?
A 48 sheet digital billboard measures 3 metres high by 6 metres wide (10 × 20 ft), matching the standard printed poster frame used across the UK and Europe.
Can the D48 fit an existing 48 sheet frame?
Yes. The 3 × 6 m panel is dimensioned to drop into a standard 48 sheet steel frame. At 24 kg/m², most existing poles and foundations take the conversion without structural work.
What pixel pitch does the D48 use?
The D48 uses P3.91 mm SMD LEDs at 7,000 nits. Best viewing distance is 15 metres and above, suitable for roadside and forecourt positions.
Is it available as a double-sided unit?
Yes. Two panels can be mounted back-to-back on the same pole. Both configurations use the same cabinet and spare parts.
How long is the warranty?
5 years hardware and parts, including pixel warranty. The cabinet is CE, FCC and RoHS certified for sale in the UK and EU.
Get Factory-Direct Pricing
Send frame dimensions, viewing distance and destination port. CAD drawing + FOB quote within 1 working day.
