Transparent LED screen for retail windows, showrooms & glass facades. 65-75% transparency, 3,000-4,500 nits, 3,840Hz refresh. Indoor 2.6mm, outdoor 3.9mm. Factory-direct.
Product details
Transparent LED Screen
The X series transparent LED screen mounts in front of glass windows and facades. 65-75% of light passes through the LED strip grid, so you don't lose the view or natural light. Indoor model (2.6mm, 3,000 nits) for close viewing; outdoor model (3.9mm, 4,500 nits) for storefront windows exposed to daylight.
What is a transparent LED screen?
A transparent LED screen is a see-through display built from SMD LED strips mounted on an aluminum profile frame. Because the LED strips are spaced apart, 65-75% of natural light passes through the grid — unlike a conventional LED video wall, you can still see the store interior, museum exhibit, or street behind the glass. This makes the X series suitable for retail window displays, showroom partitions, museum exhibits, shopping mall atriums, and glass building facades where blocking the view or natural light is not acceptable. The screen mounts in front of existing windows; no glass replacement is required.
Two models for two environments
- Pixel Pitch2.6 / 5.2 mm
- LED TypeSMD1818
- Brightness3,000 nits
- Density73,728 px/m²
- Transparency≥65%
- Viewing Distance>4 m
- Use CaseRetail, showroom
- Pixel Pitch3.9 / 7.8 mm
- LED TypeSMD1921
- Brightness4,000-4,500 nits
- Density32,768 px/m²
- Transparency≥75%
- Viewing Distance>6 m
- Use CaseGlass facade, storefront

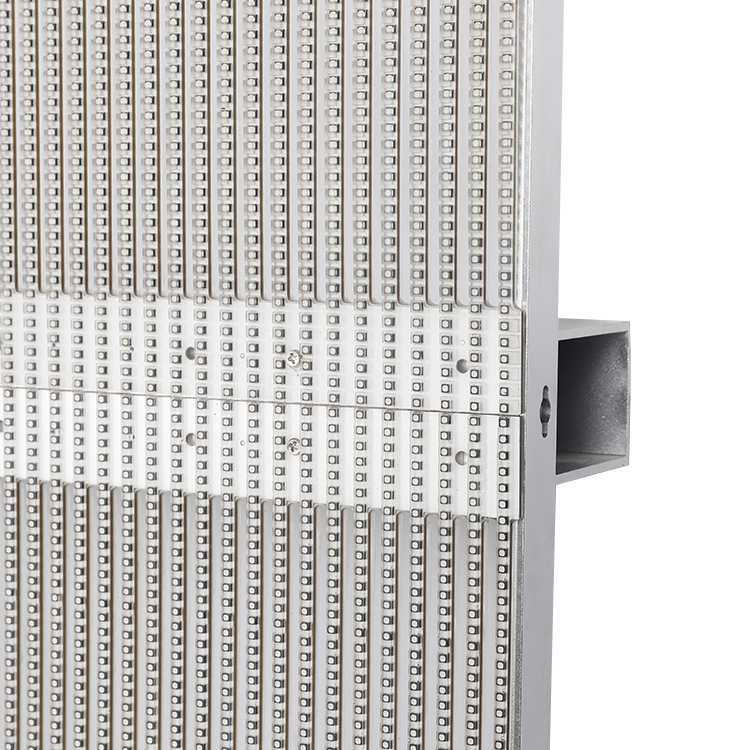

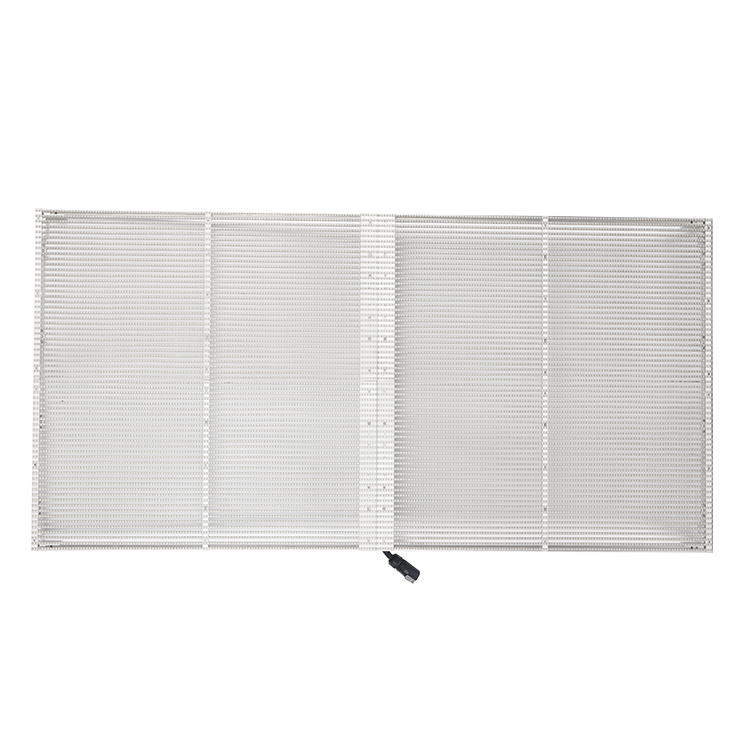

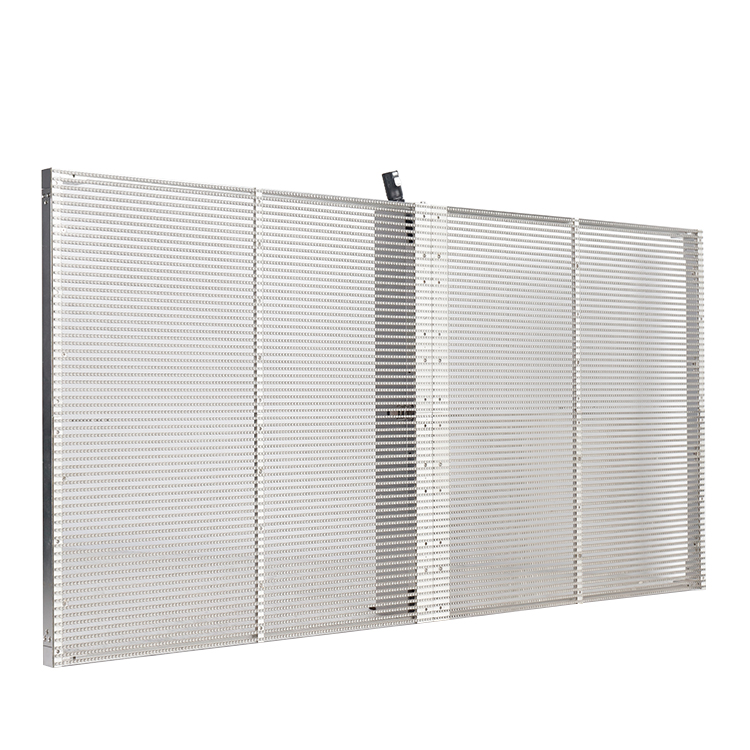

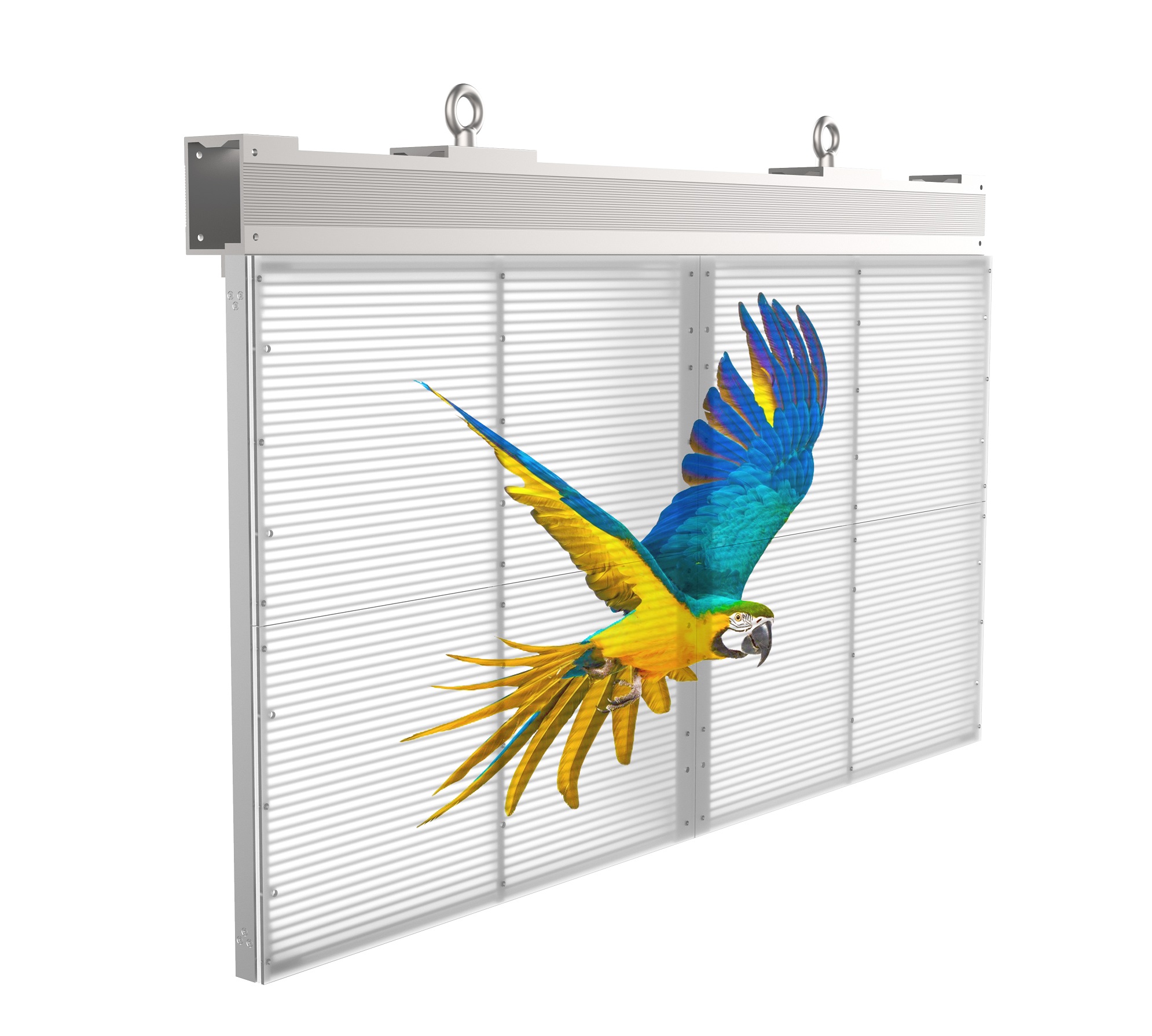

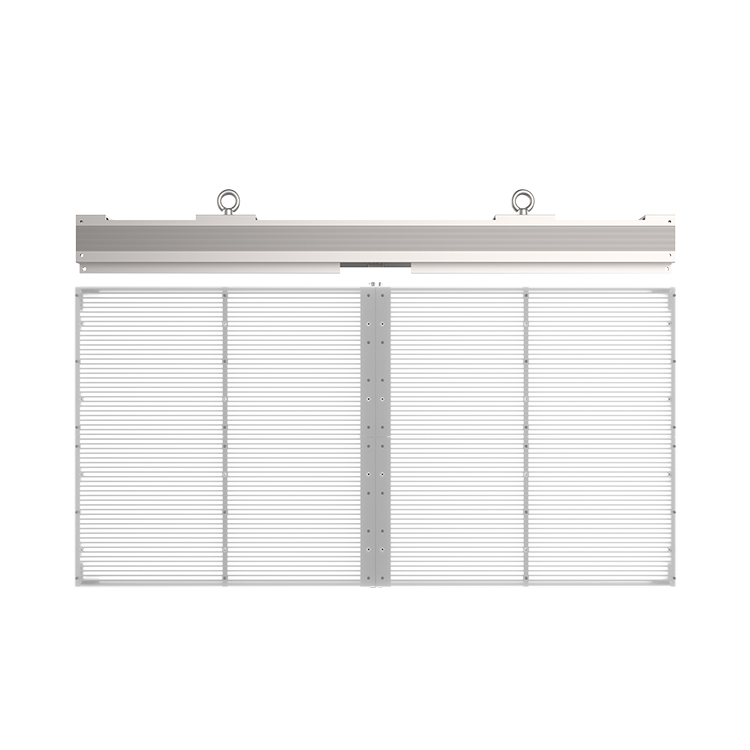

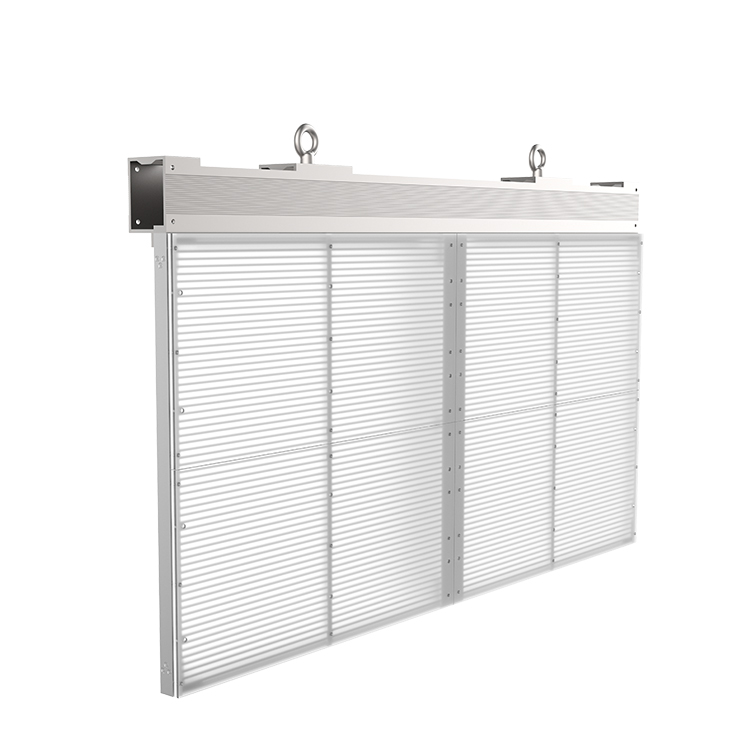

Real product photos
Why choose the X transparent LED?
65-75% Light Transmittance
The indoor model passes 65% of light; the outdoor model reaches 75%. Customers inside can still see the street, and passersby can see the products behind the glass.
3,840Hz Refresh Rate
No camera moiré or flicker when customers film the screen with their phones. Required for retail installations where social media sharing is expected.
14-bit Grayscale
Smooth gradients and accurate color reproduction. 14-bit gray scale is standard for high-end retail and museum installations where image quality matters.
7 kg per Cabinet
The 1000×1000mm aluminum cabinet weighs 7 kg. Two installers can handle it without a hoist, which reduces installation labor cost.
Hanging or Floor Stack
The screen hangs from ceiling brackets or stands on a floor support frame. Rental and touring setups stack cabinets on the floor without wall mounting.
Novastar / Colorlight Compatible
Works with standard Novastar and Colorlight sending/receiving card systems. CE, FCC, and CCC certified for export to EU, US, and domestic markets.
Where transparent LED screens are used
Retail Storefront Windows
Fashion boutiques, jewelry stores, and automotive showrooms mount the screen inside the window. Product displays remain visible from the street while promotional video plays on the glass.
Museums & Showrooms
Museums and brand showrooms overlay digital content on physical exhibits without blocking sight lines. The 65% transparency keeps the physical object visible behind the screen.
Mall Atriums & Glass Lobbies
Shopping mall atriums, office lobbies, and hotel glass walls use the outdoor model (4,500 nits) where daylight hits the glass directly. The open grid doesn't block natural light to the interior.
X transparent LED screen specs
| Parameter | X-PH2.6-IA (Indoor) | X-PH3.91-OB (Outdoor) |
|---|---|---|
| Pixel Pitch (H/V) | 2.6 mm / 5.2 mm | 3.9 mm / 7.8 mm |
| LED Configuration | SMD1818 | SMD1921 |
| Brightness | 3,000 nits | 4,000-4,500 nits |
| Pixel Density | 73,728 dots/m² | 32,768 dots/m² |
| Transparency Rate | ≥65% | ≥75% |
| Cabinet Size | 1000 × 1000 × 68 mm | |
| Cabinet Resolution | 384 × 192 pixels | 256 × 128 pixels |
| Cabinet Weight | 7 kg / panel | |
| IP Rating | IP43 | |
| Viewing Angle (H/V) | 140° / 140° | |
| Viewing Distance | >4 m | >6 m |
| Gray Scale | 14-bit | |
| Refresh Rate | 3,840 Hz | |
| Scanning Mode | 1/32 | 1/16 |
| Max Power Consumption | 650 W/m² | 550 W/m² |
| Avg Power Consumption | 220 W/m² | 200 W/m² |
| Operating Power | AC 100-240V, 50/60Hz | |
| Control System | Novastar / Colorlight | |
| Input Signals | Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI | |
| Operating Temperature | 0°C~40°C (work), -20°C~60°C (storage) | |
| Operating Humidity | 35%~85% (work), 10%~90% (storage) | |
| Operating Life | ≥100,000 hours | |
| Cabinet Material | Aluminum profile | |
| Installation | Stacking / hanging | |
| Certificate | CE, FCC, CCC | |
Frequently asked questions
Get a transparent LED screen quote
Send us your window or facade dimensions. We'll recommend indoor vs outdoor model, pixel pitch, and send a layout drawing with FOB Shenzhen pricing within 24 hours. We export to the US, Europe, Australia, and Southeast Asia.
