OL-CT outdoor transparent LED curtain for building facades. 4,500 nits, 53-65% transparency, 3,840Hz refresh. P3.91-P10.4 pixel pitch. Factory-direct pricing.
Product details

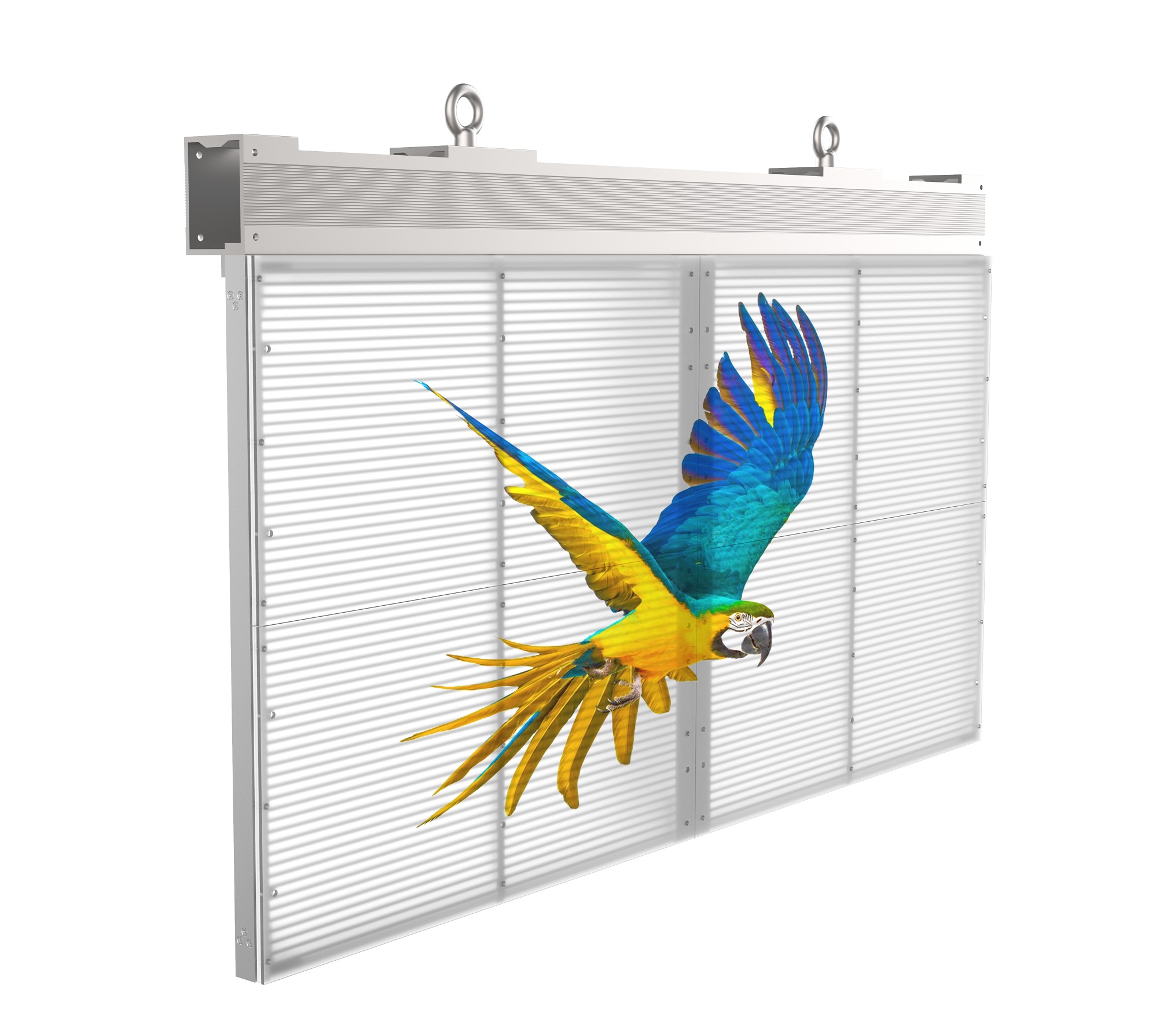

Outdoor Transparent Curtain LED Screen
The OL-CT series is an outdoor transparent LED curtain built for building facades and glass exteriors. The grid-style structure lets wind, light, and visibility pass through while displaying bright daylight-readable video. Each cabinet weighs 4.5-7.5 kg — light enough for high-rise installation without heavy steel support.
What is an outdoor transparent curtain LED?
A transparent curtain LED (also called LED grille screen, LED mesh screen, or media facade display) is a grid of LED strips mounted on a thin frame. Unlike a solid LED wall, the open grid lets wind blow through and daylight enter the building. This makes it ideal for wrapping around existing glass facades without adding structural load or blocking natural light. The OL-CT series uses DIP or SMD LEDs on a die-cast aluminum frame, available in P3.9, P6.25, P7.8, P10, P16, P20, P25, and P31 pixel pitch depending on viewing distance.
How it works
LED strips are mounted vertically on a die-cast aluminum frame. Cabinets measure 500×500mm (4.5 kg) or 1000×500mm (7.5 kg). They hang or bolt onto a vertical support grid fixed to the building facade. Each module slides out from the rear for service — technicians work from a gondola or maintenance platform. No glass removal is required; the screen mounts directly in front of existing windows.
Typical Installations
- Building facades and glass curtain walls
- Shopping mall exteriors and atriums
- Airport and hotel digital signage
- Outdoor advertising media displays
- Event venues and landmark buildings

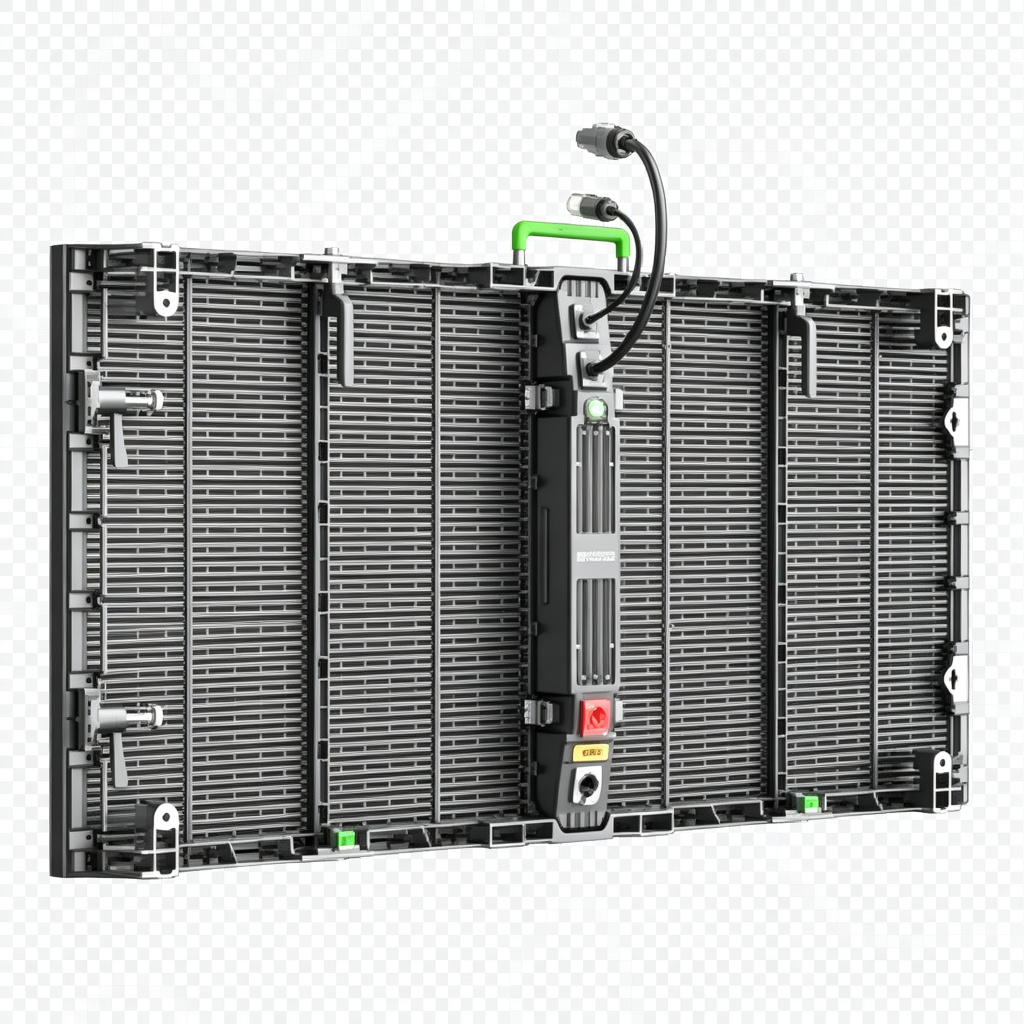

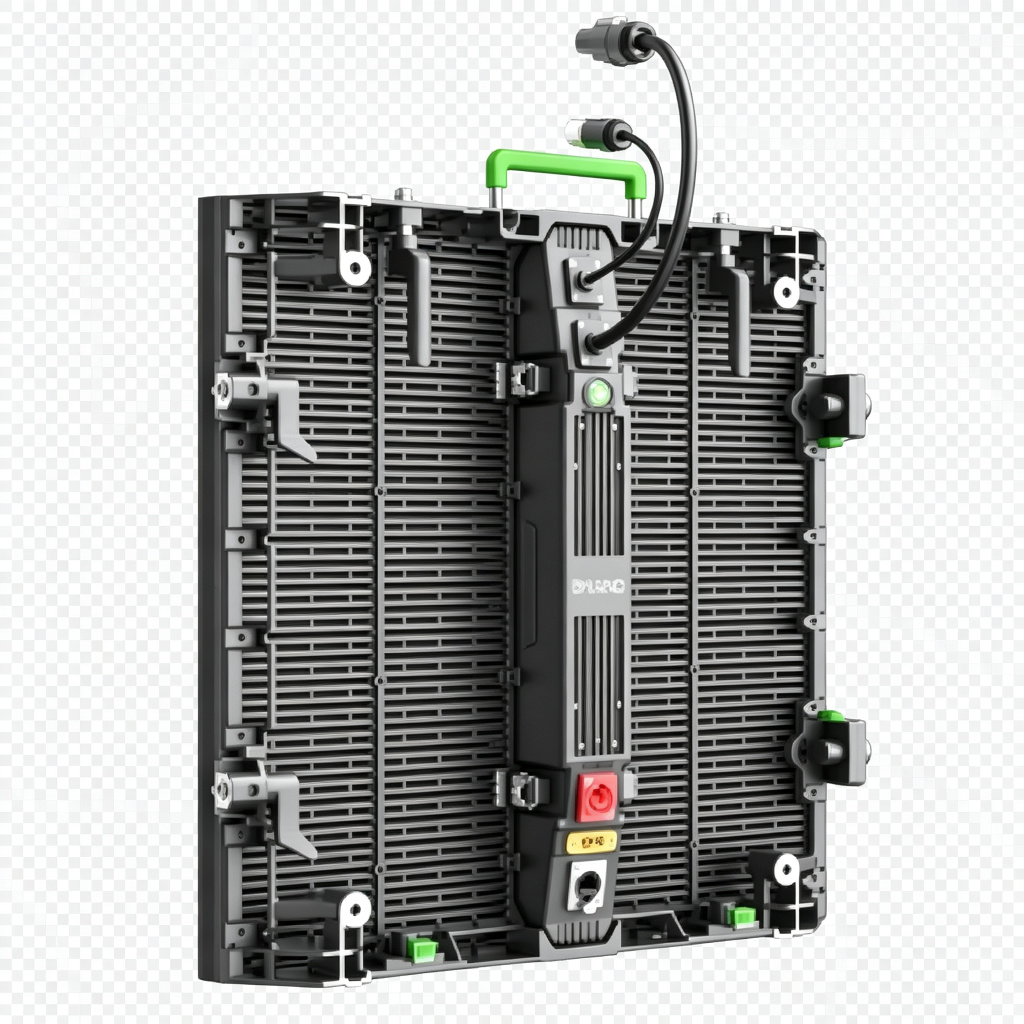

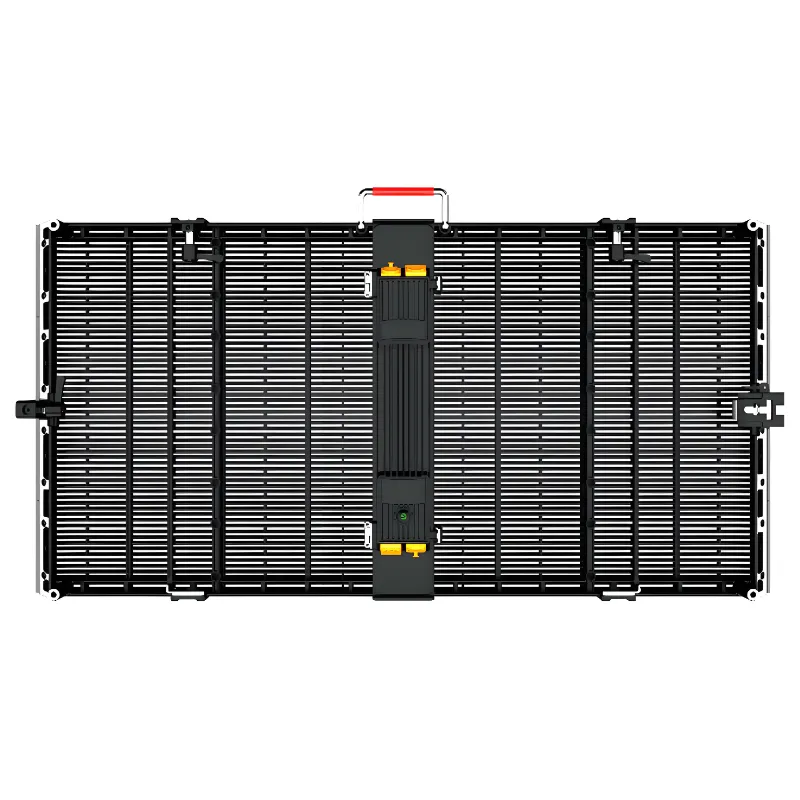

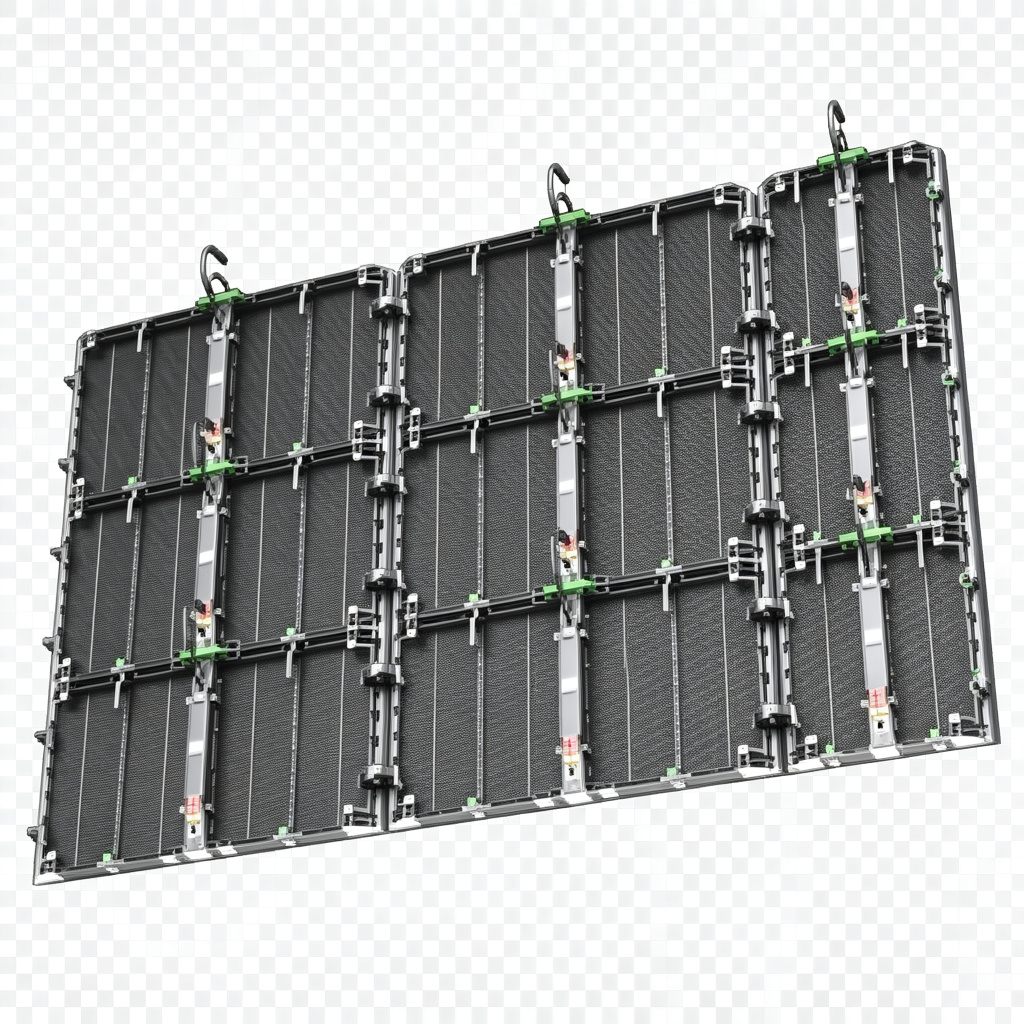

OL-CT curtain LED cabinet photos

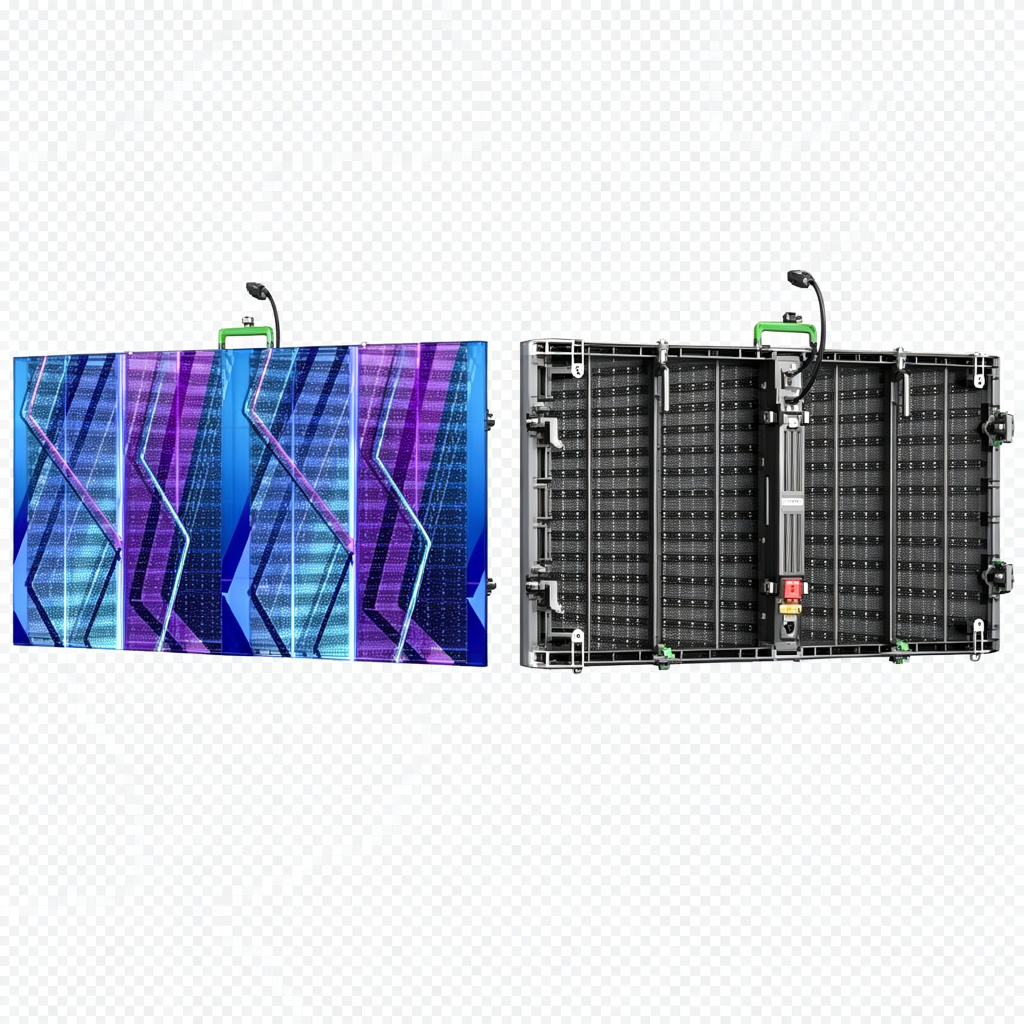

Real cabinet photos from our factory. Front, back, and side views of the modular transparent grid structure.
Why choose the OL-CT curtain LED?
Wind-Transparent Grid
The open grid passes wind through the screen, cutting wind load by 60-80% compared to a sealed LED wall. This matters on high-rise facades where structural reinforcement is expensive or impractical.
4,500 Nits Brightness
4,500 nits keeps the image readable in direct sunlight. A built-in light sensor dims the screen automatically after dark, which helps pass city light-pollution regulations and saves power.
4.5-7.5 kg Lightweight
The 500×500mm cabinet weighs 4.5 kg; the 1000×500mm cabinet weighs 7.5 kg. Two workers can hoist and install a facade screen without heavy lifting equipment.
IP65 Outdoor Rating
Fully sealed against rain, snow, and dust. Operates from -30°C to +60°C. Suitable for coastal and extreme weather locations.
Modular & Scalable
Standard cabinets tile horizontally and vertically. Build any size from a 5m storefront strip to a 1,000 sqm skyscraper facade.
Rear Service Access
Modules slide out from the rear. Technicians stand on a maintenance platform or gondola — no need to remove the whole screen.

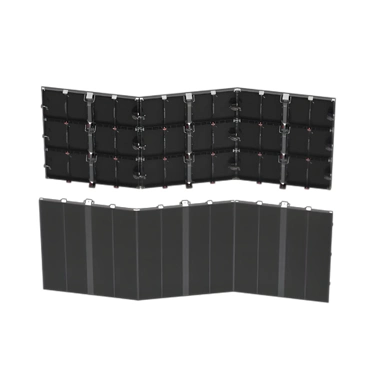

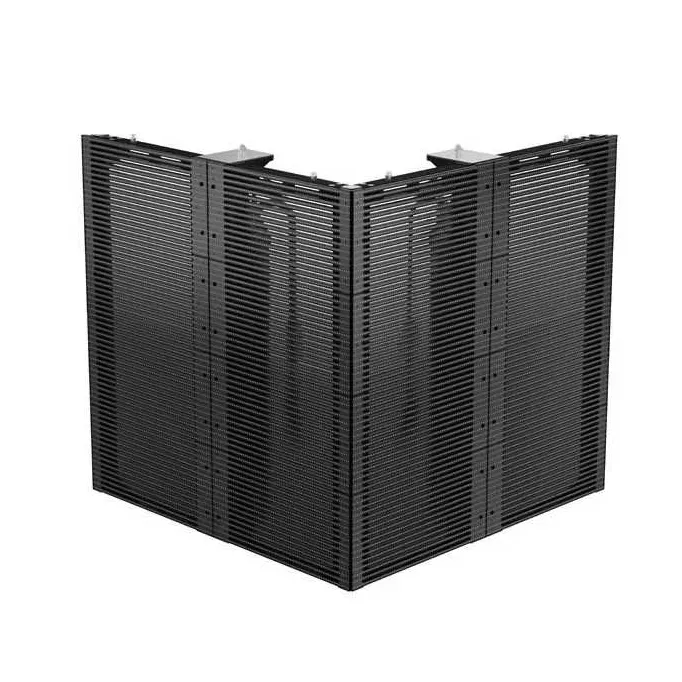

Curved & Right-Angle Installation
The cabinet connector pivots, so the screen can bend into an arc or lock at 90° corners. Wrap around building corners, cylindrical columns, or curved glass without custom cabinet fabrication.
Where OL-CT curtain LEDs are installed

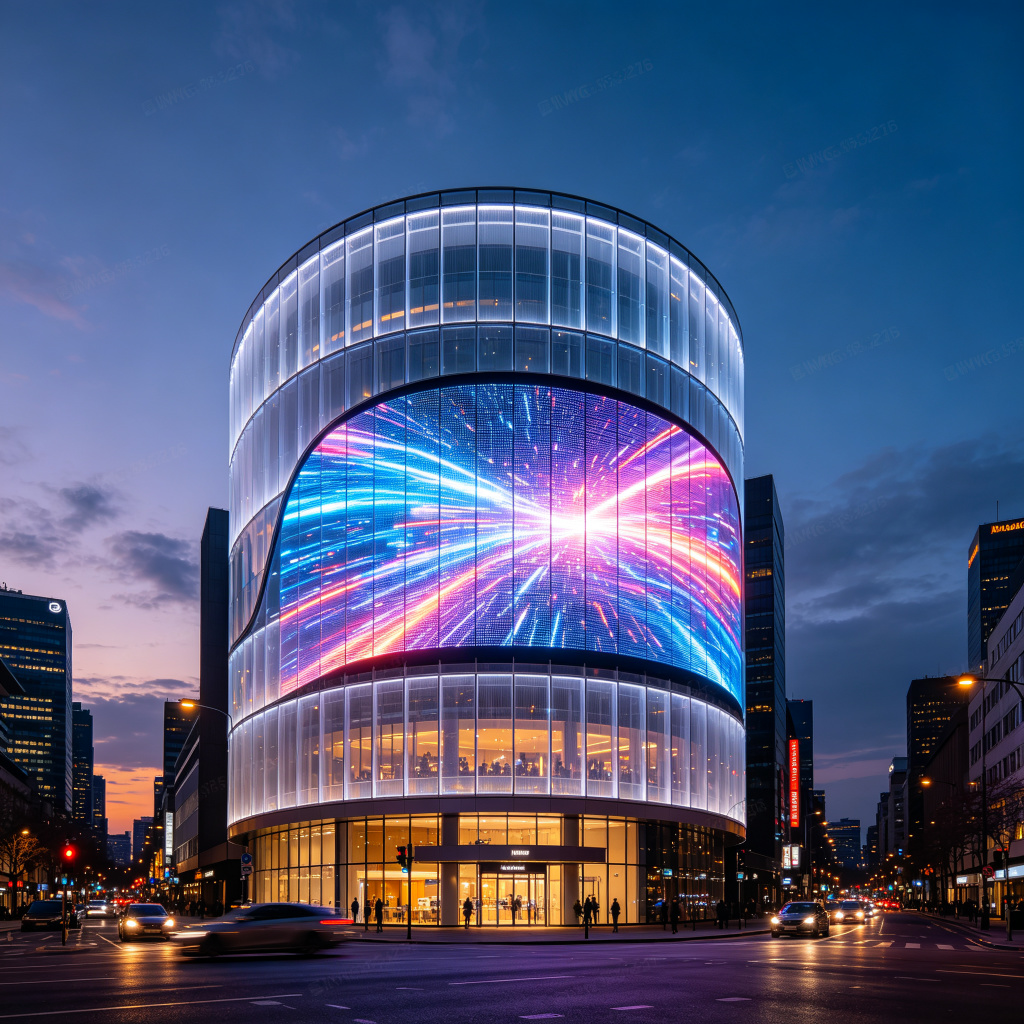

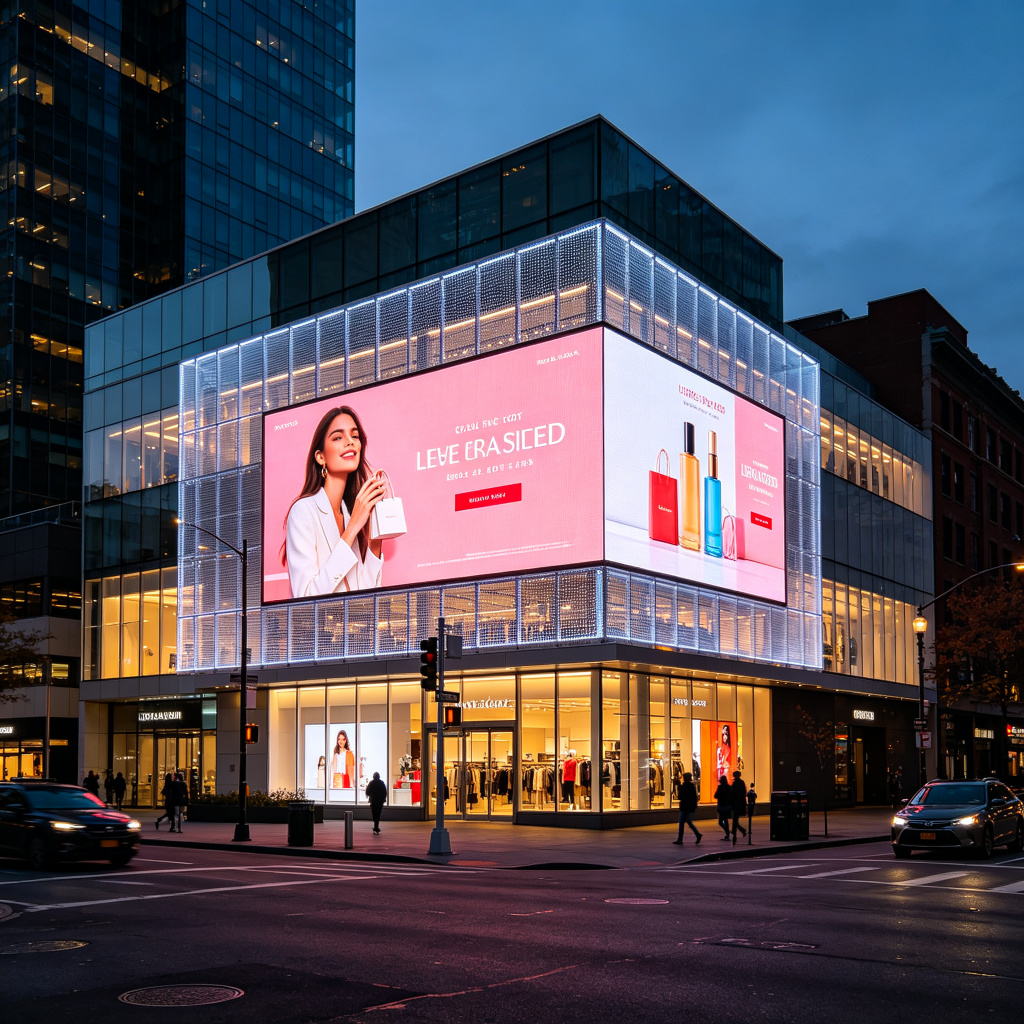

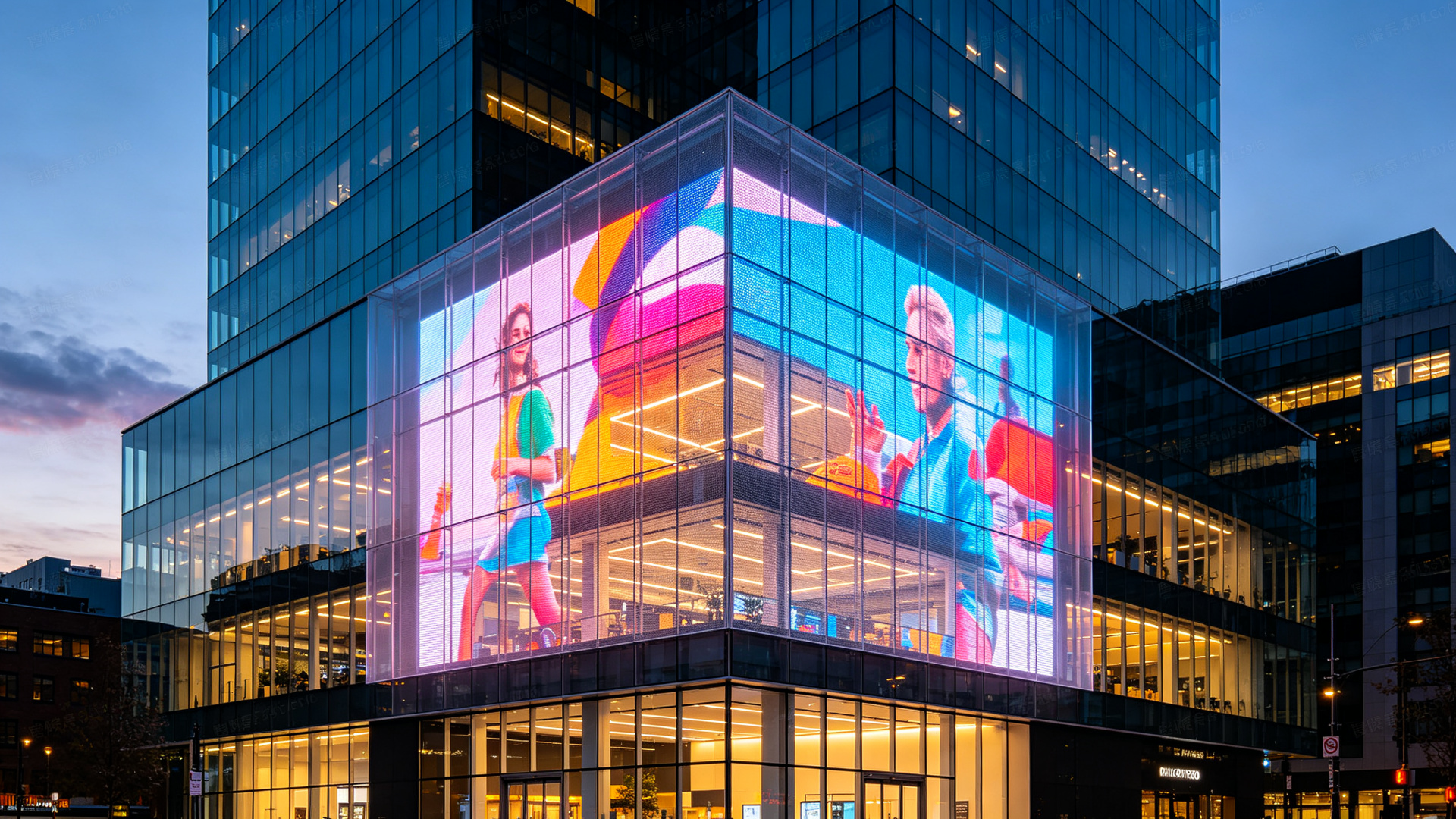

Building Facades
Wrap commercial towers, office buildings, and mixed-use developments with a transparent media facade. Natural light enters the glass during the day; at night the building exterior becomes a digital canvas for advertising, events, or brand messaging.

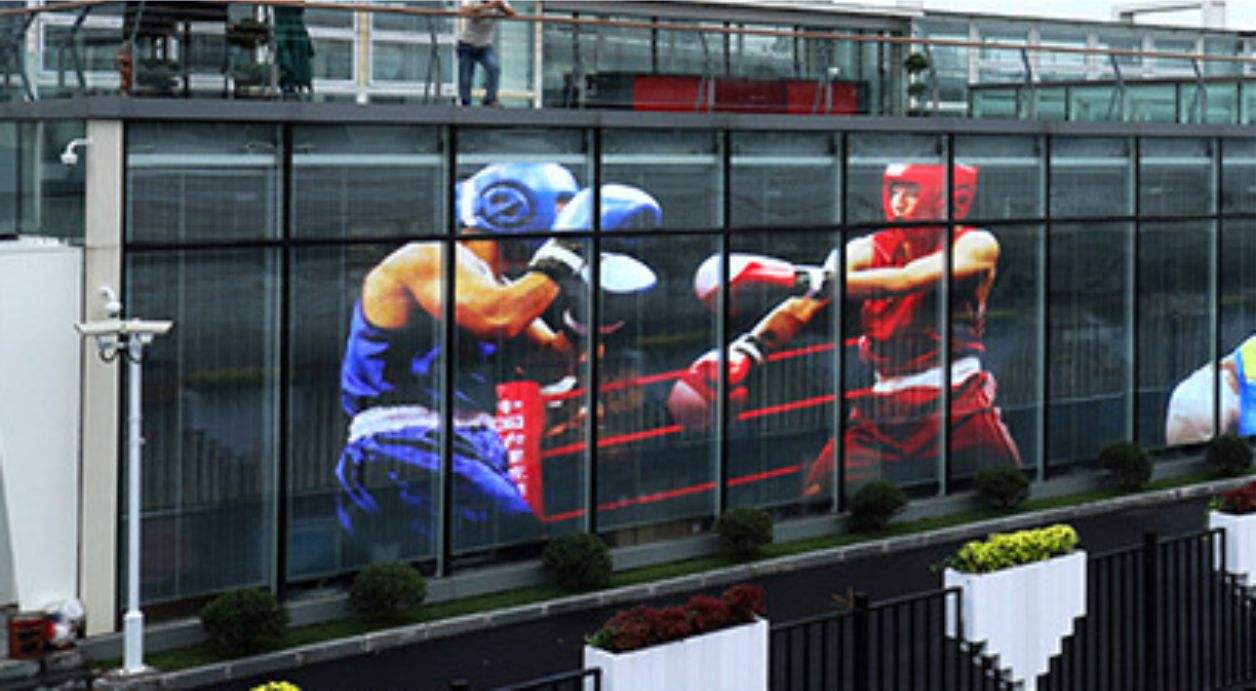

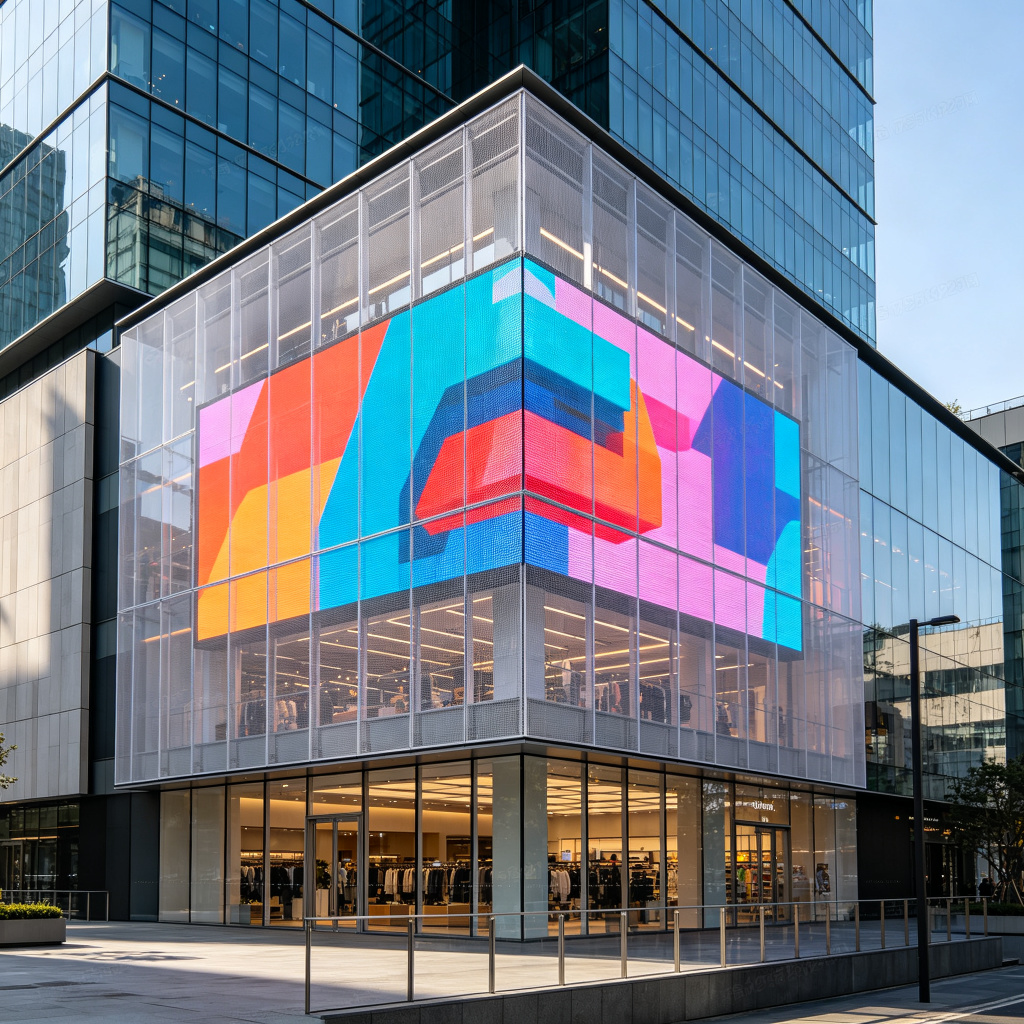

Shopping Malls
Mall exteriors, curved atriums, and entrance canopies benefit from the open grid. Cabinets follow curved glass corners without blocking sight lines or daylight inside.

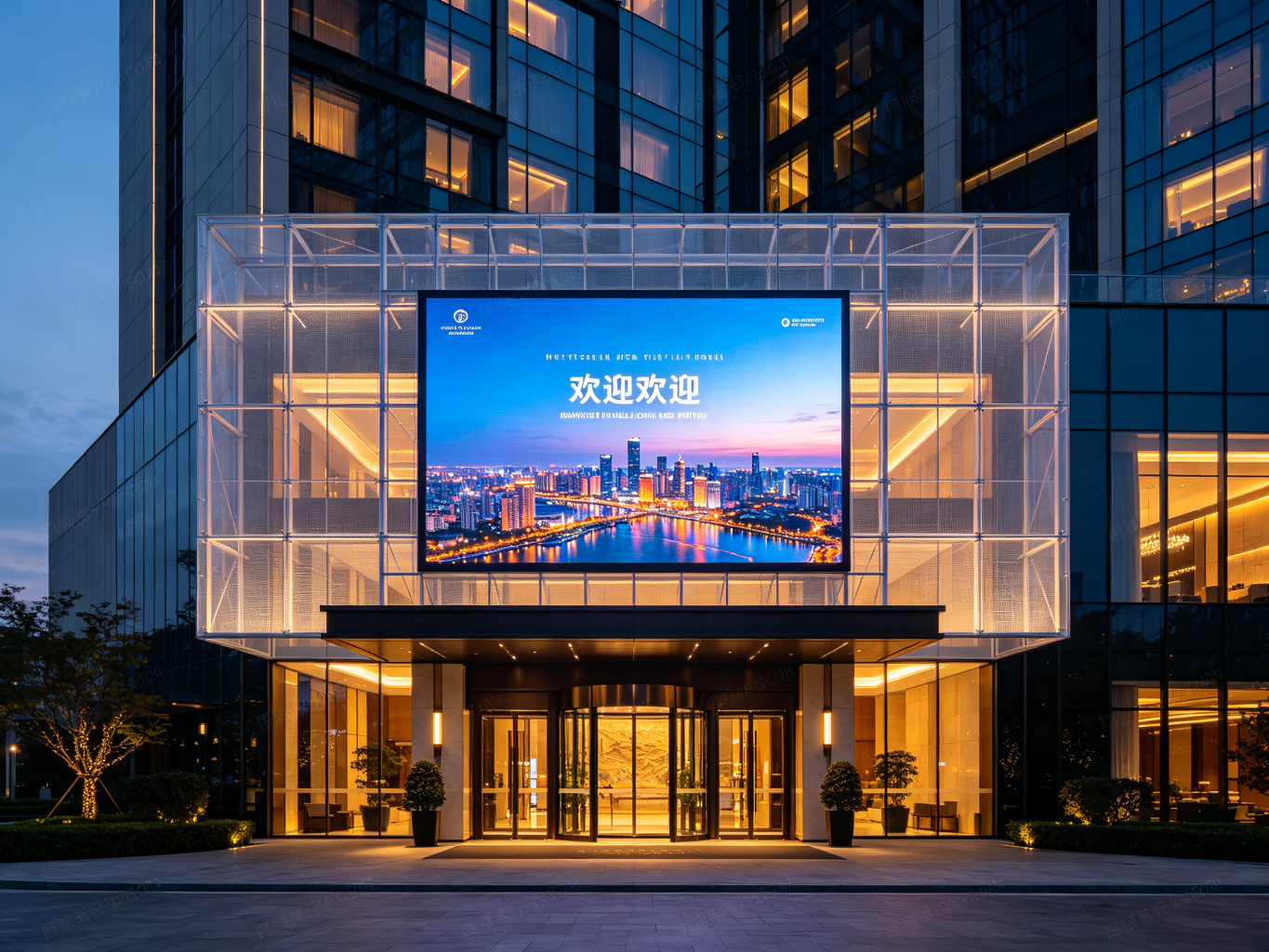

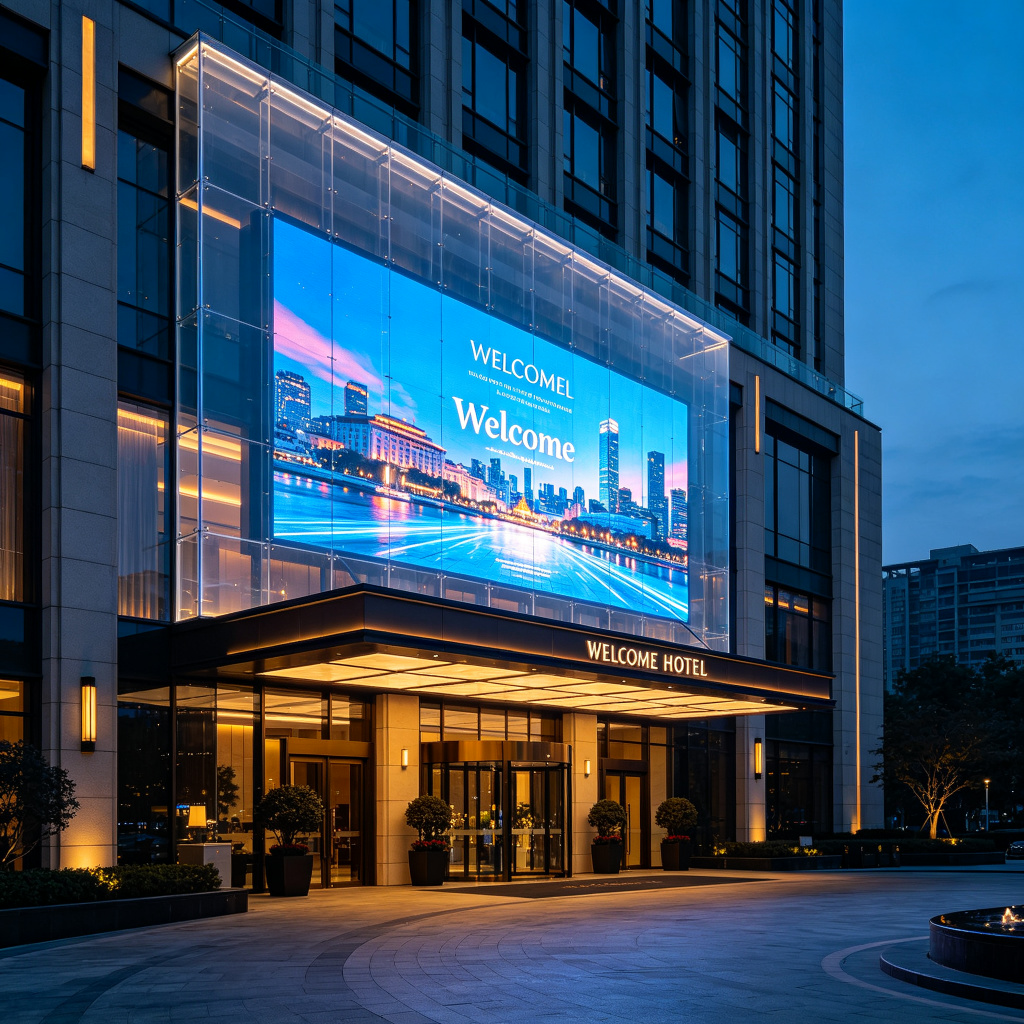

Airports & Hotels
Airport terminals, hotel entrances, and transport hubs use larger pixel pitches (P20-P31) for long viewing distances. Wide 140° viewing angles keep the message readable from side approaches.
OL-CT series specs
Four models available: P3.91-7.82 (500×500mm), P3.91-7.82 (1000×500mm), P5.2-10.4 (1000×500mm), and P10.4 (1000×500mm). 4,500 nits brightness, 3,840Hz refresh, 53%-65% transparency.
| Model | P3.91-7.82 (500×500) | P3.91-7.82 (1000×500) | P5.2-10.4 (1000×500) | P10.4 (1000×500) |
|---|---|---|---|---|
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
| Best Viewing Distance | 4 m | 4 m | 6 m | 10 m |
| Pixel Density | 32,768 px/m² | 32,768 px/m² | 18,432 px/m² | 9,216 px/m² |
| Module Size | 250×250 mm | 500×250 mm | 500×250 mm | 500×250 mm |
| Module Resolution | 64×32 | 128×32 | 96×24 | 48×24 |
| Cabinet Size | 500×500 mm | 1000×500 mm | 1000×500 mm | 1000×500 mm |
| Cabinet Material | Die-cast aluminum | |||
| Cabinet Weight | 4.5 kg | 7.5 kg | 7.5 kg | 7.5 kg |
| Brightness | 4,500 nits | |||
| Refresh Rate | ≥3,840 Hz | |||
| Driving Mode (Duty) | 1/8 scan | 1/8 scan | 1/4 scan | 1/2 scan |
| Transparency | 53% | 53% | 65% | 65% |
| Viewing Angle | 140° | |||
| Gray Scale | 14-bit | |||
| Power Supply | AC 100-240V, 50-60Hz | |||
| Max Power Consumption | 800 W/m² | |||
| Avg Power Consumption | 260 W/m² | |||
| Frame Frequency | ≥60 Hz | |||
| Operating Temperature | -20°C to +60°C | |||
Frequently asked questions
Get an OL-CT curtain LED quote
Send us your building dimensions, viewing distance, and target pixel pitch. We'll send a layout drawing and pricing within 24 hours.
