Factory-direct D6 LED display - drop-in replacement for 6-sheet LCD screens. 1219x1829mm, P1.9/P2.3, up to 6000 nits, IP65. OEM/ODM welcome. Since 2006.
Product details

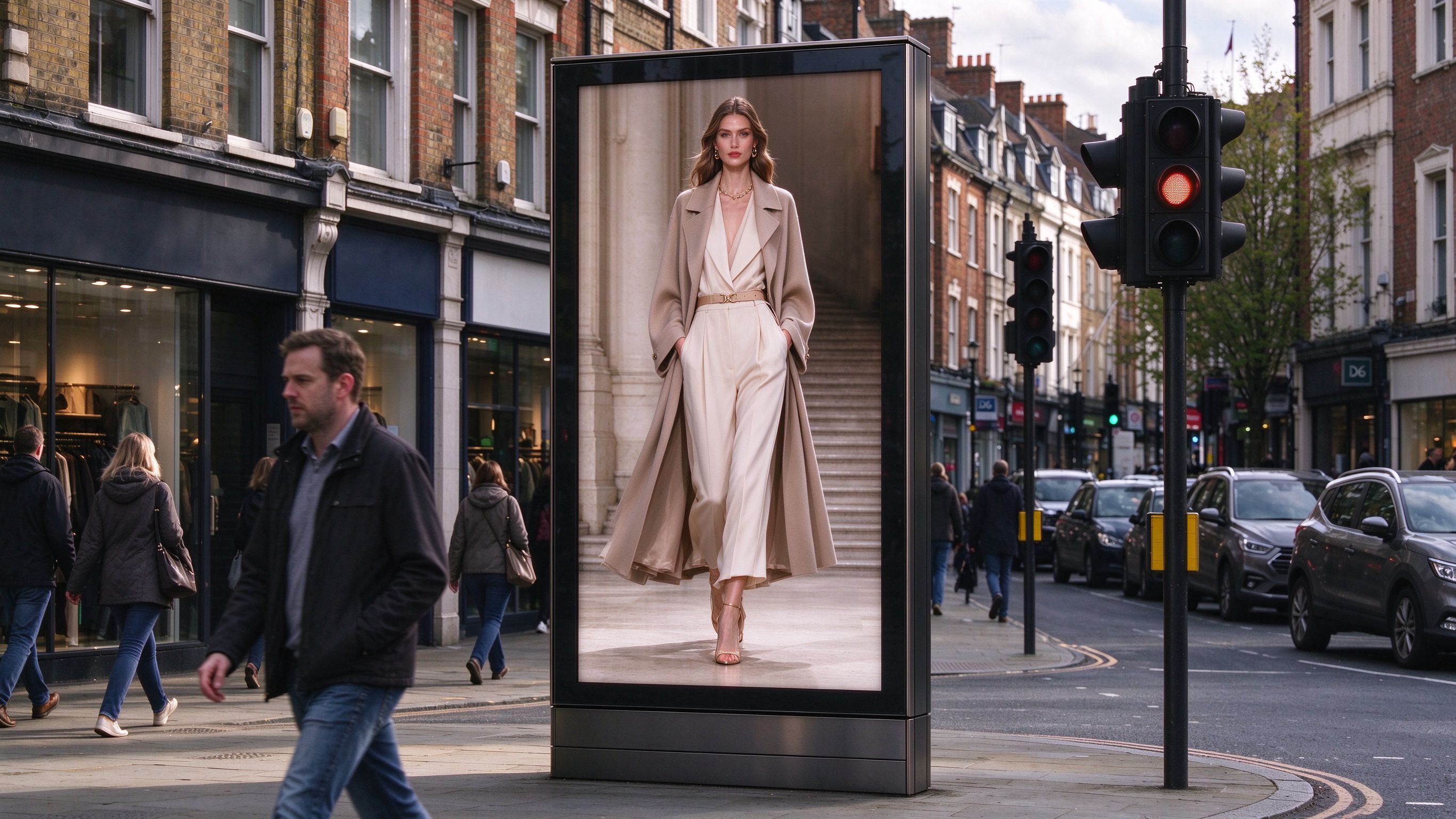

Roadside Digital 6-Sheet (D6)
LED Display Built to Replace LCD
We make the LED panels, the cabinets and the control systems in our own factory in Shenzhen. This D6 LED screen is designed as a straight drop-in upgrade for existing 6-sheet LCD advertising screens — brighter in daylight, no black bezel, and built to sell airtime.
Why D6 LCD screens lose to daylight
Most D6 advertising screens on UK streets today are LCD. In direct sunlight they wash out, and the black frame shrinks the visible picture. That is the problem this LED screen solves.
Brighter in sunlight
A typical D6 LCD panel peaks around 2,500 nits. Our LED panels run at 5,000–6,000 nits, so the picture stays visible and punchy even in full sun — no glare complaints from advertisers.
No black borders
LCD cabinets waste up to 30% of the opening on bezels. Our 304.8 × 609.6 mm LED modules tile edge-to-edge, giving a seamless 1219 × 1829 mm picture in the same opening.
Modular maintenance
Each module is front-serviceable — a technician swaps one panel in minutes without opening the cabinet or taking the screen down. Less downtime, lower running cost.
One screen size. Two pixel options.
Both versions use the same 304.8 × 609.6 mm LED modules, arranged 2-wide by 6-high — 12 modules, 2.23 m², matching the standard roadside D6 opening (4 × 6 ft) with no black bezel. We can also build other D6 cabinet sizes to your site drawing.
P1.9
For indoor concourses and short viewing distances where fine text and image detail matter most.
640 × 960 px resolution
- Pixel pitch
- 1.9 mm
- Pixel density
- ~277,000 px/m²
- Screen size
- 1219.2 × 1828.8 mm
- Active area
- 2.23 m²
- Brightness (outdoor)
- 5,000 nits
- Brightness (indoor)
- 1,000–2,000 nits
- Min. viewing distance
- ≥ 1.9 m
P2.3
Clear and economical for the usual D6 street viewing distances.
512 × 768 px resolution
- Pixel pitch
- 2.3 mm
- Pixel density
- ~189,000 px/m²
- Screen size
- 1219.2 × 1828.8 mm
- Active area
- 2.23 m²
- Brightness (outdoor)
- 6,000 nits
- Brightness (indoor)
- 1,000–2,000 nits
- Min. viewing distance
- ≥ 2.3 m
Built to your opening: this D6 LED line is made to order in our Shenzhen factory. Before quoting, we confirm the site opening size against your existing D6 LCD structure — the 4 × 6 ft format fits the standard, but cabinet details vary by operator and location. Send us your drawing and we will engineer the drop-in cabinet.
Made to run 24/7 on the street
One cabinet platform covers indoor and outdoor use. The differences are the IP rating, brightness and light sensor — the core components stay the same, so spares and service are simple.
IP65 front / IK10
IP65 front, IP54 rear and IK10 impact rating for exposed street placements. Indoor builds drop to IP20 with standard sealing.
Filterless cooling
No fans, no filters, no weekly cleaning. Natural convection keeps it quiet and maintenance-free from −30 °C to +50 °C.
Linux embedded control
A Linux player with no end-of-life Windows or Android bloat. The same control platform we already ship on thousands of bus and transport displays.
4G · LAN · Wi-Fi + SNMP v3
Dual connectivity for content delivery and remote monitoring, with SNMP v3 for your NOC. Same CMS integration as our bus-display project.
Auto-dimming + redundancy
An ambient light sensor adjusts brightness by time of day, and dual players keep the screen alive if one unit fails.
Content-ready 1080×1920
A native 9:16 portrait canvas at 1080×1920 px. JPG, PNG and MP4 (H.264) all play, so existing 6-sheet creative keeps working.
UKCA · CE · FCC · RoHS
Certified for UK and EU markets, with a 5-year warranty and real after-sales support from the factory — not a trading company.
OEM / ODM / Private label
Your brand on our hardware. Cabinet size, brightness, CMS and even the logo on the bezel are configurable for your network.
Buy direct from the manufacturer
Shenzhen Only Optoelectronic has been making LED displays in our own factory since 2006. When you deal with us, you deal with the people who design, build and support the screen — no trading-company markup.
Factory since 2006
Two decades of LED display manufacturing — modules, cabinets, power and control systems all assembled in-house in Shenzhen.
Your brand, our build
White-label and private-label programs: your logo on the cabinet, your CMS integration, your warranty terms. We keep the production line.
Direct support
Spares, firmware and technical support straight from the factory. For a D6 network running 24/7, that matters more than the price difference.
One screen, every street location
Roadside D6, bus shelters, transport hubs and retail streets — the same module line covers an entire D6 network, indoor and outdoor.

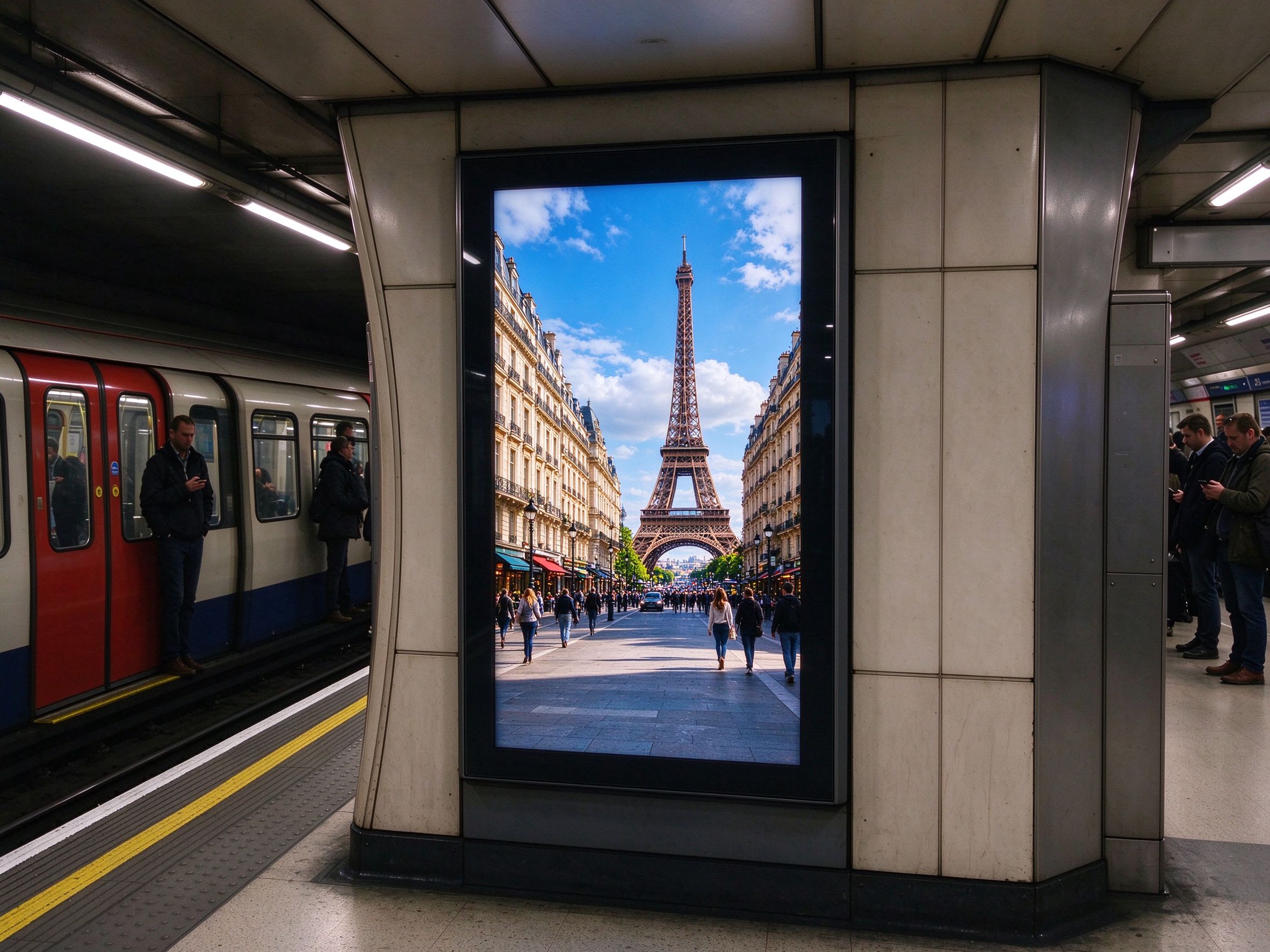

Metro & rail stations
Long dwell times and controlled light — fine pitch P1.9 works well at close range.

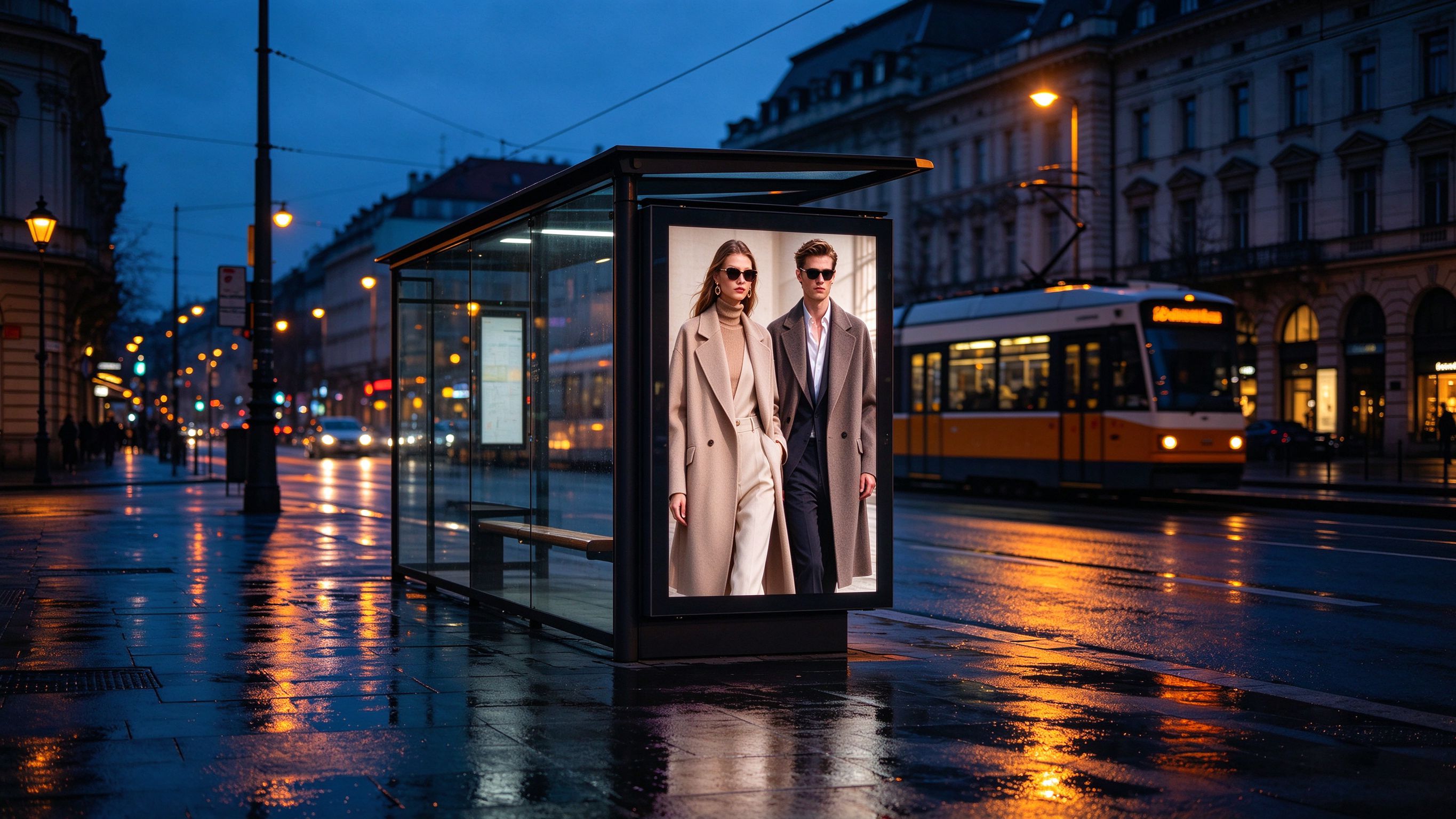

Bus shelters
Up to 6,000 nits cuts through street glare — the classic D6 placement.

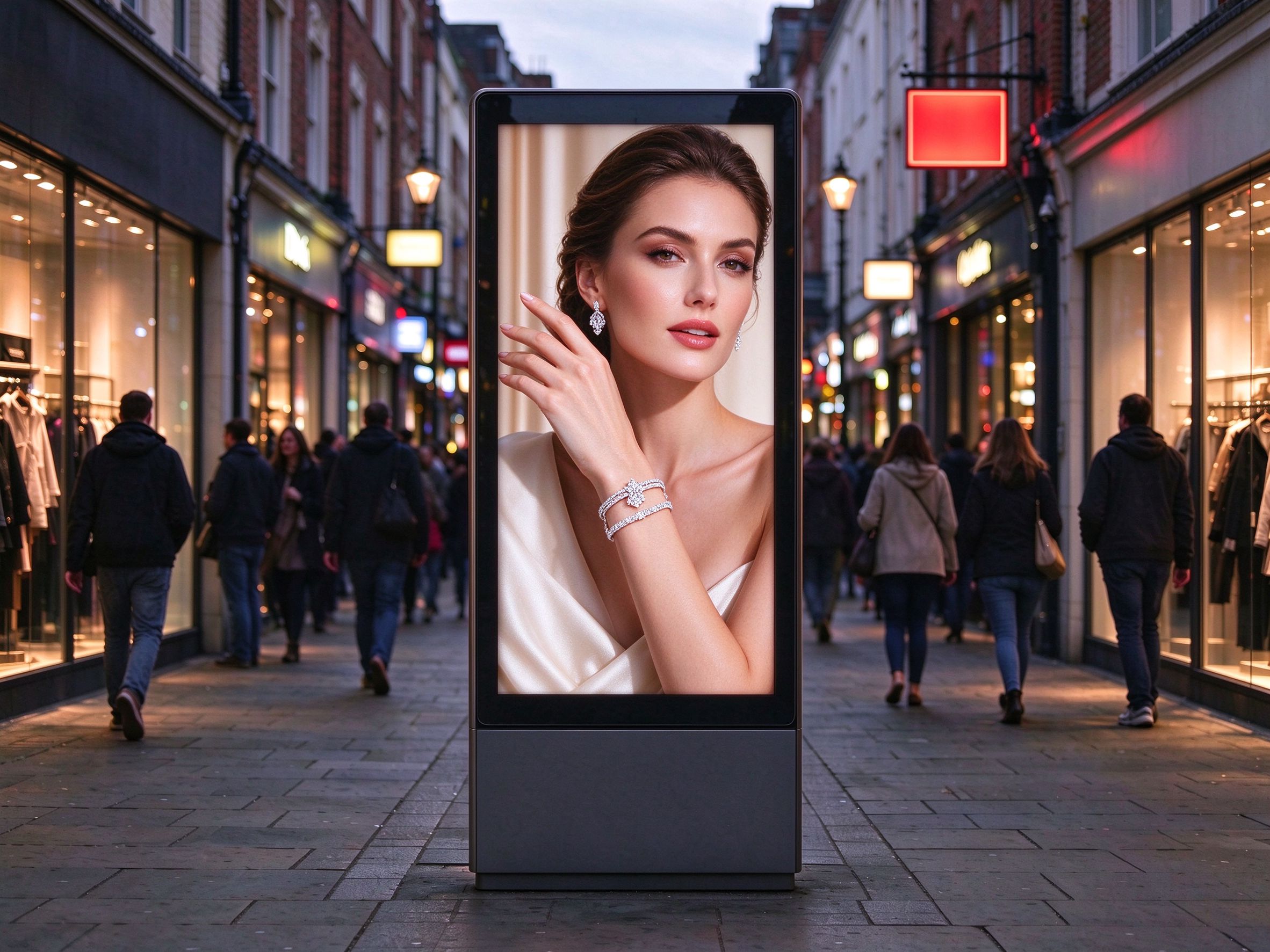

High street & retail
Slim totem builds bring motion and colour to storefronts and malls.

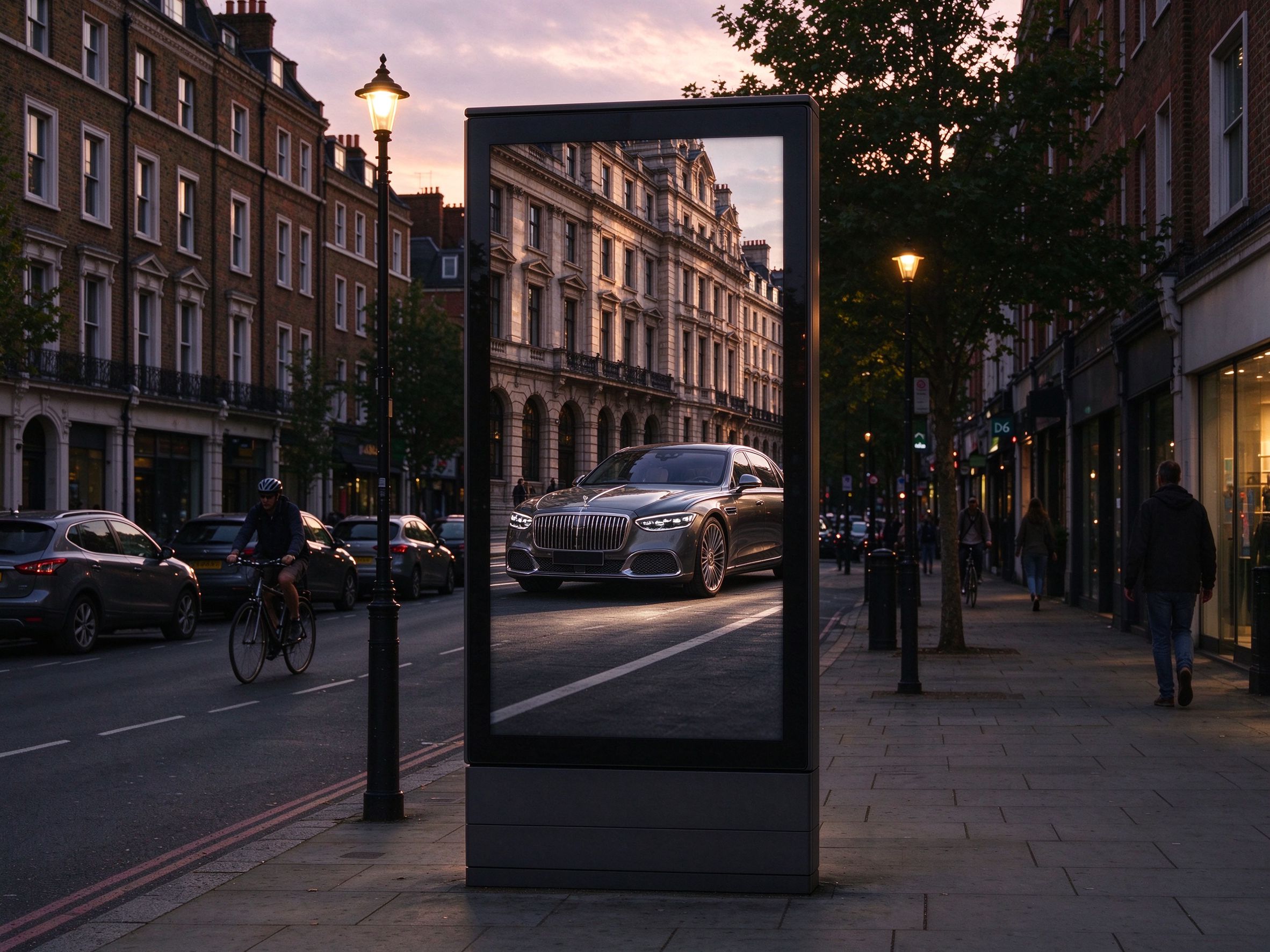

Roadside & freestanding
Weatherproof IP65/IK10 builds for exposed street and kerbside placements.
D6 LED vs the D6 LCD in service
How the ONLYLED D6 LED cabinet compares with a typical 75-inch class D6 LCD screen currently in service.
| Parameter | ONLYLED D6 LED | Typical D6 LCD | Gain |
|---|---|---|---|
| Peak brightness | 5,000–6,000 nits | ~2,500 nits | 2× more |
| Visible image area | 1219 × 1829 mm edge-to-edge | ~928 × 1650 mm with bezel | ~30% more area |
| Sealing / impact | IP65 / IK10 | IP65 / IK08 | Higher impact |
| Cooling | Filterless convection | Fans + filters to clean | Less upkeep |
| Player platform | Linux embedded | Windows 7 Embedded (EOL) | Secure & supported |
| Remote monitoring | SNMP v3 + 4G/LAN/Wi-Fi | Basic / SNMP | Full telemetry |
| Warranty | 5 years | 2 years | Longer coverage |
D6 LED display FAQ
What is a roadside digital 6-sheet (D6) display?
D6 is the standard vertical DOOH format, roughly 1.2 m wide by 1.8 m high (4 × 6 ft), mounted at eye level in bus shelters, on totems and in transport hubs. Historically these used LCD panels; this page is about replacing them with LED.
Will your LED screen fit my existing D6 structure?
The standard build is 1219.2 × 1828.8 mm — the 4 × 6 ft D6 opening. Because cabinet details vary by operator and site, we confirm your actual opening size and drawing before quoting, and engineer a drop-in cabinet around your existing frame.
Which pixel pitch should I choose, P1.9 or P2.3?
Choose P1.9 (640 × 960) for indoor concourses or close viewing distances where fine text matters. Choose P2.3 (512 × 768) for standard street D6 viewing distances at a more economical price. Both use the same cabinet and modules.
How bright does an outdoor D6 LED screen need to be?
For direct sunlight you want 5,000 nits or more. Our outdoor build runs at 5,000 nits (P1.9) and 6,000 nits (P2.3), with an ambient light sensor for automatic dimming at night. Indoor builds run at 1,000–2,000 nits.
Can you build the screen under our brand (OEM / ODM / private label)?
Yes. We are the manufacturer — Shenzhen Only Optoelectronic, factory since 2006. We can put your logo on the cabinet, integrate your CMS and player software, and package under your brand. Sample units are produced before mass production.
What is the warranty and support?
A 5-year warranty, with spare modules, firmware and technical support supplied directly from our Shenzhen factory. UKCA, CE, FCC and RoHS certification are included.
Planning a D6 LCD to LED upgrade?
Send us your current screen structure and site dimensions — our engineers will design a drop-in LED cabinet for your exact D6 opening, with OEM / ODM options if you want your own brand on it.
