- ONLYLED
- CHINA
- 1000units
Premium BROMPTON SYSTEM LED SCREEN with P1.9 fine-pitch carbon fiber cabinet. Brompton R2 control, GOB protection, 7,680Hz refresh. Ideal for broadcast, live events and high-end rental.
Product details
BROMPTON SYSTEM LED SCREEN
P1.9 Fine-Pitch · Carbon Fiber Cabinet · GOB Protection · Brompton R2 Control
Powered by Brompton R2
The only choice for premium LED screens. Brompton delivers industry-leading processing, color uniformity, and reliability that rental houses and broadcast houses trust worldwide.
BROMPTON-Powered Performance
Brompton R2 Control System
This premium LED screen runs on the industry-leading Brompton R2 receiving card — the gold standard for high-end rental and broadcast applications. Experience unmatched color accuracy, pixel-perfect processing, seamless multi-screen integration, and full compatibility with Brompton's entire ecosystem including Tessera S processors and LXT tiles.

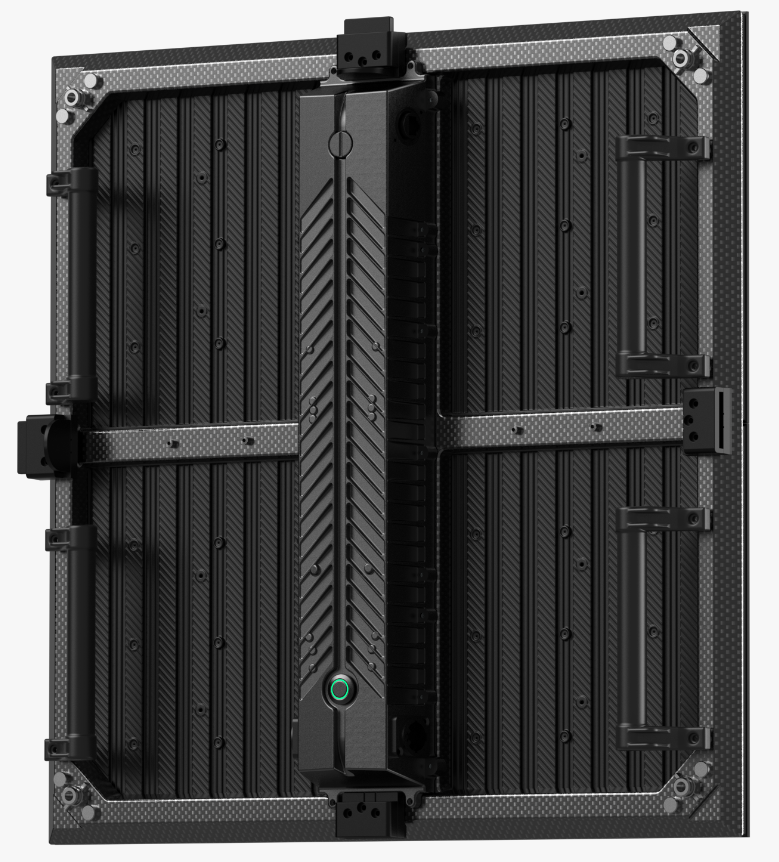

Carbon Fiber Cabinet
Weighing only 18 kg/m², the carbon fiber cabinet is exceptionally light yet rigid — easy to handle, transport, and assemble on rental sites. The premium carbon weave ensures structural durability with minimal weight.
GOB Protection
Glue-on-Board encapsulation fully covers the LED surface, providing superior protection against impact, moisture, and static. The display surface appears perfectly smooth and nearly invisible at close viewing distances.
High Refresh & 22-bit Gray
With ≥7,680 Hz refresh rate and 22-bit gray scale, the display produces flicker-free, smooth imagery that passes professional camera and broadcast scrutiny — ideal for live events and streaming.
Hard-Wired Module Connection
Modules use hard-wired connections instead of FPC cables, eliminating loose cables and signal loss. This improves reliability and simplifies maintenance in demanding rental environments.
Ultra-Fine Pitch 1.95 mm
262,144 pixels per square meter delivers stunning close-up clarity. Perfect for boardrooms, broadcast studios, command centers, and premium rental events where audiences view from 2 meters or closer.
Cabinet Dimensions
Build Quality
250×250 mm modules (2×2 per cabinet) · Carbon fiber frame · Precision fast locks
Technical Specifications
| Specification | Value | U.S. Customary |
|---|---|---|
| Product & Module | ||
| Model | LS-PH1.95-ISS | — |
| Pixel Pitch | 1.95 mm | 0.077 in. |
| Module Size | 250 × 250 mm | 9.84 × 9.84 in. |
| Module Resolution | 128 × 128 pixels | — |
| Module Configuration | 2 × 2 | — |
| LED Protection | GOB (Glue-on-Board) | — |
| Module Connection | Hard-wired | — |
| Cabinet | ||
| Cabinet Size | 500 × 500 × 67 mm | 19.69 × 19.69 × 2.64 in. |
| Cabinet Resolution | 256 × 256 pixels | — |
| Pixel Density | 262,144 pixels/m² | 24,341 pixels/ft² |
| Cabinet Material | Carbon Fiber | — |
| Weight | 18 kg/m² (with fast locks & GOB) | 3.68 lb/ft² |
| Display Performance | ||
| LED Type | SMD1415 | — |
| Brightness | 800–1,000 nits | — |
| Contrast Ratio | 10,000:1 | — |
| Viewing Angle | 160° H / 160° V | — |
| Gray Level | 22-bit | — |
| Driving Method | 1/16 Scan | — |
| Refresh Rate | ≥ 7,680 Hz | — |
| Frame Rate | ≥ 60 Hz | — |
| LED Lifetime | 100,000 hours | — |
| Pixel Failure Rate | < 0.0001% | — |
| Electrical | ||
| Max Power Consumption | ≤ 650 W/m² | — |
| Average Power Consumption | ≤ 280 W/m² | — |
| Input Voltage | 100–240 VAC, 50–60 Hz | — |
| Environmental | ||
| Operating Temperature | −30°C ~ +50°C | −22°F ~ +122°F |
| Storage Temperature | −40°C ~ +80°C | −40°F ~ +176°F |
| Operating Humidity | 10–90% RH | — |
| IP Rating | IP30 (Indoor) | — |
| Control & Video | ||
| Control System | BROMPTON (R2 Receiving Card) | — |
| Video Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI | |
Note: Specifications may vary slightly by configuration. Please confirm final specifications before ordering.
