Professional church LED walls and LED video displays for sanctuaries and houses of worship. P2.5 pixel pitch, GOB protection, 3840Hz refresh. Get a quote today.
Product details

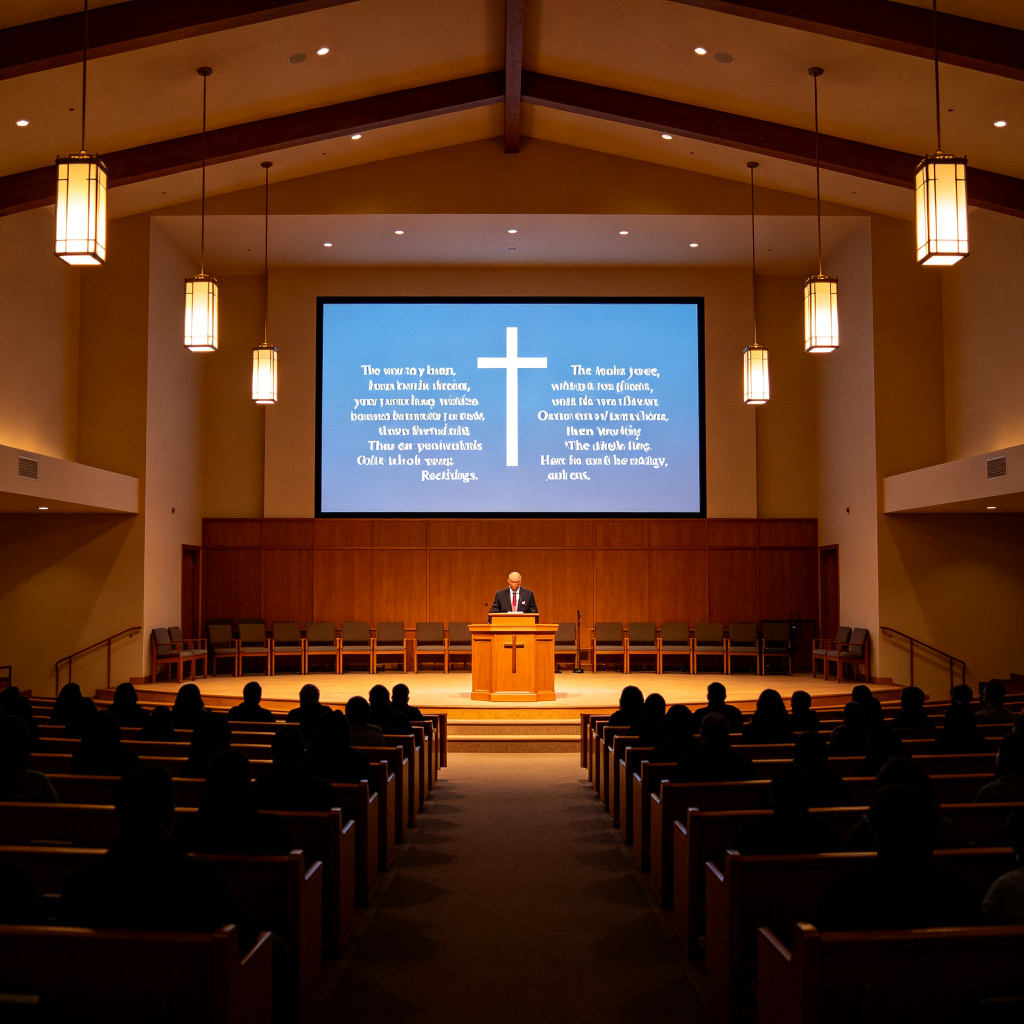

More than a screen — it's part of the service
Churches and houses of worship are replacing traditional projection with LED video walls for one reason: the congregation sees and hears every word clearly, every time.
Bright Even Light, No Washout
650 nits of uniform brightness works in dim sanctuaries and well-lit chapels alike. No projector washout, no hot spots, no dark corners.
Crisp Text & Lyrics
High-resolution P2.5 pitch renders song lyrics, Bible verses, and announcement text sharp from every seat in the sanctuary — even the back row.
Reliable, Quiet Operation
Solid-state LED panels with low fan noise. Built to run through every Sunday service without flickering, dimming, or surprising the congregation.
Easy Content Management
Works with ProPresenter, EasyWorship, and any HDMI source. Change lyrics, announcements, or live video from the sound booth in seconds.
GOB Protection
Glob encapsulation coating protects every LED from dust, moisture, and accidental contact — essential in a public space that sees children, volunteers, and event setups.
Fast Installation
Die-cast aluminum cabinets with quick-lock magnets. Hang it, lock it, done. No custom fabrication, no weeks of installation.
Engineered for worship spaces
Every cabinet is die-cast aluminum, GOB-protected, and quick-lock ready. Built for the room behind it as much as the image on it.

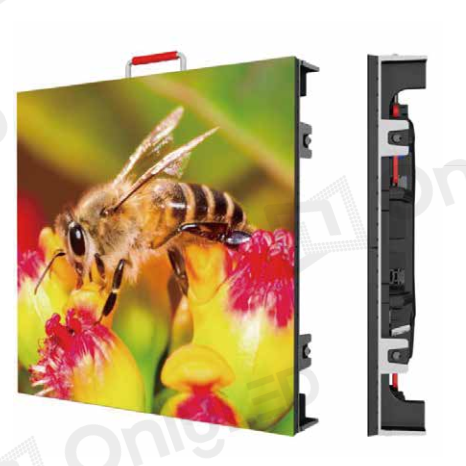

LUXE-SPECTRA P2.5 Indoor LED Video Wall
Built on the LUXE-SPECTRA platform. Shown configuration: 1.5m x 2.5m (4.9ft x 8.2ft) wall, but available in any size to fit your sanctuary.
| Display Size | 1,500mm x 2,500mm (4.9ft x 8.2ft) |
|---|---|
| Pixel Pitch | 2.5mm |
| Model Number | LS-PH2.5-ISS |

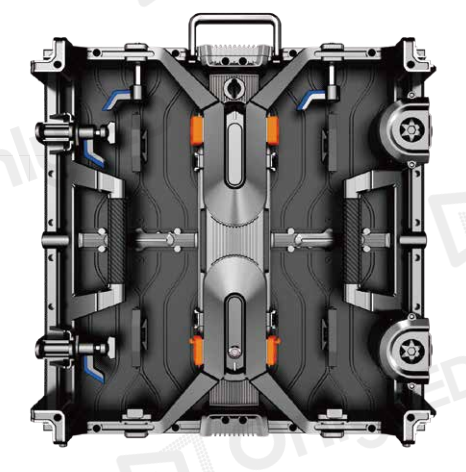

| Cabinet Size | 500mm x 500mm, die-cast aluminum |
| Cabinet Qty | 15 pcs (3 high x 5 wide) |
| Resolution | 600 x 1,000 pixels |
| Pixel Density | 160,000 pixels / m² |
| LED Type | SMD1515 copper-wire LEDs with GOB protection |
| Brightness | ≥650 cd/m² (dimmable for sanctuary lighting) |
| Refresh Rate | ≥3,840Hz (camera-friendly, no flicker) |
| Viewing Angle | 140° horizontal / 120° vertical |
| Driving Method | 1/25 scan |
| Control System | Novastar TU15-PRO (dual-mode) included |
| Power Input | 100–240V AC, 50/60Hz |
| Max Power Draw | 9A @ 120V (280W/m² peak) |
| Environment | Indoor, 0–40°C operating temperature |
| Lifetime | ≥100,000 hours |
| Warranty | 2 years |
Everything you need to install
No hidden extras. Every quote ships as a complete, ready-to-hang system.
15 x LED Cabinets (500x500mm)
GOB-protected P2.5 panels in flight cases
Novastar TU15-PRO Controller
Dual-mode processor with HDMI input
Spare Modules & Cables
5 spare GOB modules, spare power supply, receiving card, signal and power cables
Flight Case Packaging
2 padded flight cases included for safe shipping and storage
Hanging Frame
Steel mounting frame with integrated hanging points
DDP Shipping to USA
Door-to-door ocean freight from Shenzhen to your location, duties included
20 years of manufacturing. One person you can trust.
Since 2006, ONLY LED has built indoor and outdoor LED displays for churches, schools, businesses, and government projects across North America. We are the factory — not a trading company.
Established
20 years of LED display manufacturing
Warranty
Full system warranty included
Lead Time
From order to your doorstep
US Delivery
Duties and freight included
Ready to upgrade your sanctuary?
Tell us your wall size, viewing distance, and room layout. We'll send a recommended configuration and pricing within 24 hours.
