2ft x 1ft Outdoor LED Display– Ultra-Bright 6.35mm Pixel Pitch for Digital Signage
- ONLYLED
- CHINA
- 2500pcs
- 2500pcs
Premium 2ft x 1ft outdoor LED display panel (6.35mm). 10,000 nits brightness, IP66 fanless design, 30% energy saving. ETL & FCC certified. Get a free quote!
Product details
Product Overview

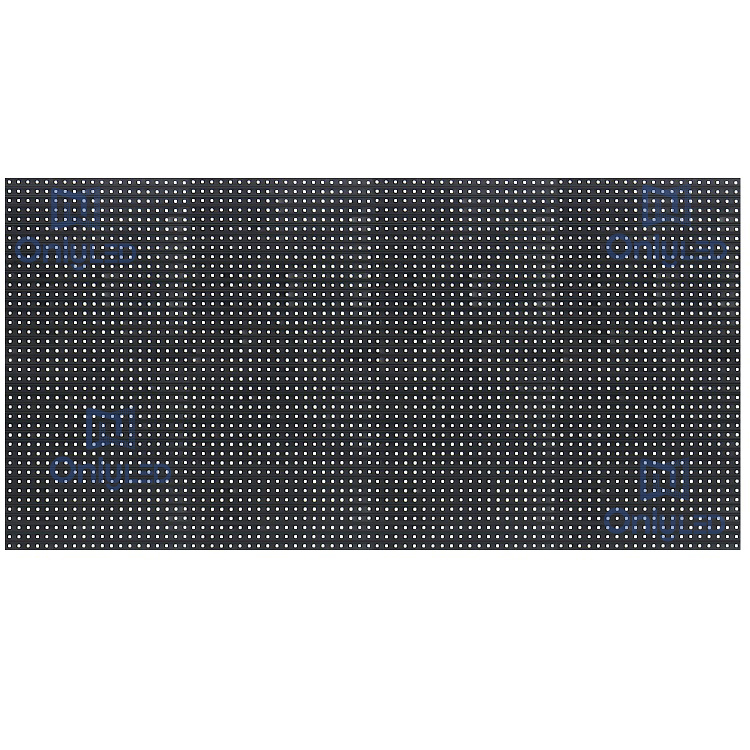

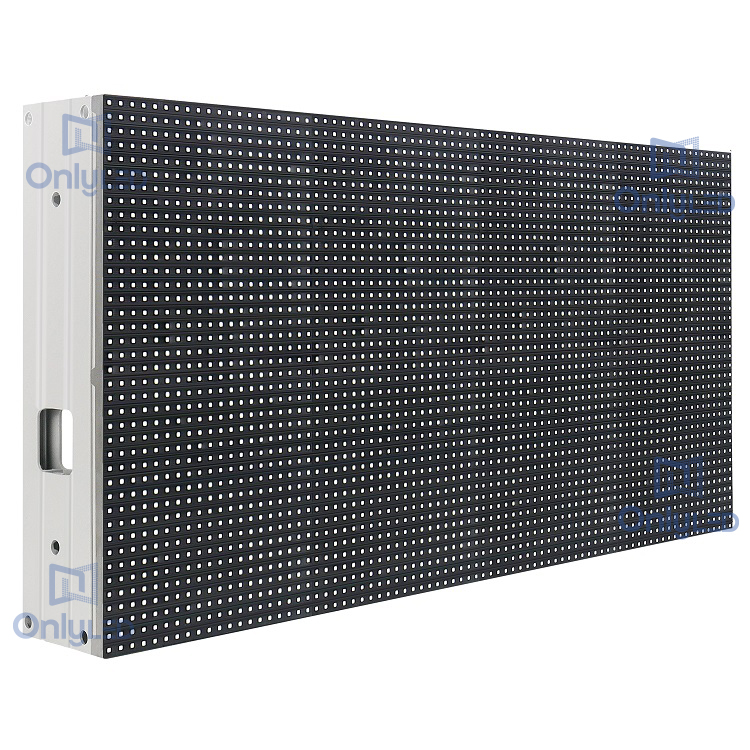

The ONLYLED Skyline Series Premium Outdoor LED Display is an industry-leading digital signage solution engineered specifically for the North American market. Featuring a standard 1x2ft (12" x 24") LED panel dimension, this 6.35mm pixel pitch LED screen is the perfect choice for retrofitting conventional back-lit signs into high-definition digital displays.
Delivering an ultra-high brightness of 10,000 nits and an IP66 ingress protection rating, the Skyline Series ensures flawless visibility in direct sunlight and harsh weather conditions. Backed by multiple global patents, ETL listing, and a 6-year warranty, ONLYLED provides a reliable, energy-efficient, and highly profitable outdoor LED advertising solution.
Key Features & Benefits
Perfect 1x2ft Size for the US Market & Sign Retrofitting
Designed with the exact dimensions of 12" x 24" (1x2ft), this LED panel perfectly fits standard US sign structures. It is the ideal solution for upgrading and retrofitting traditional back-lit billboard and commercial signs into vibrant digital LED displays without altering the existing structural footprint.
10,000 Nits Brightness & 30% Energy Saving
Equipped with SMD2727 3-in-1 Common Cathode LED lamps, the Skyline Series achieves a maximum brightness of 10,000 cd/m², ensuring crystal-clear visibility even under direct sunlight. The advanced common cathode technology reduces power consumption by up to 30% compared to traditional common anode LED screens, significantly lowering operational costs and improving ROI.
IP66 Fanless Design & Superior Heat Dissipation
Reliability is at the core of the Skyline Series. The LED panel housing is constructed from die-casting aluminum with a fully sealed, fanless design, achieving an IP66 rating. The driving IC is directly attached to the aluminum plate, ensuring excellent heat dissipation. This uniform temperature distribution eliminates color-splotches and ensures consistent, uniform brightness across the entire screen.
Modular Mounting Frames for 30-Minute Quick Assembly
ONLYLED provides highly integrated, CNC-machined aluminum modular mounting frames (available in die-casting and extruded options). These precision-cut frames allow for seamless splicing and enable customers to assemble a standard 4x8ft LED sign in just 30 minutes, drastically reducing labor costs and installation time.
Front & Rear Service with Smart Cloud Control
The versatile cabinet design supports both front and rear maintenance, as well as vertical and horizontal orientation installations. Every panel features a built-in receiving card supporting chromatic and brightness calibration. Users can easily manage the display via remote control and monitoring, pushing content directly from a cloud server via Wi-Fi or 4G.
Applications
The ONLYLED Skyline Series is highly versatile and suitable for a wide range of outdoor commercial applications:
- Digital Billboard & Highway Advertising
- Retail Storefront Digital Signage & Video Walls
- Retrofitting Conventional Back-lit Signs
- Pole-mounted, Roof-mounted, and Wall-mounted Displays
- Mobile LED Trailers & Double-sided Street Displays
Technical Specifications
| Parameter | Specification |
| Model Number | UP-PH6.35-CDS (Common Cathode LEDs) |
| Pixel Pitch | 6.35mm (Also available in 3.8mm, 7.6mm, 9.5mm) |
| LED Panel Size | 1x2ft (12" x 24") |
| Resolution per Panel | 48 x 96 pixels |
| Pixel Density | 24,800 pixels/㎡ |
| LED Lamp | SMD2727 3-in-1 Common Cathode LEDs |
| Max Brightness | ≥ 10,000 cd/m² (nits) |
| Ingress Protection | IP66 (Fully sealed, fanless) |
| Cabinet Material | Die-casting Aluminum |
| Average / Max Power | 40W / 133W per panel |
| Driving Method | 1/4 Scan |
| Refresh Rate | ≥ 3000 Hz |
| Viewing Angle | H: 110° / V: 90° |
| Grey Scale / Colors | 16-bit / 16.7 Million colors |
| Weight | 6.5 kgs (14.3 lbs) |
| Service Access | Front Service / Rear Service |
| Input Signal | RF, S-Video, RGB, RGBHV, YUV, YC, Composite |
| Control System | Colorlight / Novastar |
| Power Supply | Dual Voltage (90~240 VAC, 50/60 Hz) |
| Operating Temp. | -30℃ to 60℃ |
| Certifications | ETL (Intertek), FCC, CE, EMC-A |
| Warranty | 6 Years |
Note: Minimal running gears, reduced cables, and highly integrated power/data connectors (power and data in one cable) ensure maximum functional stability and high reliability.
Certifications & Quality Assurance
Safety and compliance are paramount for outdoor installations in North America. The ONLYLED Skyline Series LED sign modules are ETL listed by Intertek Laboratory and FCC approved. Our rigorous quality control ensures a malfunction rate of less than 0.0001, providing you with a dependable digital signage investment.
OEM & Customization Services
ONLYLED is a professional LED display manufacturer offering comprehensive OEM services. Whether you require specific pixel pitches, custom branding, or tailored mounting solutions, our engineering team is ready to support your unique project requirements.
Frequently Asked Questions (FAQ)
H3: What is the difference between 2ft x 1ft and 1ft x 2ft LED panels?
Both terms refer to the same panel dimensions (24" x 12"). "2ft x 1ft" typically indicates horizontal orientation (landscape), while "1ft x 2ft" suggests vertical orientation (portrait). Our panels support both orientations with flexible mounting options.
H3: How does common cathode LED technology save 30% energy?
Common cathode design separates the red, green, and blue LED power supplies, allowing each color to operate at its optimal voltage. This reduces wasted energy as heat, lowering power consumption by up to 30% compared to traditional common anode displays.
H3: Is IP66 sufficient for outdoor LED displays?
Yes. IP66 rating means the display is completely dust-tight and protected against powerful water jets from any direction. Combined with our fanless, fully sealed aluminum design, it provides superior reliability for outdoor installations. IP68 (submersion protection) is unnecessary for signage applications and often adds cost without practical benefit.
H3: Can I retrofit my existing back-lit sign with these LED panels?
Absolutely! The 2ft x 1ft (12" x 24") size is specifically designed to match standard US sign dimensions. Our modular mounting frames allow you to replace fluorescent or LED back-lit panels with digital LED displays without modifying the sign structure.
H3: How long does installation take?
With our CNC-machined modular mounting system, a trained installer can assemble a complete 4x8ft LED sign in approximately 30 minutes. This is 75% faster than traditional LED display installation methods.
H3: What is the viewing distance for 6.35mm pixel pitch?
The optimal viewing distance for P6.35mm is 20-100 feet. For closer viewing (12-50 feet), consider our P3.81mm option. For longer distances (30-200 feet), P9.525mm may be more cost-effective.
H3: Do you provide installation support?
Yes. We offer:
- Detailed installation manuals and video tutorials
- Remote technical support via phone, email, or video call
- On-site installation training for large projects (additional fee)
- Recommended installer network in North America
H3: What certifications do these LED panels have?
Our 2ft x 1ft outdoor LED displays are:
- ETL listed by Intertek (US safety standard)
- FCC approved (electromagnetic compliance)
- CE certified (European conformity)
- EMC-A compliant (electromagnetic compatibility)
- RoHS compliant (hazardous substance restriction)
H3: What does the 6-year warranty cover?
Our comprehensive warranty includes:
- LED lamps and driving ICs
- Power supplies and receiving cards
- Cabinet materials and structural components
- Color uniformity and brightness degradation
- Technical support and replacement partsExcludes damage from improper installation, natural disasters, or unauthorized modifications.
H3: Can I control multiple displays remotely?
Yes. Each panel has a built-in receiving card with cloud connectivity options:
- Wi-Fi control for locations with internet access
- 4G/LTE modem for remote sites without Wi-Fi
- Centralized management for multiple displays
- Real-time status monitoring and alerts
- Content scheduling and playlist management
H3: How does the fanless design affect performance?
Our fanless design provides several advantages:
- Zero noise – ideal for noise-sensitive areas
- No moving parts – nothing to wear out or fail
- No dust accumulation – fans don't pull debris inside
- Lower maintenance – no fan replacements needed
- Better reliability – sealed electronics protected from elements
H2: Order Your 2ft x 1ft Outdoor LED Display Today
Ready to upgrade your outdoor signage with the ONLYLED Skyline Series? Contact us now for:
✅ Free project consultation and site assessment
✅ Competitive pricing and bulk discounts
✅ Fast shipping from US warehouse
✅ Technical support before, during, and after installation
✅ 6-year warranty for peace of mind
✅ Competitive pricing and bulk discounts
✅ Fast shipping from US warehouse
✅ Technical support before, during, and after installation
✅ 6-year warranty for peace of mind
Lead time: 2-3 weeks for standard orders | Rush orders available
