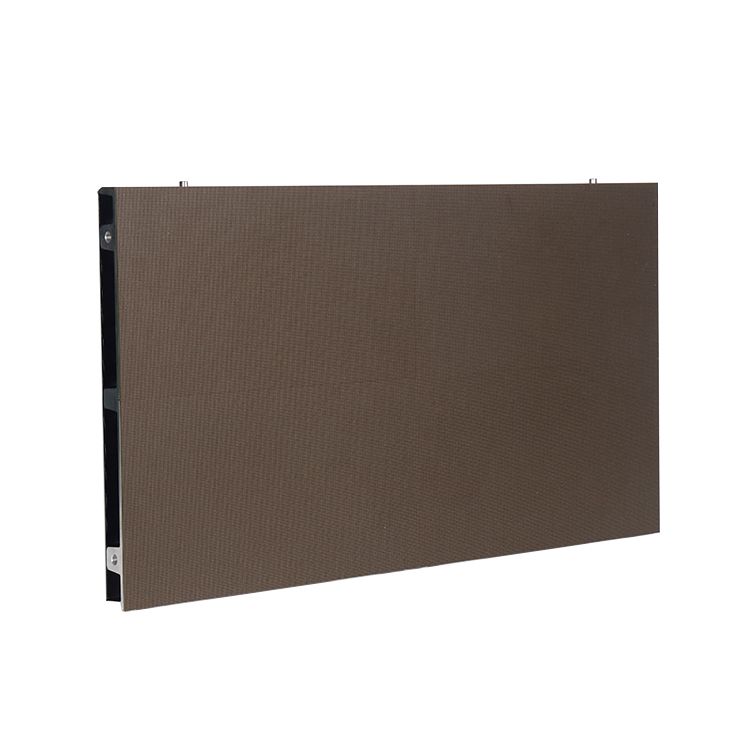

Fine pitch 1.8mm LED screen.Slim LED panel size, 600x337mm, the golden aspect ratio 16:9, suitable for making 2K 4K and 8K LED screens.Ultra light-weight and thin Die-casting aluminium cabinet, high p
Product details
Fine pitch 1.8mm LED screen.Slim LED panel size, 600x337mm, the golden aspect ratio 16:9, suitable for making 2K 4K and 8K LED screens.Ultra light-weight and thin Die-casting aluminium cabinet, high precision die casting aluminum cabinet with internal lockers make seamless splicing joint.Signal cables and power cables run inside of the cabinets. No external visible cables which looks more clean.
1.Product introduction
. 337x600mm aluminium LED cabinet, the golden aspect ratio 16:9.suitable for making 2K 4K 8K displaying
effect without compression .
. 160° super wide viewing angle indoor LED screen
. High gray level make the display images more vivid.
. High refresh LED screen with frequency more than ≥3,500hz makes the display with no flickers when take photos
. Support front access installation of the led modules, save installation time and maintenance time.
. Aluminium cabinet processed by high precision CNC machine,truly seamless splicing and excellent alignment.
. Dual backup power supplies and receiving cards, ensures no disruption during the working hours of the video screen.
. Five years warranty on this product from date EX-factory
2.Product feature and applications
. 337*600mm LED cabinet, made of aluminium,High precision and seamless splicing.
. Light- weight cabinet only 4.5KGS ,22.5kgs per square meter.
. All cables and connectors hidden inside of the cabinet,no cable external of the screen.
. LED Panel depth is only 32mm,the best in the indoor fine pitch led display industry.
. High brightness 800 to 1200cd/m2 ,high refresh rate 3000HZ and wide viewing angles 160 degrees.
. One uniform cabinet have several pixel pitches for clients choices.0.9mm, 1.25mm, 1.56mm and 1.87mm.
. Customized LED cabinet size 337*300mm, meet more requirements to videowall sizes.
. Cabinet can be installed in both portrait way and landscape way.
. Screen cane be installed directly onto wall with bolts or using a wall-mount-bracket
. All LED modules and other electronic components are fully front serviceable.
. Dual backup of signal and powers for customers options
3.Product parameters
| Model Number | H-PH1.87-ISC |
| Working Environment | Indoor |
| Installation Type | Fixed installation |
| Installation Access | Front Access |
| Pixel Pitch | 1.87mm |
| Cabinet Dimensions (HxWxD)/（mm） | 337×600 x32mm |
| Module size (HxW)/（mm） | 168.75mm×300mm |
| Cabinet material | Aluminum |
| LED lamp | Mini LED or SMD1515 |
| Pixel matrix per cabinet | 180×320 pixels |
| Brightness (cd/㎡) | 800 to 1200 |
| Driving Type | 1/30 SCAN |
| MAX power consumption（W/㎡） | 600W |
| Average power consumption（W/㎡） | 100 to 300W |
| Cabinet weight (kgs) | 4.5kgs |
| Control system Brand | Novastar &Colorlight |
| Color Grayscale (Bit) | 16 |
| Gray Scale per Color （level) | 65536 |
| Refresh Rate（Hz） | ≥3000Hz |
| Calibration | Brightness calibration and chromatic calibration |
| Optimal Horizontal Viewing Angle（°） | 160 |
| Optimal Vertical Viewing Angle（°） | 140 |
| Power supplies | 4.2V60A |
| AC Input Voltage（V） Frequency（Hz） | 90~240 VAC 50/60 hz |
| Operating Humidity and Storage Humidity（RH） | 10﹪~95﹪ |
| Certifications | CE , FCC |
| Warranty | 5 years |
