Shenzhen, China – [JAN. 23 2026] – Shenzhen Only Optoelectronic Technology Co., Ltd., a professional LED display manufacturer with global reach, officially announces the worldwide release of the PM-E Prime Elite Series, a premium indoor fine-pitch LED display solution designed around one core advantage: true custom-sized LED cabinets.

Unlike conventional indoor LED displays limited by fixed cabinet dimensions, the PM-E Series is engineered to adapt precisely to real-world architectural spaces. With a standardized 320mm cabinet height and fully scalable width options, the PM-E Series delivers seamless visual performance while eliminating wasted space, visible gaps, and complex structural modifications—making it an ideal choice for high-end commercial, corporate, and institutional applications.

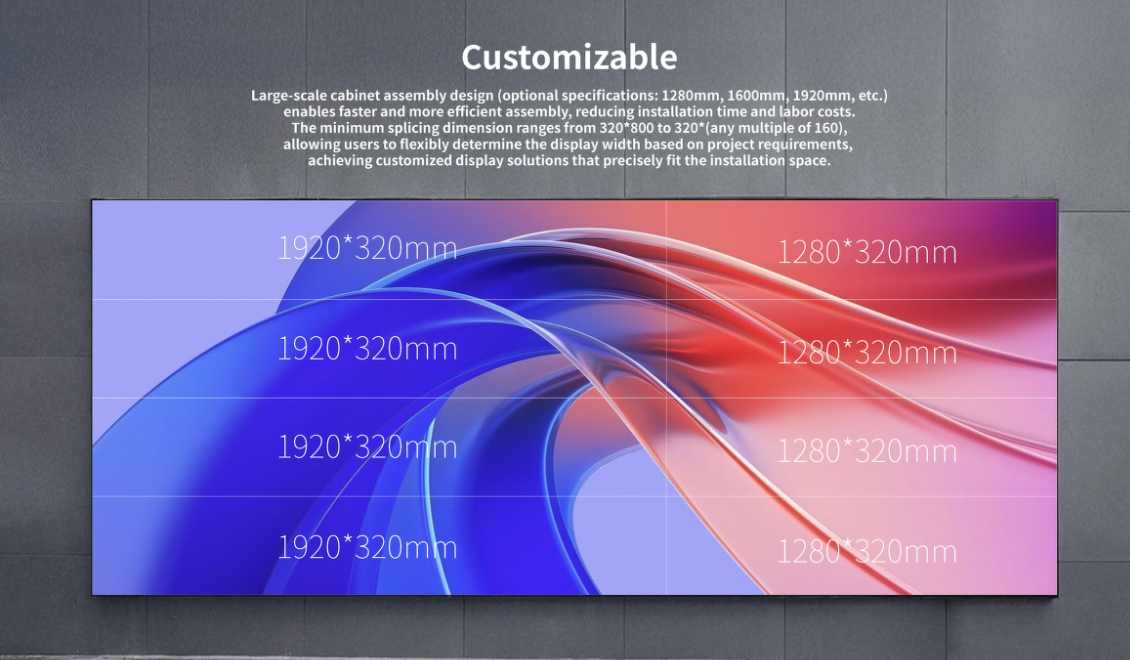

Custom-Sized LED Cabinets Based on a 320mm Height System

At the heart of the PM-E Series is a modular cabinet system built on a 320mm fixed height, enabling unmatched flexibility while maintaining structural integrity and visual uniformity. This design allows integrators and end users to achieve pixel-perfect installations for both standard and irregular indoor spaces.

Available Cabinet Width Options

Pre-engineered cabinet widths include:

• 320×800mm – Ideal for narrow walls, meeting rooms, and kiosks

• 320×960mm – Flexible size for classrooms and hotel corridors

• 320×1160mm – Optimized for non-standard wall dimensions

• 320×1280mm – Popular lightweight option (approx. 8kg)

• 320×1440mm – Expanded visual area for brand displays

• 320×1600mm – Suitable for conference halls and retail spaces

• 320×1760mm – Custom-fit solution for multifunction venues

• 320×1920mm – Large-format cabinet (approx. 11kg) for control rooms and video walls

For projects requiring precise sizing, cabinet widths can also be customized in multiples of 160mm, ensuring seamless coverage with no cutting, filler panels, or visual compromise.

Standard Cabinet Configurations for Fast Deployment

To support rapid installation and standardized projects, the PM-E Series also offers ready-made cabinet formats:

• 1280×320mm (8kg) – Balanced size for most indoor applications

• 1920×320mm (11kg) – Designed for large seamless video walls

• Optional 1600×320mm – Mid-range solution for retail and hospitality

All cabinets are constructed from high-strength extruded aluminum, combining ultra-lightweight handling with excellent flatness and durability—significantly reducing installation time and labor costs.

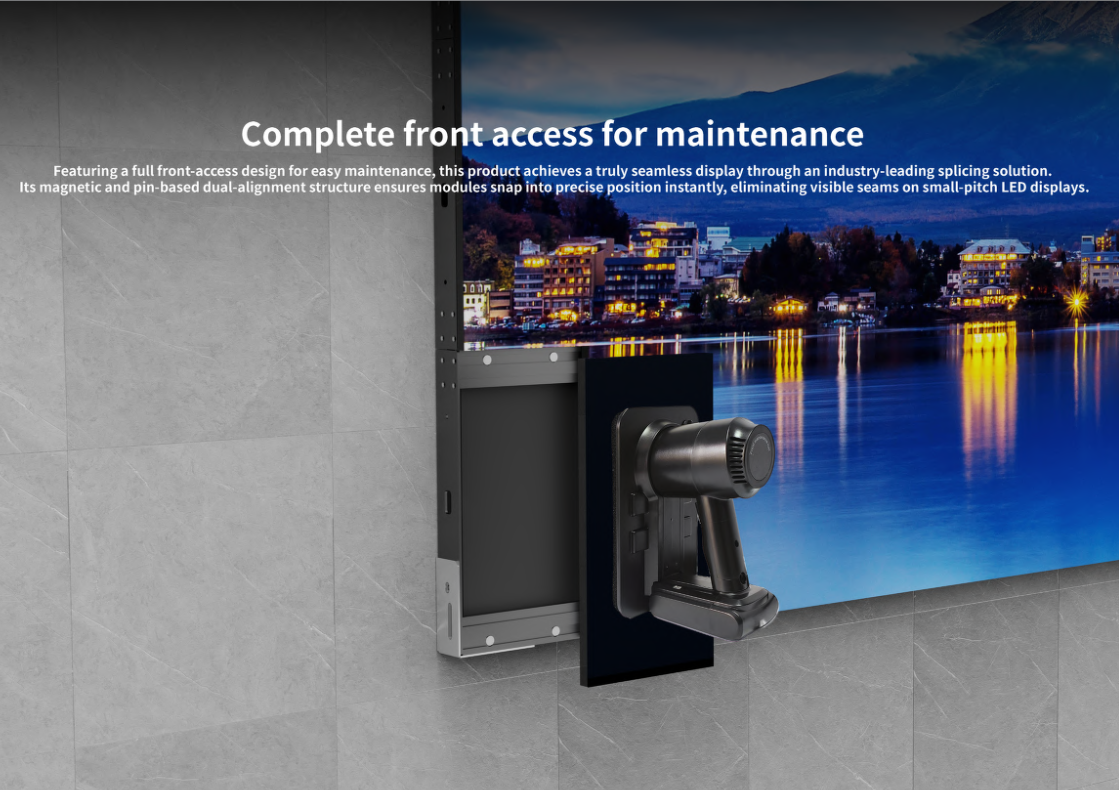

Front Access, Seamless Splicing, Easy Maintenance

The PM-E Series is engineered for professional environments where space, accuracy, and maintenance efficiency matter:

• Seamless cabinet splicing using magnetic positioning and precision locating pins

• Full front-access maintenance, ideal for wall-mounted or recessed installations

• Tool-free modular design for fast assembly and servicing

• Lightweight cabinets, even at large sizes, for easier handling and safer installation

These features make the PM-E Series especially suitable for embedded walls, narrow spaces, and high-end interiors.

High-Performance Indoor Display Technology

The PM-E Series delivers premium visual quality expected from a flagship fine-pitch LED display:

• Full HD / 4K / 8K seamless display capability

• High contrast ratio up to 10,000:1

• 14–16bit grayscale with smooth color transitions

• 3840Hz refresh rate for flicker-free viewing

• Matte, anti-glare surface for eye comfort

Multiple packaging technologies are available to meet different durability requirements:

• SMD for cost-effective fine-pitch performance

• GOB for enhanced surface protection and durability

• COB for maximum impact resistance, moisture protection, and long-term stability

With high-efficiency driving technology, the PM-E Series offers low power consumption and a service life of up to 100,000 hours, reducing total ownership costs.

Simplified Control & Flexible Installation

• Self-developed control system supporting 2K signal via a single HDMI cable

• Reduced cabling complexity and installation cost

• Multiple installation methods: wall-mounted, floor-standing, suspended, and dual-sided

• Optional customizable PVC foam board backing for branding or advertising integration




Technical Overview (PM-E Series)

• Pixel Pitch Options: P1.25 / P1.53 / P1.86 / P2.5

• Module Size: 320×160mm

• Cabinet Height: 320mm

• Custom Width: 800–1920mm + multiples of 160mm

• Brightness:

• SMD: up to 1000 nits

• GOB: up to 800 nits

• COB: up to 650 nits




Ideal Applications

The PM-E Prime Elite Series is designed for high-end indoor environments, including:

• Government meeting rooms and command centers

• Corporate conference rooms and lecture halls

• Hotels, ballrooms, and event venues

• Retail brand stores and showroom displays

• Broadcast studios and control rooms

• Education facilities and training centers

• Churches and auditoriums
